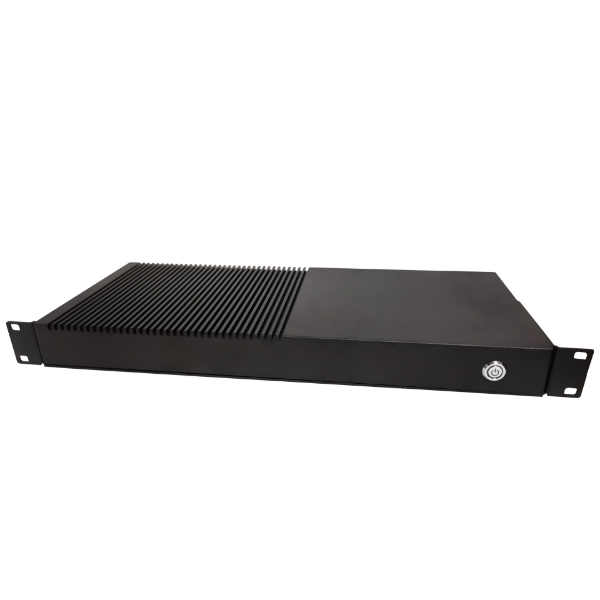

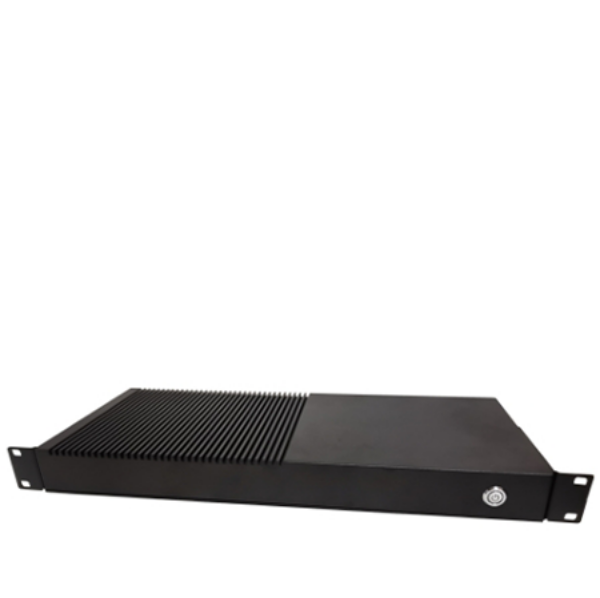

Mini-1U

Fanless Chassis for u-series Products

Featured Highlights
	Dimensions: 17"(W) x 7.44"(D) x 1.7"(H)
	ITX Fanless Case for Slim ITX Socket-S MB
	M.2 or mSATA SSD Drive Bay
	Built-in DC to DC Converter
	DC12-19V Fanless Power Adapter
	Net weight: 10 lb, packaging weight 12 lb.
	Color: Black (Custom colors available with special order)
	Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone

SKU: Mini-1U

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
H12A	Intel® Core™ i5-12450H	Alder Lake	2 DDR4SO	Intel UHD	1 LAN + WiFi/BT	1 M.2 2280			4 R	HDMI + VGA	1 M.2 2230		Realtek® ALC897
U11L2	i7-1180G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe	2 LAN + WiFi/BT + 4G-LTE	1	1	2 R+4 F	2 R	2 DP+2 HDMI2.0	1 MinPCIe	TPM	7.1 ALC897
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	1-4/6/8	2	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
U8A1 / U10A1	i5-10210u/i5-8259u	Comet Lake-u/Coffee Lake-u Platform SOC	2 DDR4SO	UHD 650/Iris Plus 655		1		2 H	4 R	HDMI+VGA/DP+LVDS/H			7.1 ALC897
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	2	1	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
Slim-7000e4	i7-7500u	Kaby Lake-u Skylake-u	1 DDR4SO	7th Gen. HD	1 Realtek/F\RTL8111F	1-8/4		4 R	6 R	2 HDMI/F	4 MiniPCIe	GPIO	5.1 ALC662
Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
Slim-3865L4	3865u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	1-4	1	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
i5-6200FL2	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
i5-6200L2B	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	2 HDMI	2 MiniPCIe		5.1 ALC662
i5-6200SL	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	1 Realtek	2-8	1	2 R+2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
Nano-U12P	12th Gen Core i7/i5/i3	Alder Lake-u	2 DDR4SO	Intel Iris Xe/UHD 12th Gen.	LAN (Option 2.5GbE) + WiFi 6/BT 5.0	1			2 R + 2 F	HDMI 2.1 + DP 1.4 + 2 Thunderbolt 4			HD Audio
Nano-U11C	i7-1185G7	Tiger Lake-u	2 DDR4SO	Iris Xe/UHD	LAN + WiFi/BT + 5G/4G-LTE			2 F	4 R	2HDMI + DP+Thunderbolt4			CJC6811A
Nano-U10C	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	1-8			2 F +2 R	HDMI+DP+Type-C			2.1 ALC269
Nano-U10F	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	1-8	1	2 F	2 F + 2 R	1 HDMI+1 DP			2.1 ALC269
Nano-U10L6	Intel 10th Gen. Core	Comet Lake-u (SOC)	1 DDR4SO	UHD	6 LAN + Mini PCIe + SIM	M.2-2280		1 H	4 F		Mini PCIe + M.2-2280
Nano-U10A	i7-10710u	Comet Lake-u/Whiskey Lake-u Platform (SOC)	2 DDR4SO	UHD 620 / Iris Graphics	1 Intel® i219LM+SIM	1		1	4	1 HDMI + Optional HDMI		TPM	5.1 ALC662
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
Nano-U10L2	i7-10710U	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF		GPIO	5.1 ALC662
Nano-U8FL2C6	i7-8565U	Whiskey Lake-u	2 DDR4SO	Intel UHD 620/610	2 x Intel® i211A+i219LM	1	1	4H	4(USB3.1)R	1 HDMI+1DP+1LVDS/eDP	optional; x8	GPIO, TPM, SPI	5.1 ALC662
Nano-U8L2	i5-8259u	Coffee Lake-u Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP		GPIO	5.1 ALC662
Nano-8000FL2C	i7-8550u	Skylake-uKaby Lake-u/-r	1 DDR4SO	Intel UHD 620 Intel HD 610	1 Realtek+option:1 Realtek	1	1	option 2 R+2 H	2 F + 2 R	1 HDMI+1 VGA\DP		GPIO	5.1 HDMI
Nano-8000A	i5-8250u	Skylake-u Kaby Lake-u/-r	1 DDR4SO	Intel UHD 620	1 Realtek + WiFi+BT	1	1	2 R	2 F	1 HDMI+1 Type-C/F			5.1 HDMI
Nano-8000C2	i5-8250u	Kaby Lake-r Kaby Lake-u	0 DDR4OB	Intel UHD 620 Intel HD 620	1 Realtek	1		2 R	2 R+2 F	1 HDMI			5.1 HDMI
Nano-7200L2/6100L2	i3-6100u	Skylake-u Kaby Lake-u	1 DDR4SO	Intel HD 520	2 Realtek	1	1	2 R+1 H	4 F	1 HDMI+1 DP	MiniPCIe		5.1 ALC662
Nano-7100D	i3-7100u	Kaby Lake-u	1 DDR4SO	Intel HD 620	1 Realtek	1-4	1	2 F	4 F	1 HDMI+1 DP			7.1 ALC892
Nano-6200D	i5-6200u	Skylake-u	1 DDR4SO	Intel HD 520	1 Realtek	1	1	2 F	4 F	1 HDMI+1 DP			5.1 ALC662
Nano-6100D	i3-6100u	Skylake-u	1 DDR4SO	Intel HD 520	1 Realtek	1	1	2 F	4 F	1 HDMI+1 VGA	2 MiniPCIe		5.1 ALC662
Nano-6200C/6100C	i3-6100u	Skylake-u	1 DDR4SO	Intel HD 520	1 Realtek	2-8	1	2 F	4 F	1 HDMI+1 VGA	2 MiniPCIe		5.1 ALC662
Nano-3855L2	3855u	Skylake-u Kaby Lake-u	1 DDR4SO	Intel HD 520	1 Intel\i219LM+option:1 Realtek\RTL8111F	1	1	option 2 R+2 F+2 H	2 F	1 HDMI+1 VGA		1xPS/2+GPIO+TPM	5.1 ALC662
Nano-3865C	3865u	Skylake-u Kaby Lake-u	1 DDR4SO	Intel HD 610/ HD 510	1 Realtek	1	1	2 R	2 F	1 HDMI+1 Type-C/F			5.1 HDMI
Nano-3865A/3855A	3865u	Kaby Lake-u Skylake-u	1 DDR3SO	Intel HD 610 Intel HD 510	1 Realtek	1	1	2 R	2 F	1 HDMI			5.1 HDMI
NUC-8000	i7-8565u	Whiskey Lake-u ITE 8528	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111F	1	1	2 F	2 R+2 F	1 HDMI+1 DP			2.1 ALC269+5.1 HDMI
Nano-i80	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	1 Intel	2-8	1	2 H	2 F+2 R	1 miniDP+1 HDMI	MiniPCIe		7.1 Intel
Nano-i56/i36	i5-6260u	Skylake-u	2 DDR4SO	Intel HD 540 Intel HD 520	1 Intel	1	1	2 H	2 F+2 R	1 miniDP+1 HDMI			7.1 Intel
Nano-i75/i55/i35	i7-5557u	Broadwell-u	2 DDR3SO	Intel Iris 6100 Intel HD 6000 Intel HD 5500	1 Intel	1	1	2 H	2 F+2 R	1 miniDP+1 HDMI			7.1 Intel
Nano-i77/i57/i37	i7-7567u	Kaby Lake-u	2 DDR3SO	Intel Iris 645 Intel Iris 640 Intel HD 620	1 Intel	1	1	2 H	2 F+2 R	1 miniDP+1 HDMI2.0			7.1 Intel
Nano-i200	i5-4200u	Haswell-u	1 DDR3SO	Intel HD 5000	1 Intel	2-8	1	2 H	2 F+2 R	1 HDMI+1 DP	2 MiniPCIe		5.1 ALC662
3855Z/6100Z	3855u	Skylake-u Kaby Lake-u	2 DDR4SO	Intel HD 520	1 Realtek+1 Intel	2-8		2 R	2 F	1 DP+1 HDMI	MiniPCIe		5.1 ALC662
