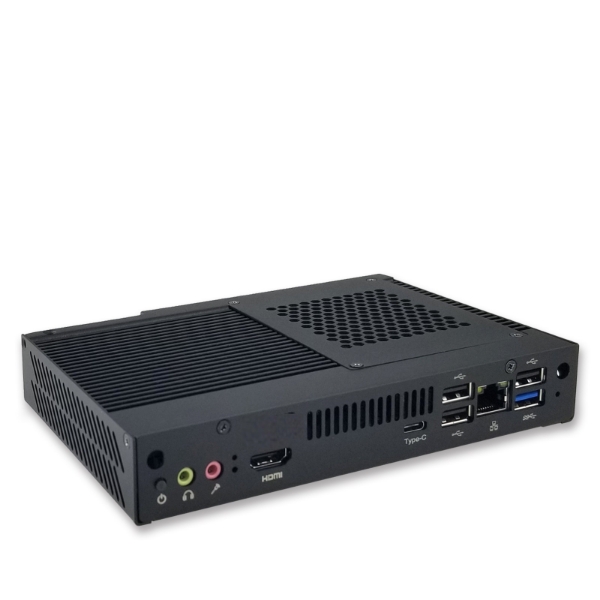

Nano-U10A

Comet Lake/Coffee Lake Core™-u, Iris® 4K Graphics HDMI, 4USB + Type-C, 2 M.2+SIM for 4G-LTE
Featured Highlights
10th / 8th Gen. Intel® Core™ i7/i5/i3-u Processor
Intel® Comet Lake  / Coffee Lake-u Platform (SOC)
Intel® UHD 620 / Iris® Graphics,4K/5K Resolution, HDR 10Bit color, HDMI
2 DDR4 SO-DIMM for up to 64GB Memory
Intel® I219LM Gigabit LAN, SIM for 4G-LTE
2 USB 3.1, USB 3.0, USB 2.0, Type-C
M.2 SSD/NVMe, MicroSD
5.1 ALC662 Audio Sound
1.18" Slim small form factor
Power Supply: DC12-19V Input
OS Support: Windows 10/11, IoT, Linux
Applications: Digital Signage, Airport Signage, Hotel Signage, White-board for Education, Conference Room, etc.

SKU: Nano-U10A
Product specifications
Processor

• 8th/10th Generation Intel® Core™ u-series FCBGA1528 Processor
• Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15
• Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15
• Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M w/Iris Plus Graphics 655
Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W

Chipset

• Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)

Graphics

• Intel® UHD 620/Iris® Graphics, 4K/5K Resolution, HDR 10Bit color
• 1 x HDMI® 4K Graphics port
• Optional Additional HDMI® by I/O extension Daughter Board

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT/4G-LTE Module with SIM Pair)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT/4G-LTE Module with SIM Pair)
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe)

Storage

• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.1 ports (Front)
• 2 x USB 3.0 ports (Front)
• 1 x USB 2.0 port (Front)
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) (Front)
• 1 x HDMI® port (Front)
• 1 x LAN port (Front)
• 2 x 3.5mm Audio jacks (Front)

Function

• 1 x TPM header

System BIOS
• AMI® UEFI BIOS
Chassis

• Nano-A Chassis: 7.9"(W) x 4.9"(D) x 1.18"(H)
• System Weight: 1.5 lb.

Power Supply

• Power input: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux

Application

• Digital Signage, Airport Signage, Hotel Signage, White-board for Education, Conference Room, etc.

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
