Think Big. Go Small. Eco-Smart Computing

NUC-8000

8th Gen Whiskey Lake, UHD Graphics DP+HDMI, 2 M.2+SATA, 6 USB+Type-C
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium®-u Processor
Intel® Whiskey Lake Platform (SOC)
Intel® UHD 620 Graphics, 4K/5K Resolution, HDR 10Bit color, HDMI+DP
2 DDR4 SO-DIMM for up to 32GB Memory
SATA-6Gb/s, M.2 SSD/NVMe
Gigabit LAN, M.2 WiFi
4 USB 3.0, 2 USB 2.0, Type-C
Realtek ALC269 Audio, 5.1 HDMI Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
  Optional DC12V 2.5mm AC Adapter
OS Support: Windows 10, 11, IoT, Linux
Applications: Set Top Box, Kiosk, Digital Signage, AI Edge, IoT, etc.

SKU: NUC-8000
Product specifications
Processor

• Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-5405u 2.30GHz 2Core 4Threads 2M 15W

Chipset

• Intel® Whiskey Lake Platform (SOC)
• ITE 8528 (Super I/O chipset)

Graphics

• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network

• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC269 Audio Codec
• 5.1 HD Audio Subsystem via HDMI® 1.4 Interface
• 1 x 3.5mm Analog Stereo Audio Combo jack

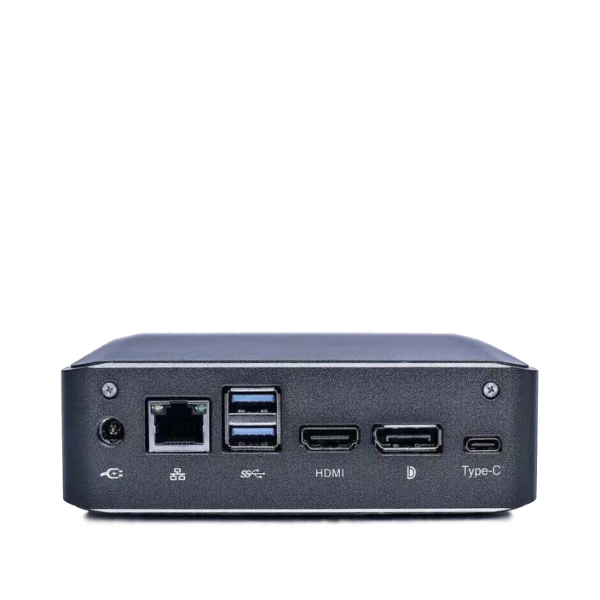

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x Type-C USB port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® port
• 1 x DP
• 1 x LAN port
• 1 x DC-In Power Connector

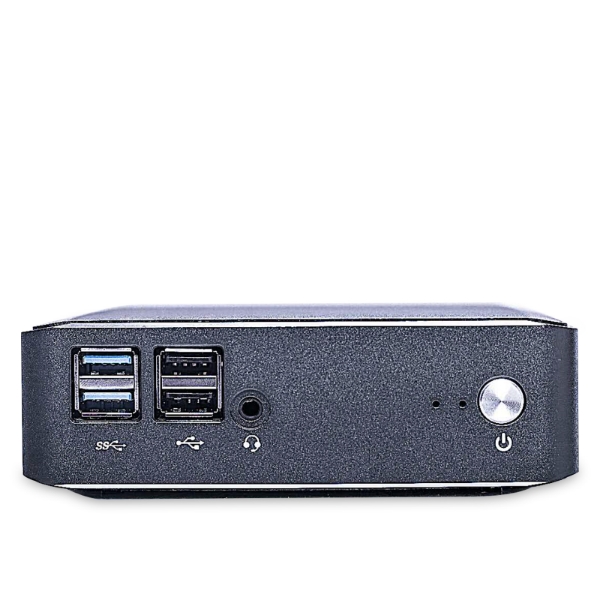

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 1 x 3.5mm Audio Combo jack (Front)

System BIOS
• AMI® UEFI / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
Chassis

• NUC-8 Size Small Form Factor with Copper Heatsink and quiet blower
• Dimensions: 4.92"(W) x 4.92"(D) x 1.50"(H), Weight: 0.9 lb (net) 3 lb(gross with packaging)
• Drive Bay: 1 x 2.5" 7mm
• Color: Dark Grey as default color, custom colors available with special order
• VESA/wall mount bracket included
• Option: Nano-F5 Case 5.43"(W) x 4.96"(D) x 1.65"(H) Hybrid Fanless.

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10, 11, IoT, Linux

Application

• Set Top Box, Digital Signage, Kiosk, AI Edge, IoT, etc.

Environment
• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
