Think Big. Go Small. Eco-Smart Computing

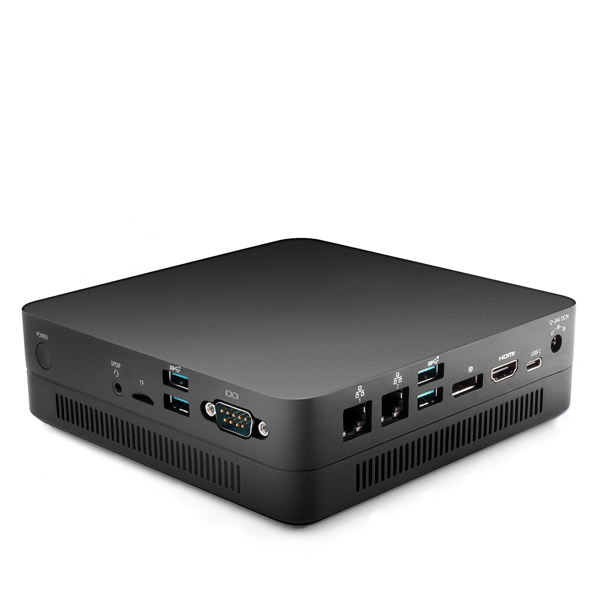

Nano-U10L2

10th Gen. u-Series, Triple 4K Display HDMI+DP+Type-C, 2 LAN+3 M.2+COM, SIM+TF+S/PDIF
Featured Highlights
10th Gen. Intel® Core™ i7/i5/i3 u-series Processor
Intel® Comet Lake-u Platform (SOC)
Intel UHD Graphics, Triple Display, HDMI+DP+Type-C
2 DDR4 SO-DIMM for up to 64GB 2-Channel Memory
M.2 SSD/NVMe, TF (MicroSD)
2 Gigabit LAN, M.2-WiFi
4 USB 3.1, Type-C USB 3.2, COM
7.1 Audio Sound with S/PDIF
Power Supply: DC12-24V Wide Ranger Power-In put, supports Car appliance
OS Support: Windows 10/11, IoT, Linux
Applications: SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Visual Computing, Network Appliance, Edge AI, Vehicle PC, etc.

SKU: Nano-U10L2
Product specifications
Processor

• 10th Generation Comet Lake FCBGA1528pin u-series Mobile processor
• Intel® Core™ i7-10510u 1.10/4.70GHz 6Core 12Threads 12M 15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 15W

Chipset

• Intel® Comet Lake-u Platform (SOC)

Graphics

• Intel® 10th Gen. UHD 4K Graphics
• Support 3 Display
• 1 x DP, 4K 60Hz Graphics port
• 1 x HDMI 2.0, 4K 60Hz Graphics port
• 1 x Type-C, 4K Graphics port convertible to DP or HDMI via Cable or converter

Memory

• 2 x DDR4 SO-DIMM
• 2933/2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® I211 Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
• Intel® 3168ac 11ac WiFi+BT, Optional 11ax WiFi-6
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• 1 x M.2 2242 (for Optional 4G/5G-Modem along with MicroSIM socket)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for 5G/4G-LTE Module with MicroSIM pair)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 1 x 3.5mm Combo+ Audio jack (Supports S/PDIF)

Back Panel I/O

• 1 x DP
• 1 x HDMI port
• 1 x Type-C port (supports USB 3.2 and Graphics)
• 2 x USB 3.1 ports
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x USB 3.1 ports (Side)
• 1 x RS232 Serial COM port (Side)
• 1 x 3.5mm Combo+ Audio jack (Side)
• 1 x MicroSD (TF) slot (Side)

Internal I/O

• 1 x Serial COM header
• 1 x MicroSIM slot

Function

• 1 x 4in/4out GPIO header

System BIOS

• AMI® UEFI / Legacy BIOS
• Watchdog supported

Chassis

• STX-6A STX Size Plastic Chassis
• Dimensions: 6"(W) x 6"(D) x 1.69"(H), Weight: 3 lb. (Net) 8 lb. (gross with packaging)
• Cooling: Slim CPU Blower Fan with Copper Heatsink
• Color: Black as default color, option: Other custom color available with MOQ required for Project customers
• Supports VESA, wall mount or rackmount brackets

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10/11, IoT, Linux

Application

•  SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Visual Computing, Network Appliance, Edge AI, Vehicle PC, etc.

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
