Nano-U10L6

10th Gen. Comet Lake-u, UHD 10th Gen. GPU 4K GPU 2 Displays, SATA+M.2 NVMe, 6 LAN+4 USB 3.0

Featured Highlights
	Intel® Core™ i7/i5/i3/Celeron®/Pentium®-u Processor
	Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
	Intel® UHD 10th Gen. Graphics, 4K Resolution, HDMI 1.4+DP 1.2
	DDR4 SO-DIMM for up to 32GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	6 2.5GbE LAN, MiniPCIe WiFi/4G-LTE
	4 USB 3.0, USB 2.0, 2 COM
	HD Audio
	DC12V-19V 65W Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, IoT, Linux
	Applications: Digital Signage Player, Kiosk, AI Edge, IoT, Set Top Box, Network Security, etc.

SKU: Nano-U10L6

Manufacturer part number: - Comet Lake Multi-LAN Fanless Mini PC

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 10/15/25W • Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 12.5/15W Chipset • Intel® Comet Lake-u Platform (SOC)
Graphics • Intel® UHD 10th Gen. Graphics, 4K Resolution, HDR 10Bit color • Support 2 Graphics ports • 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2 • 1 x DP 1.2, 4K 60Hz Graphics port • 1 x VGA header • 1 x eDP header Memory • 1 x DDR4 SO-DIMM • 2933/2666MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB

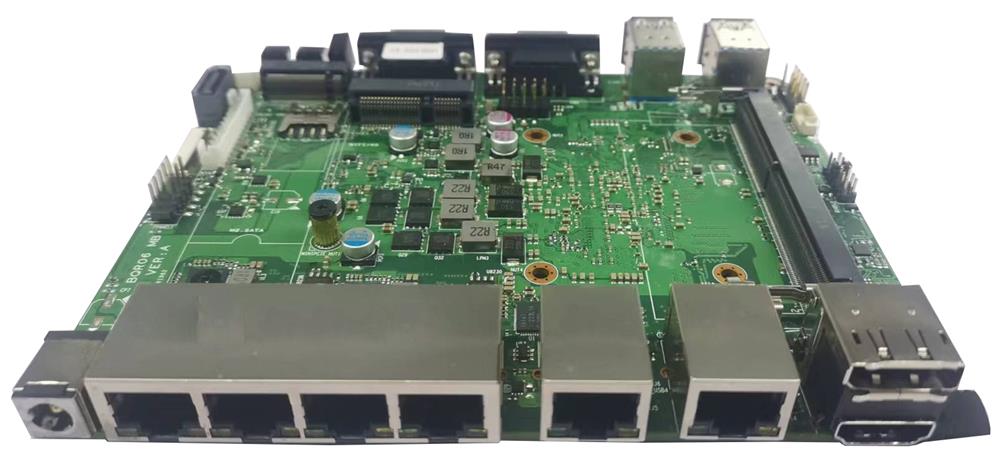

Network • 6 x Intel® i225 2.5 Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM) • 1 x SIM socket (for 4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe) Audio • Optional 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 1 x HDMI 1.4 port • 1 x DP 1.2 port • 6 x LAN ports or 5 x LAN + 2 USB ports • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x VGA header • 1 x eDP header • 1 x USB 2.0 header (supports 2 x USB 2.0 ports) • 1 x RS485 COM header (shared with COM2 port)
Other I/O • 4 x USB 3.0 ports (Front) • 2 x RS232 COM ports (Front) • Optional 1 x 3.5mm Audio jack (Front) System BIOS • AMI® UEFI BIOS • Watchdog supported

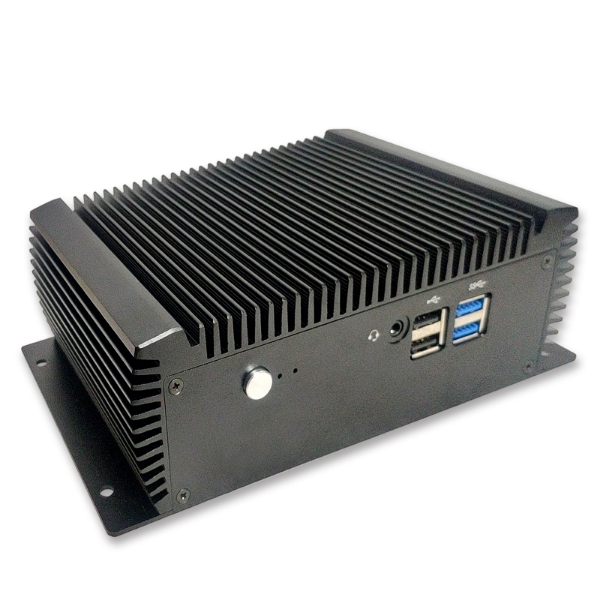

Systemboard • Small Form Factor Chassis • Nano-F14 Chassis Enclosure • Dimensions: 8.11"(W) x 4.96"(D) x 2.5"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets • Option: Nano-F6L Chassis
Power Supply • Power: DC12V-19V 65W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, IoT, Linux
Application • Digital Signage, Kiosk, AI Edge, IoT, Set Top Box, Network Security, and etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
