Think Big. Go Small. Eco-Smart Computing

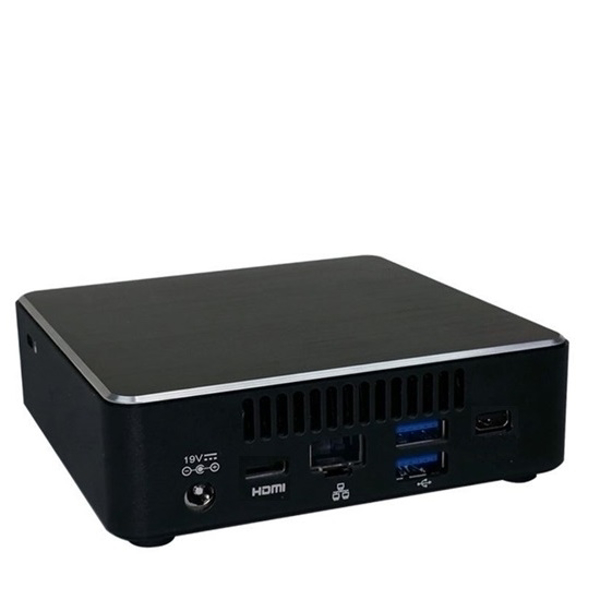

Nano-i75/i55/i35

Broadwell i7-5557u, Iris® Graphics MiniDP+HDMI, SATA+mSATA, MiniPCIe+M.2
Featured Highlights
Intel® Core™ i7/i5/i3-u Processor
Intel® Broadwell Platform (SOC)
Intel® Iris® 6100/HD 6000/HD 5500 4K Graphics, MiniDP+HDMI
2 DDR3L SO-DIMM for up to 16GB Memory
Intel® Gigabit LAN, MiniPCIe WiFi
4 USB 3.0, 2 USB 2.0
SATA-6Gb/s, mSATA-6Gb/s, M.2 SSD/NVMe
7.1 Intel Audio Sound
Power Supply: DC12-19V Input
OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, AV Player, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.

SKU: Nano-i75/i55/i35
Product specifications
Processor

• Intel® Core™ i7-5557u 3.10/3.40GHz 2Core 4Threads 4M 28W
• Intel® Core™ i5-5250u 1.60/2.70GHz 2Core 4Threads 3M 15W
• Intel® Core™ i3-5010u 2.10GHz 2Core 4Threads 3M 15W

Chipset
• Intel® Broadwell Platform (SOC)
Graphics

• Intel® Iris® 6100 Pro Graphics, 4K Resolution
• Option: Intel® HD 6000 Series Graphics, 4K Display
• Option: Intel® HD 5500 Graphics, 4K Display
• Support 2 Graphics ports
• 1 x MiniDP
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2

Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
Network
• 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe half size WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot

• 1 x MiniPCIe half size slot (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Intel® 7.1 HD Audio Subsystem

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x MiniDP
• 1 x HDMI® port
• 1 x LAN port
• 1 x DC-In 2.5mm Power Connector
• Optional RS-232 via USB to Serial module

Internal I/O

• 2 x USB 2.0 headers

Other I/O

• 2 x USB 3.0 ports (Front)

System BIOS
• AMI® UEFI BIOS
Chassis

• NUC Tiny Chassis
• Dimensions: 1.33"(H) x 4.96"(W) x 4.33"(D) (Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, AV Player, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
