Think Big. Go Small. Eco-Smart Computing

Sorry - this product is no longer available

Slim-7000A2/6000A2

7th/6th Gen. u-series, Integrated Graphics 2 HDMI, Up to 2 LAN+MiniPCIe
Featured Highlights
Intel® Core™ i7/i5/i3/Celeron®-u Processor
Intel® Kaby Lake-u/Skylake-u Platform (SOC)
Integrated Graphics Processor, 2 HDMI+eDP/LVDS
DDR4 SO-DIMM for up to 16GB Memory
SATA-6Gb/s, mSATA
Up to 2 Gigabit LAN, MiniPCIe 4G-LTE
2 USB 3.0, 2 USB 2.0
5.1 ALC662 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
  Optional DC12V 2.5mm AC Adapter
OS Support: Windows 8, Windows 10, IoT
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

SKU: Slim-7000A2
Product specifications
Processor

• Intel® Core™ i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W
• Intel® Core™ i3-7100u 0.80/2.40GHz 2Core 4Threads 3M 7.5/15W
• Intel® Core™ i7-7500u 2.70/3.50GHz 2Core 4Threads 4M 7.5/15/25W
• Intel® Core™ i5-6200u 2.50/3.10GHz 2Core 4Threads 3M 15/23W
• Intel® Core™ i3-6100u 2.30GHz 2Core 4Threads 3M 15W
• Intel® Celeron® 3865u 1.80GHz 2Core 2Threads 2M 10/15W
• Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u, i7-7660u, Pentium® 4415u, Celeron® 3865u
• Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u

Chipset
• Intel® Kaby Lake-u Platform (SOC)
• Option: Intel® Skylake Platform (SOC)
Graphics

• Integrated Graphics Processor
• Support 2 Graphics ports, 1 header
• 2 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x eDP header(can be customized with LVDS as alternative)

Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB
Network

• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• Option: Additional 1 x Realtek RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM)

Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• Option: 2 x USB 2.0 or 2nd LAN
• 2 x HDMI® ports
• 1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x USB 2.0 headers
• 6 x Serial COM headers
• 1 x eDP header (can be customized with LVDS as alternative)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS

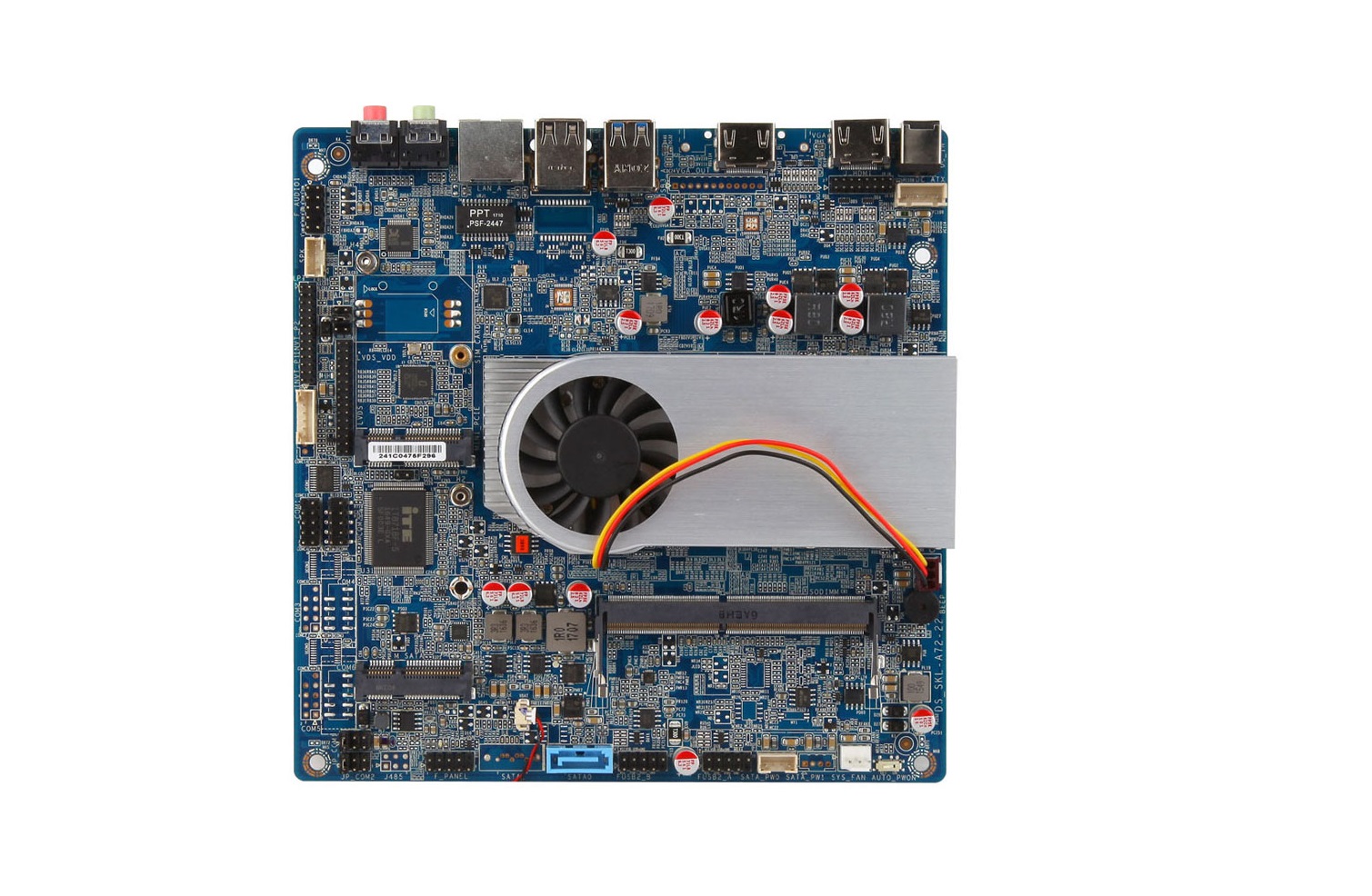

Systemboard
Small Form Factor

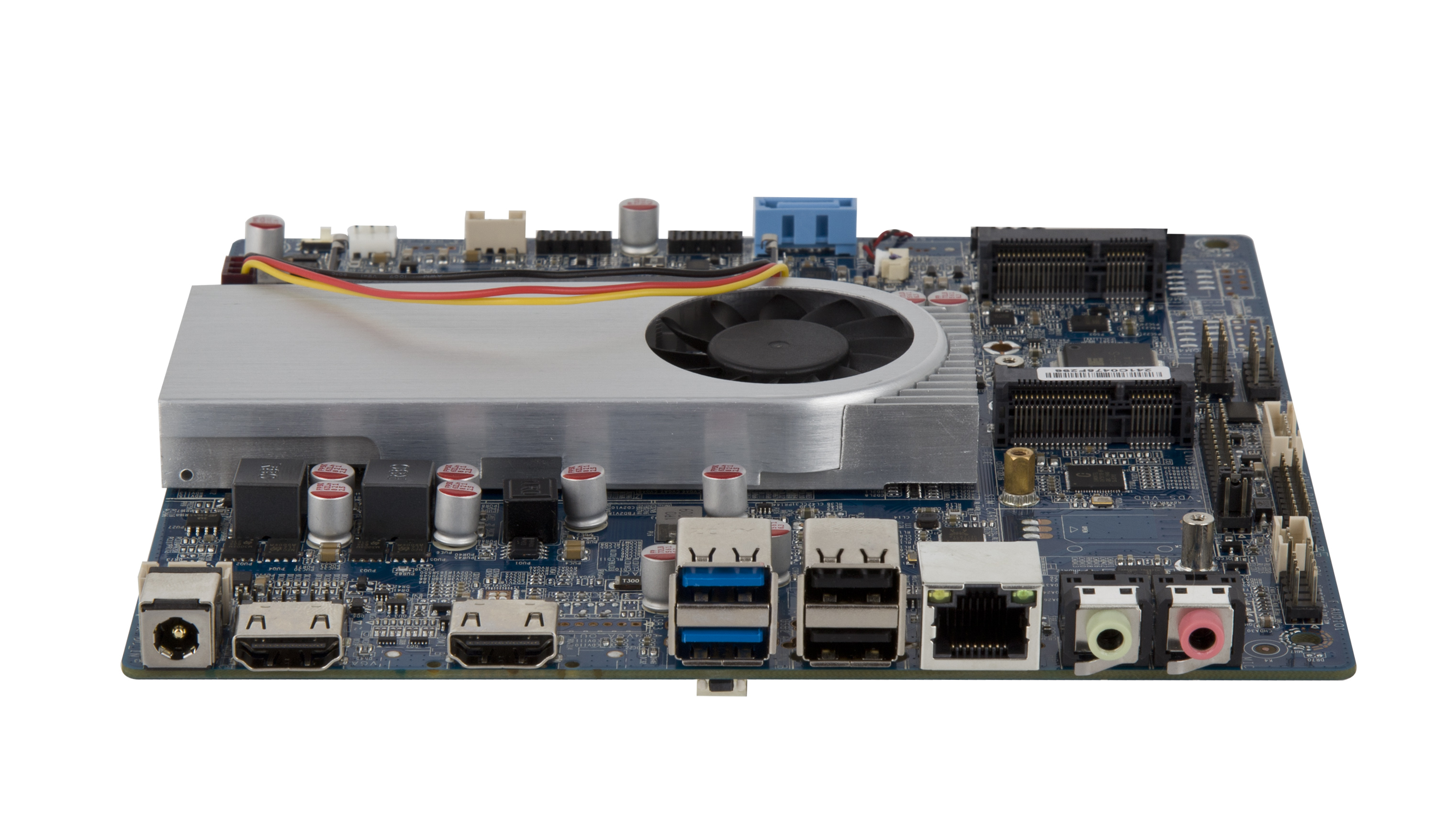

Back I/O

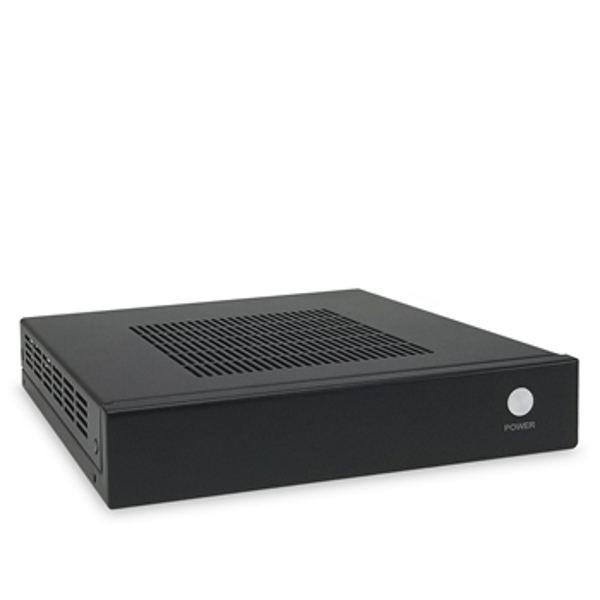

Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: 100F Fanless 1.4" Slim
• Option: 140D 7"x7.2"x1.4"
• Option: 400R with RISER slot 400S Swap Bay 2x2.5"
• Option: 1750C with slot
• Option: 1750F Fanless with slot

Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 8, Windows 10, IoT
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
