Think Big. Go Small. Eco-Smart Computing

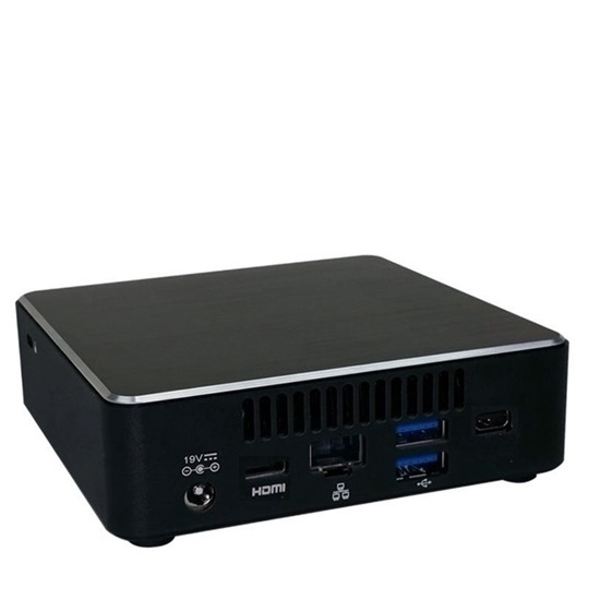

Nano-i77/i57/i37

Broadwell i7-7567u, Iris® Graphics MiniDP+HDMI 2.0, SATA+M.2 SSD, 4 USB 3.0+2 USB 2.0
Featured Highlights
Intel® Core™ i7-7567u Processor
Intel® Kaby Lake-u Platform (SOC)
Intel® Iris® 645/Iris® 640/HD 620 4K Graphics, MiniDP+HDMI 2.0
2 DDR3L SO-DIMM for up to 32GB Memory
Intel® Gigabit LAN
4 USB 3.0, 2 USB 2.0
SATA-6Gb/s, M.2 SSD/NVMe
7.1 Intel Audio Sound
Power Supply: DC19V 65W Input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, IPTV, AV Player, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.

SKU: Nano-i77/i57/i37
Product specifications
Processor

• Intel® Core™ i7-7567u 3.50/4.00GHz 2Core 4Threads 4M 28W
• Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u

Chipset
• Intel® Kaby Lake-u Platform (SOC)
Graphics

• Intel® Iris® Plus 645 Graphics
• Option: Intel® Iris® Plus 640 Graphics
• Option: Intel® HD 620 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x MiniDP
• 1 x HDMI 2.0, 4K 60Hz Graphics port

Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Intel® Gigabit (10/100/1000 Mb/s) LAN
Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 1 x TF (MicroSD) slot, supports 128GB+ MicroSD/TF Card

Audio

• Intel® 7.1 HD Audio Subsystem
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x MiniDP
• 1 x HDMI 2.0 port
• 1 x LAN port
• 1 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector
• Optional RS-232 via USB to Serial module

Internal I/O

• 2 x USB 2.0 headers
• Optional 1 Serial COM header for front or back COM port

Other I/O

• 2 x USB 3.0 ports (Front)

System BIOS
• AMI® UEFI 64MBit BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
Chassis

• NUC Tiny Chassis
• Dimensions: 1.33"(H) x 4.96"(W) x 4.33"(D) (Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, IPTV, AV Player, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
