Nano-7100D

Kaby Lake-u Processor, HD Graphics HDMI + DP, 6 USB + 2 M.2 , Fanless option
Featured Highlights
Intel® Core™ i3-7100u Processor
Intel® Kaby Lake-u Platform (SOC)
Intel® HD 620 Graphics, 4K Resolution, HDMI+DP
DDR4 SO-DIMM for up to 16GB Memory
SATA-6Gb/s, M.2 SSD/NVMe
Gigabit LAN, M.2 WiFi
4 USB 3.0, 2 USB 2.0
7.1 ALC892 Audio Sound
DC12V 5A 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, AV Player, Traffic Controller, Industrial Control/IPC, etc.


Promotional Model
Intel Core™ i3-7100u / 4GB RAM / 128G SSD / Linux $2999

SKU: Nano-7100D
Product specifications
Processor

• Intel® Core™ i3-7100u 2.30GHz 2Core 4Threads 3M 15W
• Option: 7th Generation Kaby Lake Intel® Core™ i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u

Chipset
• Intel® Kaby Lake-u Platform (SOC)
Graphics

• Intel® HD 620 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port

Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB
Network

• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for SATA-6Gb/s only)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2242 (for SATA-6Gb/s only)

Audio

• Realtek® ALC892 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x HDMI® port
• 1 x DP
• 1 x LAN port
• 2 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 4 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 2 x RJ45 Serial COM ports (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS

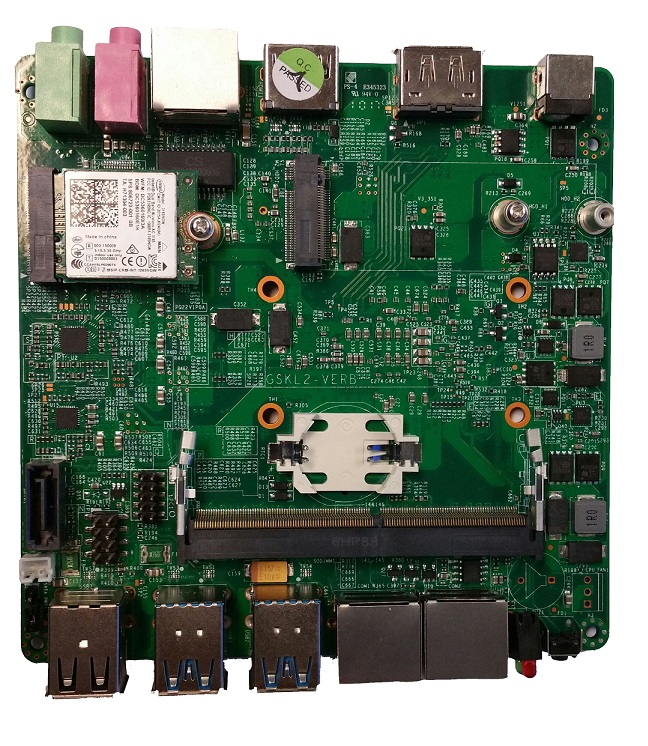

Systemboard
Small Form Factor

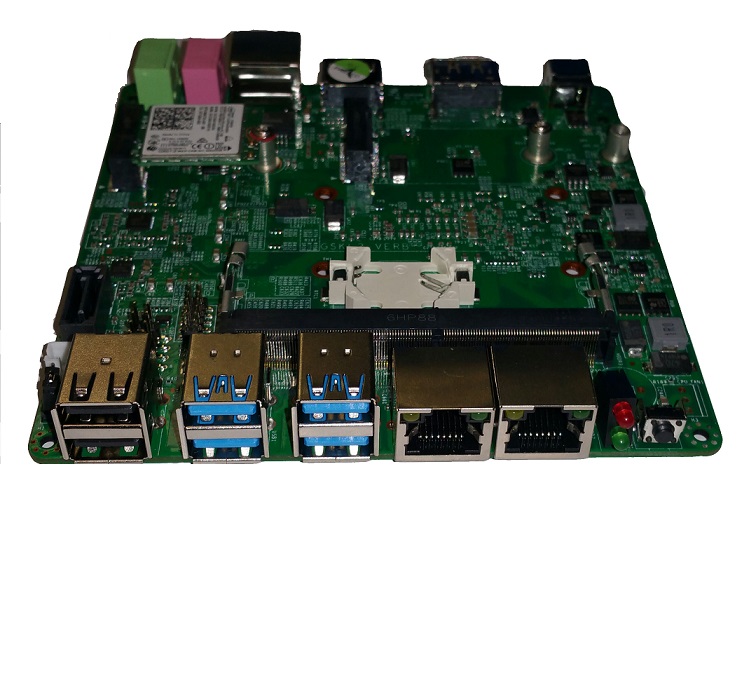

Back I/O

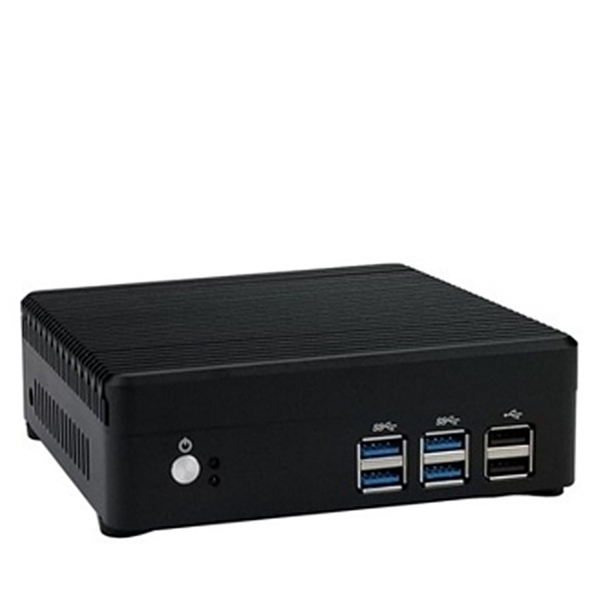

Chassis

Nano-F5 Chassis
• Dimensions: 5.43"(W) x 4.96"(D) x 1.65"(H) (Height and Width dimension changeable), Weight: 1.5 lb. (Net) 6 lb. (gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, POS/Kiosk, AV Player, Traffic Controller, Industrial Control/IPC, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
