Think Big. Go Small. Eco-Smart Computing

U10A/U10AL2

10th Gen u-series, UHD Graphics HDMI+DP/VGA+LVDS, 1/2 LAN+COM, 2 SATA+NVMe
Featured Highlights
10th Gen. Intel® Core™ i7/i5/Celeron®/Pentium®-u Processor
Intel® Comet Lake-u Platform (SOC)
Intel® UHD Graphics, HDMI+DP/VGA+LVDS/H
2 DDR4 SO-DIMM for up to 64GB 2-Channel Memory
2 SATA-6Gb/s, M.2 SSD/NVMe
1 or 2 Gigabit LAN, M.2 WiFi
6 USB 3.0, 3 USB 2.0
5.1 ALC662 Audio Sound
DC12V 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 10/11, IoT, Linux
Applications: SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Surveillance, Network Appliance, Edge AI, etc.

SKU: U10A/U10AL2
Product specifications
Processor

• 10th Generation Comet Lake FCBGA1428 u-series Mobile processor
• Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 1Threads 12M 15/25W
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15
• Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15

Chipset
• Intel® Comet Lake-u Platform (SOC)
Graphics

• Intel® UHD Grapchics
• 1 x DP 4K 60Hz Graphics port
• 1 x HDMI, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI 1.4 version and HDCP 2.2
• 1 x LVDS header

Memory

• 2 x DDR4 SO-DIMM
• 2933/2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN for U10A SKU
• 2 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN for U10AL2 SKU
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280/2260/2242 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 2 x SATA 6Gb/s
• 1 x M.2 2280/2260/2242 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x DP
• 1 x HDMI port
1 or 2 x LAN port(s)
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 3 x USB 2.0 headers
• 2 x USB 3.0 headers
• 1 x Serial COM header
• 1 x LVDS header

Function

• 1 x TPM header

System BIOS
• AMI® UEFI / Legacy BIOS
• Watchdog supported

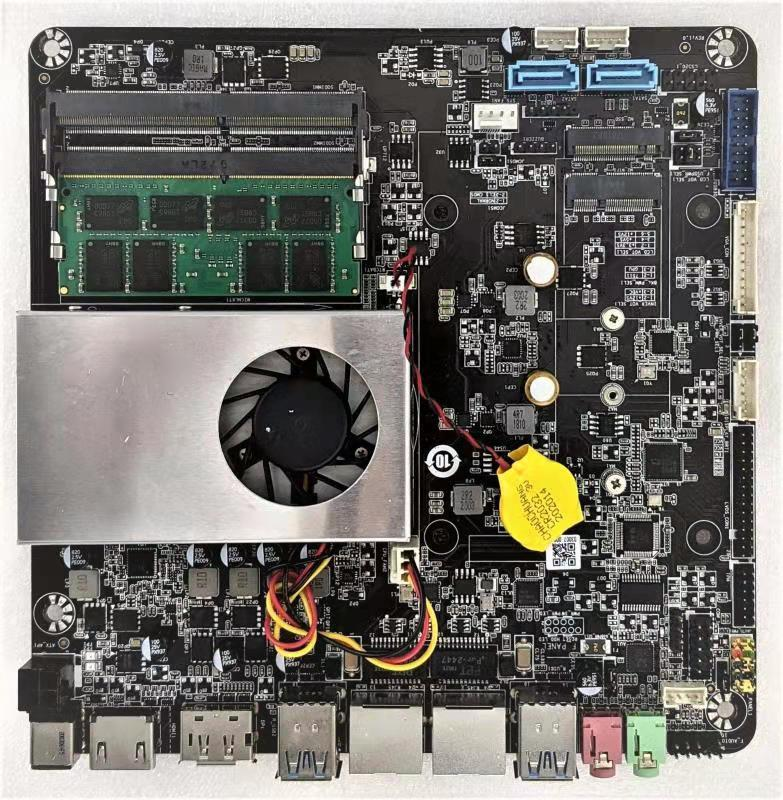

Systemboard
Small Form Factor

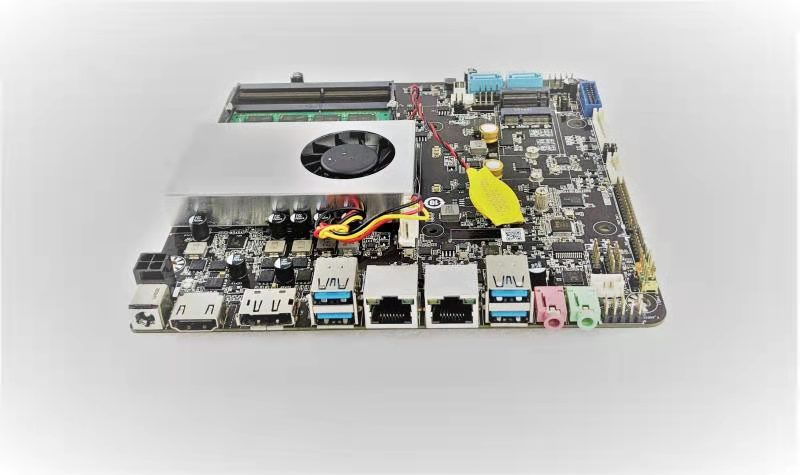

Back I/O

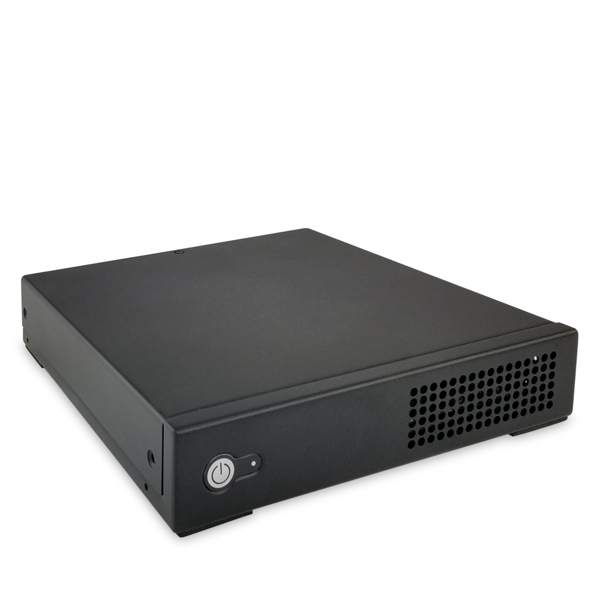

Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(W) x 1.38"(H), Weight: 2 lb. (Net) 4 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: 100F Fanless 1.4" Slim, 100F2 Fanless
• Option: AIO-J24 All-in-one PC
• Option: 175C Case 1.75"(H), 175F Fanless 1.75"(H)
300A w/Slim DVD Bay, 400S Swap Bay 2x2.5"

Power Supply

• Power: DC12V 3A-5A 36W-60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux

Application

SoHo PC,Set Top Box, Digital Signage, POS/Kiosk, Surveillance, Edge AI,etc.

Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
