Think Big. Go Small. Eco-Smart Computing

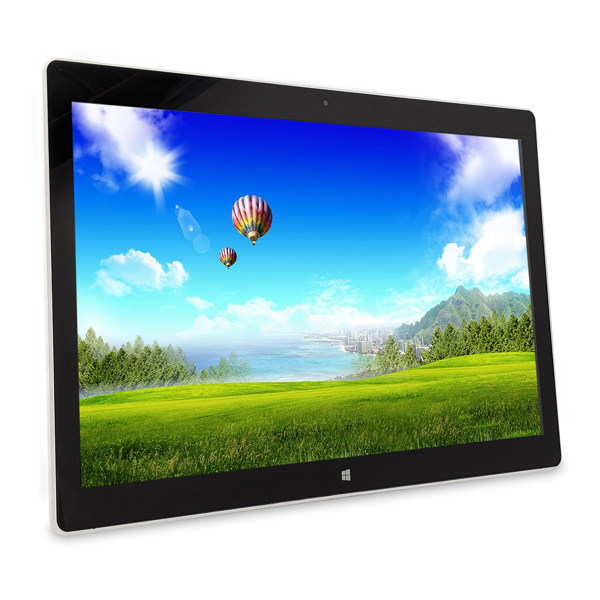

AIO-P17/X17

Rugged IP65 Fanless, Wall mount Touch Screen, Touch Panel Kioks
Featured Highlights
Dimension: 443.6x274.8x49.8mm
Intel® Skylake-u, Kaby Lake-u, Kaby Lake-R or Whisky Lake-u Processor
DDR4 2666MHz up to 16BG
Realtek® ALC269
Expension:
  M.2-2230 (Support WIFI/BT)
  M.2-2280 (Support SSD)
  SATA or NVMe PCIe 4x
USB 3.0 x 6
OS Support: Windows® 7, 8.x, 10, Linux, FreeBSD.



MOQ maybe required

SKU: AIO-P17/X17
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
U10A/U10AL2 i7-10710U Comet Lake-u 2 DDR4SO 10th Gen. UHD 1 Realtek\RTL8111H+option:1 Realtek\RTL8111H 3 H 4 R+2 H 1 DP\VGA+1 HDMI+1 LVDS/H TPM 5.1 ALC662
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
J4125 - J5040AEL2 J4105 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek+1 Intel 1 R+4 H 2 R 1 HDMI+1 DP+1 eDP/H+1 LVDS/H PCIe x2, 2 M.2m, MiniPCIe full size GPIO 5.1 ALC662
N4200AEL2 N4200 Apollo Lake 2 DDR3SO Intel HD 505 2 Intel\i211AT 5 R 4 R 1 HDMI+2 DP+1 LVDS MiniPCIe+PCIe 1x GPIO+TPM 5.1 ALC662
i2311 6/7/8/9th Socket 1151 H310C 1 DDR4SO Nvidia GT1030 1 Realtek\RTL8111H 2 H 4 R 1 HDMI+1 LVDS/H 5.1 ALC662
Slim-A320A Socket AM4 Ryzen 3rd AMD A320 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 5 H 4 R 1 HDMI+1 LVDS/H 2.1 ALC269
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
U11FL2 i7-1180G7 Tiger Lake-u 2 DDR4SO Intel Iris Xe 1 Intel\i211+1 Intel\i219 2 R+4 F 2 R 2 DP+2 HDMI2.0 1 MinPCIe TPM 7.1 ALC897
10A-N2600Q N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek 3 R+2 H 1 HDMI+1 VGA+1 LVDS PCIe 1x 5.1 ALC662
N2600-300R N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek\RTL8111E 3 R+1 F+2 H 1 HDMI+1 VGA 2 MiniPCIe+PCIe 1x 1xPS/2 5.1 ALC662
J1900AL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+GPIO+1xPS/2/H 5.1 ALC662
J1900AC6 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 3 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+1xPS/2/H 5.1 ALC662
J1900AE J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 4 R + 3H 1 R 1 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662
J1900AEL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek\RTL8111F 2 R+2 H 1 R 2 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662 7.1 ALC892
N3350AEL2 N3350 Apollo Lake 2 DDR3SO Intel HD 500 2 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe+PCIe 1x LPT+GPIO 7.1 ALC887
N3050A1 N3050 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
N3150A1 N3150 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
Slim-7000AEL2 i5-7200u Kaby Lake-u 1 DDR4SO Integrated 2 Realtek\RTL8111F 4 H 4 R 1 DP+1 HDMI+1 eDP/H\LVDS PCIe 4x GPIO+LPT 5.1 ALC662
Slim-7000A2/6000A2 i5-7200u Kaby Lake-u Skylake-u 1 DDR4SO Integrated 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F option 2 R+2 H 2 R 2 HDMI/R+1 eDP/H\LVDS 1 MiniPCIe 5.1 ALC662
Slim-7000e4 i7-7500u Kaby Lake-u Skylake-u 1 DDR4SO 7th Gen. HD 1 Realtek/F\RTL8111F 4 R 6 R 2 HDMI/F 4 MiniPCIe GPIO 5.1 ALC662
Slim-7000L4 i7-7660u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
Slim-3865L4 3865u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
i5-6267FL i5-6267u Skylake-u 2 DDR3SO Intel Iris 550 1 Realtek\RTL8111F 2 R+4 H 2 R+2 H 1 HDMI+1 VGA+1 LVDS 1xPS/2+LPT+GPIO 5.1 ALC662
i5-6200FL2 i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
i5-6200L2B i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 2 HDMI 2 MiniPCIe 5.1 ALC662
i5-6200SL i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Realtek 2 R+2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
i2310 i7-6700HQ QM170 2 DDR4SO Nvidia GTX960M 1 Realtek 2 R 2 R+2 F 1 HDMI+1 DP+1 Type-C TPM Azalia Codec
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
H610A Alder Lake H610 2 DDR4SO Intel® 12th Gen Xe Graphics UHD 770/730/710 1 LAN + WiFi/BT 4 R 1 HDMI + 1 VGA 1 7.1 ALC897

Support Models

Product specifications
Processor
• Intel® Skylake-u, Kaby Lake-u, Kaby Lake-R or Whisky Lake-u
• Intel® u-series 6th, 7th, 8th Gen. Core™ i7/i5/i3/Pentium®
• Standard SKU: 4417u, i5-6200u, i5-8250u, i7-8650u, i7-8365u, i7-8350u, i7-8665u
• Other processors are available up on request and marketing availability
Audio
• Realtek® ALC269 Optional 3.5mm Audio in/out jack
LAN
• Intel® i219L Gigabit, Optional up to 4 LAN ports, Optional WiFi via M.2-2230 module
Memory
• DDR4 2666MHz SO-DIMM Up to 16GB
Storage
• M.2-2280 Slot for SSD
• SATA-6G/s or NVMe PCIe 4x
I/O
• Optional DE-9 connector with IP67 grade (RS232 port)
• Optional mDP for 2nd display
• 6 x USB 3.0 (each 2 USB ports can be converted for RJ45 LAN or Console port)
• TPM v2.0 Infineon SLB9665TT
• Programmable function keys and 4 status indicator (IP67)
Video Output
• 17.3” TFT 250 nits LCD 1920x1080 PCAP 10-point Touch
• P18/X18: 18.5” 1600x900 or P21/X21: 21.5” 1920x1080
Other
• Optional 2m resolution
• Optional 2 x 3W Stereo (left and right)
• Fanless aluminum with VESA / wall mountable
• DC12V-19V input, 2S3P 9750mAH 7.2V 70.2Wh Li-Ion Battery 6-cell of 18650)
OS Support
• Windows 10 or 7 (32-bit or 64-bit)
• Windows 10 or 7 Pro (32-bit or 64-bit)
• Windows IoT / Embedded Linux / FreeBSD
• Dual-boot Windows / Linux
Certificate
• IP65 at Bezel side, IP54 at I/O ports, FCC, CE, UL on AC Adapter
*
*
*
