Think Big. Go Small. Eco-Smart Computing

J1900AEL2

Bay Trail 4Core Celeron® IoT Network Security Gateway, 10-year Longevity, 2 LAN+2 HDMI+COM
Featured Highlights
Intel® Celeron® J1900 Processor
Intel® Bay Trail Platform (SOC)
Intel® HD Graphics 1920x1080, 2 HDMI+Optional VGA port
DDR3L SO-DIMM for up to 8GB Memory
2 SATA-6Gb/s, mSATA-6Gb/s
PCI Express 3.0 x1, MiniPCIe
2 Gigabit LAN, MiniPCIe WiFi
USB 3.0, 4 USB 2.0
5.1 ALC662 / 7.1 ALC892 Audio Sound
DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 7, Windows 8, Windows 10, IoT
Applications: Set Top Box, Network Security Gateway, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.


SKU: J1900AEL2
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics

• Intel® 7th Generation HD Graphics 1080p Resolution
• Support 2 Displays
• 2 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA header
• 1 x LVDS header

Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 8GB
Network

• 2 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe half size slot (Taken by WiFi+BT Module)
• 1 x 3G/4G-LTE Modem via MiniPCIe full size slot (pair up with SIM socket)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x1 slot
• 1 x MiniPCIe full size slot (for 4G-LTE Module with SIM pair or mSATA-6Gb/s)
• 1 x MiniPCIe half size (for WiFi+BT or Other Module)

Storage

• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s by MiniPCIe full size slot

Audio

• Realtek® ALC662 6-channel (5.1)
• Option: Realtek® ALC892 8-channel (7.1)
• Internal audio, S/PDIF headers

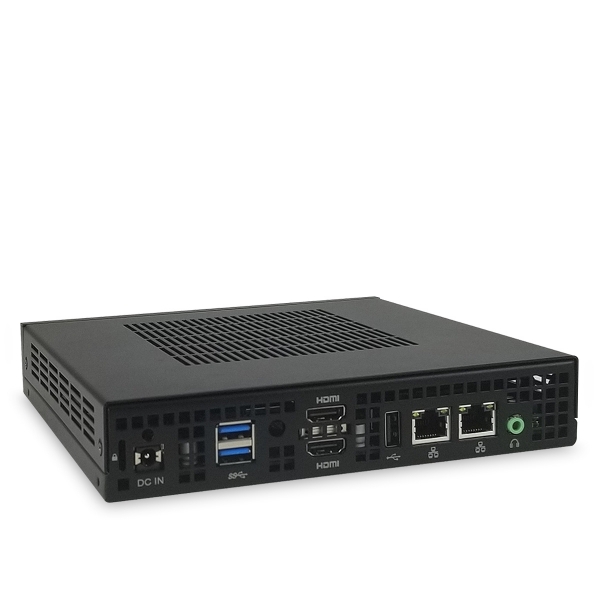

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x USB 2.0 port
• 2 x HDMI® ports
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 3 x USB 2.0 headers
• 1 x Serial COM header
• 1 x VGA header
• 1 x LVDS header
• 1 x S/PDIF header

Function

• 1 x 4in/4out GPIO header

System BIOS
• Watchdog supported

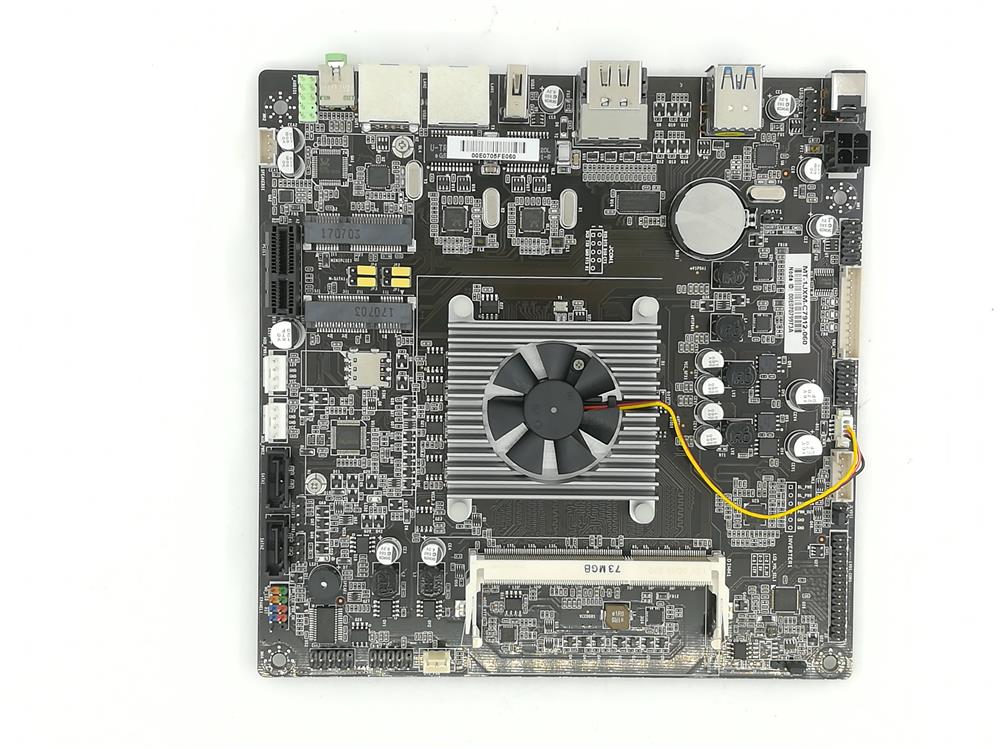

Systemboard
Small Form Factor

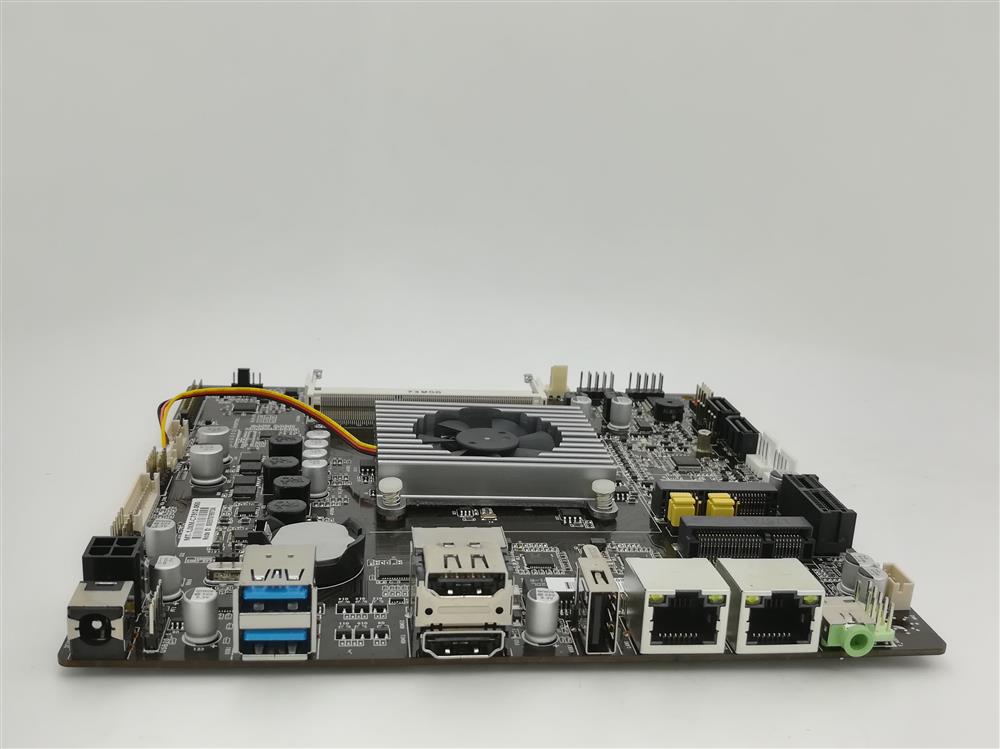

Back I/O

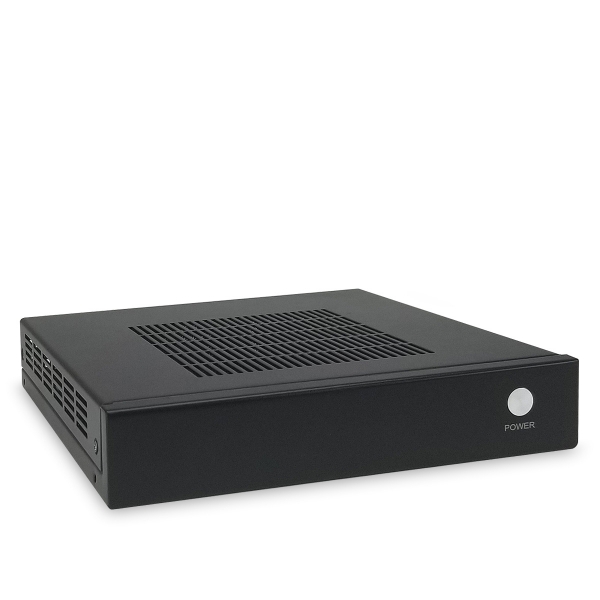

Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: Slim 10a Series 1.4" Slim
• Option: 100F Fanless 1.4" Slim
• Option: 140D 7"x7"x1.4"
• Option: 175C Case 1.75" H, 175F Fanless 1.75" H (Convertible to 1U with Rack Ear Kit)
• Option: 300B Aluminum 2.1" H, 300A w/Slim DVD Bay, 300R with RISER Slot
• Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Option: 1000 Aluminum Form Factor
• Option: 1750C with slot 1.75" 1U Height  (Convertible to 1U with Rack Ear Kit)
• Option: 1750F Fanless with slot 1.75" 1U Height  (Convertible to 1U with Rack Ear Kit)

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
