Think Big. Go Small. Eco-Smart Computing

H310L4

Slim 9th Gen Socket-S, 4LAN+2COM, PCIe x4+M.2, Fanless Network Security Gateway
Featured Highlights
Intel® Core™ i9/i7/i5/i3 processor LGA1151
  8/9th Gen. Coffee Lake Platform
  Low-voltage energy efficiency Eco-smart computing
Intel® H310/Q370 Platform
Intel® UHD 630 Graphics
2 DDR4 SO-DIMM for up to 64GB Memory
PCIe 3.0 x4
4 Gigabit LAN + M.2 WiFi
4 USB 3.0, 2 USB 2.0
2 SATA-6Gb/s, mSATA
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Input
OS Support: Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
Applications:  High Speed Router, Firewall, VPN, Network Security, etc

In Stock



SKU: H310L4
Product specifications
Processor

• Intel® 9th/8th Generation Coffee Lake processor
• LGA1151 socket series with 35W, 65W to 95W TDP
• Intel® Core™ i9-9900K, 9900, 9900T 8C/16T series 16M Cache
• Intel® Core™ i7-9700, 9700T, 8700, 8700T series 6C/12T 12M Cache
• Intel® Core™ i5-9600, 9500, 9400T, 8400, 8400T series 6C/6T 9M Cache
• Intel® Core™ i3-9300, 9100, 9100T, 8100, 8100T series 4C/4T 6M Cache
• Intel® Pentium® Gold G5600 series 2C/4T 4M and Celeron® G4900 series 2C/2T 2M

Chipset

• Intel® H310 Express Chipset
• Option: Intel® Q370 Express vPro® Technology

Graphics

• Intel® UHD 630 Graphics
• Support 1 Graphics port
• 1 x VGA port (Optional DP + HDMI® )

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB (however 32GB is most practical)
Network

• 4 x Intel® I211 Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
• Option: 802.11ac Wireless

Expansion Slot

• 1 x PCI Express 3.0 x4 slot
• 1 x M.2 2230 (for WiFi/BT Module or Other Module)

Storage

• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
• Storage Capacity supports >1TB HDD/SSD

Audio

• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF header
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 2 x USB 3.0 ports
• 1 x VGA port
• 4 x LAN ports
• 1 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x USB 2.0 headers
• 2 x Serial COM headers
• 1 x S/PDIF header

Other I/O

• 2 x USB 3.0 ports (Front)

Function

• 1 x 4in/4out GPIO header

System BIOS
• AMI® UEFI 64MBit BIOS
• Watchdog supported

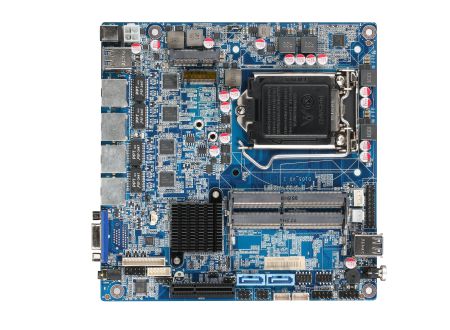

Systemboard
Small Form Factor

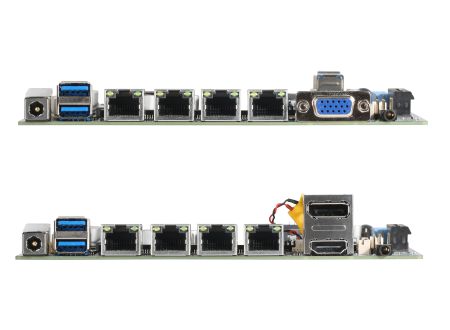

Back I/O
Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"W x 7.2"D x 1.38"H, Weight: 3 lb (Net) 10 lb (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• Option: 100F Fanless 1.4" Slim
• Option: 400R with RISER Slot 400S Swap Bay 2x2.5"
• Option: 1750C with slot
• Option: 1750F Fanless with slot
• Option: 236F3 Fanless

Power Supply

• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT

Application

• High Speed Router, Firewall, VPN, Network Security, etc
• Embedded-Longevity

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
