Q170A2-3HDMI

6th Gen. Skylake i7/i5/i3 vPro®, HD Graphics 2 HDMI+HDMI 2.0+LVDS, 2 LAN+4 COM+2 SATA, 2 MiniPCIe+PCIe 3.0 x4
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium processor 1151pin
  6th Generation Skylake Platform
  Low-voltage energy efficiency Eco-smart computing
Intel® Q170 Chipset, Intel® vPro® Technology,
  26 HSIO Lanes (20 PCIe 3.0)
Intel® HD 530 Graphics, 4K Resolution, 2 HDMI+HDMI 2.0+LVDS
2 DDR4 SO-DIMM for up to 16GB Memory
PCIe 3.0 x4, 2 MiniPCIe
2 Intel® Gigabit LAN
4 USB 3.0, 4 USB 2.0
2 SATA-6Gb/s -RAID, mSATA-6Gb/s
7.1 ALC887 Audio Sound
Power Supply: DC19V 3.6A Input
OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, IP/PBX, IoT/Edge System, etc.

SKU: Q170A2-3HDMI
Product specifications
Processor
• Intel® 6th Generation Skylake processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7 processor series: i7-6700T (35W), i7-6700 (65W)
• Intel® Core™ i5 processor series: i5-6400T (35W), i5-6500T (35W), i5-6600 (65W)
• Following CPU is compatible to this system but do not support Intel vPro Features
• Intel® Core™ i3 processor series: i3-6100T (35W), i3-6100 (47W)
• Intel® Dual Core Pentium® processor series: G4400T (35W), G4500T (35W), G4500 (47W)
Chipset

• Intel® Q170 Express
• Supports Intel® vPro® Technology
• 26 High Performance Lanes (20 x PCIe 3.0)

Graphics

• Intel® HD 530 Graphics, 4K Resolution
• Option: Intel® HD 630 Graphics, 4K Resolutions
• 2 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x HDMI® 2.0, 4K 60Hz Graphics port
• 1 x LVDS header

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered ECC (Dual Channel I/O)
• Supports up to 16GB
Network
• 2 x Intel® Gigabit (10/100/1000 Mb/s) LAN
Expansion Slot

• 1 x PCI Express 3.0 x4 slot
• 2 x MiniPCIe full size slots

Storage
• 2 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10
• 1 x mSATA 6Gb/s
Audio

• Realtek® ALC887 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

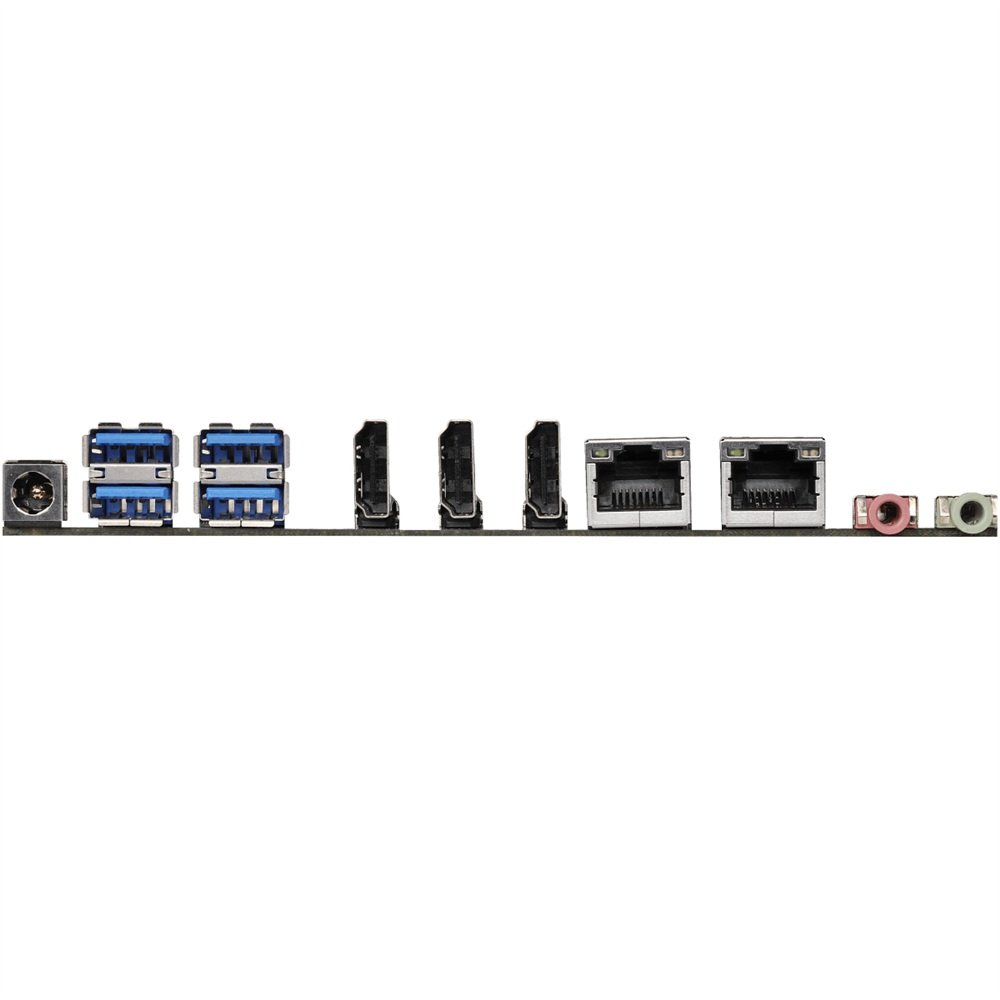

Back Panel I/O

• 4 x USB 3.0 ports
• 4 x Serial COM ports (2 RS232,2 RS485)
• 2 x HDMI® ports
• 1 x HDMI® 2.0 port
• 2 x LAN ports
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 4 x USB 2.0 headers

Function

• 1 x 4in/4out GPIO header
• 1 x TPM header

System BIOS
• AMI® UEFI 32MBit BIOS
• Watchdog supported

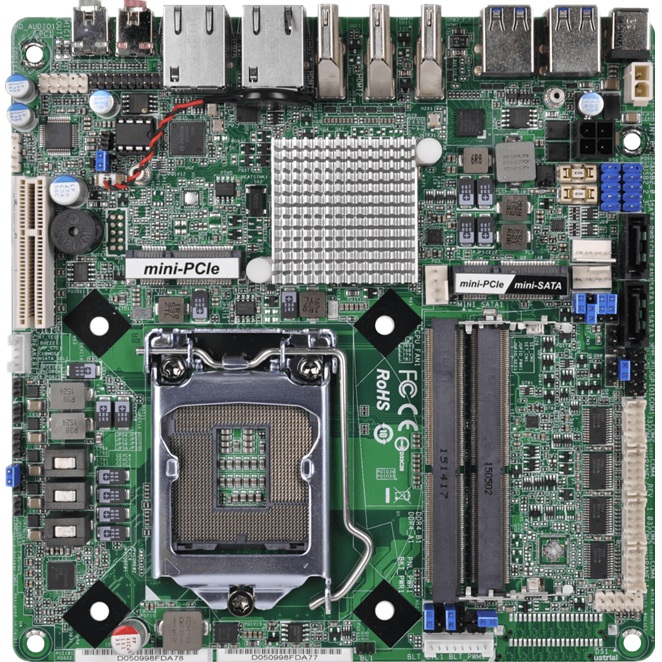

Systemboard
Small Form Factor
Back I/O
Chassis

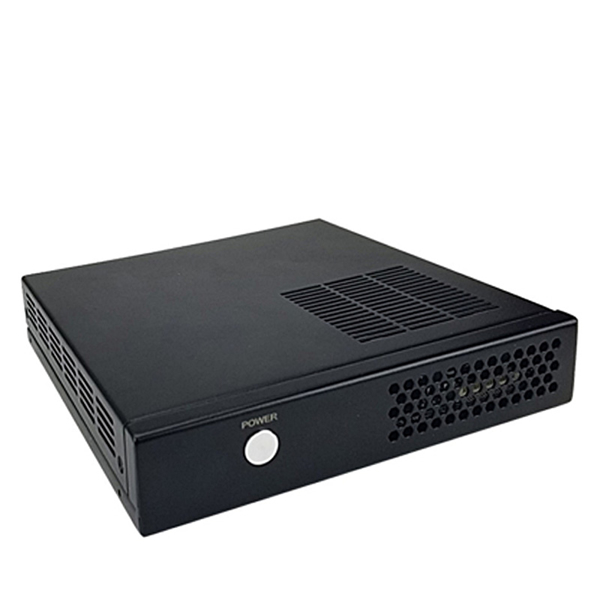

140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.4"(H) x 7"(W) x 7"(D), Weight: 3 lb(Net) 10 lb(gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 140D without front USB ports is 7" depth 140D2 with 2 front USB port is 7.5" depth
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 1000 Aluminum Form Factor
• Option: 236F3 Fanless

Power Supply

• Power: DC12V or DC19-24V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
