 Think Big. Go Small. Eco-Smart Computing

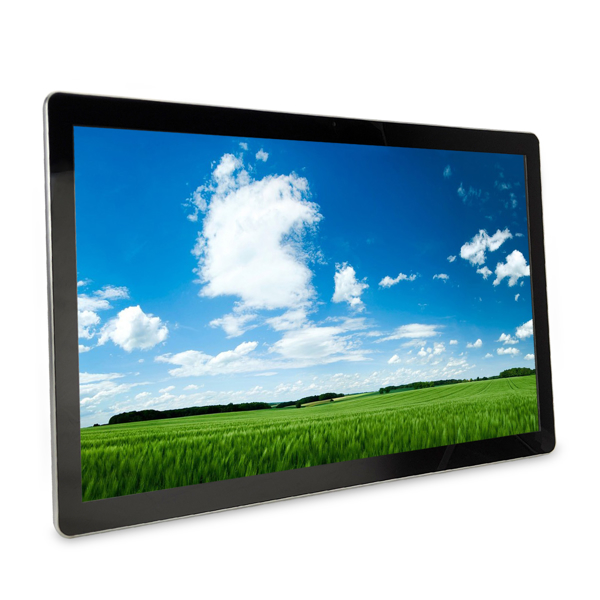

AIO-21-N3

All-in-one 21" N3350
Featured Higghts
Dimensions: Only 20.4"(W) x 12.4"(H) x 1.2"(D)
Intel® Celeron® N3350 or Pentium® N4200 processor
Intel® Apollo Lake Family
4GB DDR3 (optional 8GB) Memory
32G or 64G eMMC + SATA + TF Slot
Intel® HD500 Graphics
21.5” 1920x1080 LCD Display
GigaLAN (RJ45), 2x USB 3.0+1 USB 2.0
2 mega pixel Front WEB Camera,
DC12V Power Adapter
Supports Windows 10 and Linux
SKU: AIO-21-N3
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 1 2 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 1 2 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
U10A/U10AL2 i7-10710U Comet Lake-u 2 DDR4SO 10th Gen. UHD 1 Realtek\RTL8111H+option:1 Realtek\RTL8111H 1-4/6/8 2 3 H 4 R+2 H 1 DP\VGA+1 HDMI+1 LVDS/H TPM 5.1 ALC662
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 1 3 R 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
J4125/J5040AEL2 J4105 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek+1 Intel 1-4/8 1 1 R+4 H 2 R 1 HDMI+1 DP+1 eDP/H+1 LVDS/H PCIe x2 GPIO 5.1 ALC662
J5040/J4125AE J4005 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek 1 1 3 R+4 H 2 R 1 HDMI+1 DP+1 eDP+1 LVDS PCIe 2x GPIO 5.1 ALC662
N4200AEL2 N4200 Apollo Lake 2 DDR3SO Intel HD 505 2 Intel\i211AT 1 5 R 4 R 1 HDMI+2 DP+1 LVDS MiniPCIe+PCIe 1x GPIO+TPM 5.1 ALC662
i2311 6/7/8/9th Socket 1151 H310C 1 DDR4SO Nvidia GT1030 1 Realtek\RTL8111H 1 2 H 4 R 1 HDMI+1 LVDS/H 5.1 ALC662
Slim-A320A Socket AM4 Ryzen 3rd AMD A320 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 1-4/6/8 1 5 H 4 R 1 HDMI+1 LVDS/H 2.1 ALC269
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 2-8 2 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
U11FL2 i7-1180G7 Tiger Lake-u 2 DDR4SO Intel Iris Xe 1 Intel\i211+1 Intel\i219 1 1 2 R+4 F 2 R 2 DP+2 HDMI2.0 1 MinPCIe TPM 7.1 ALC897
10A-N2600Q N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek 1 3 R+2 H 1 HDMI+1 VGA+1 LVDS PCIe 1x 5.1 ALC662
N2600-300R N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek\RTL8111E 1 3 R+1 F+2 H 1 HDMI+1 VGA 2 MiniPCIe+PCIe 1x 1xPS/2 5.1 ALC662
J1900AL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 1 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+GPIO+1xPS/2/H 5.1 ALC662
J1900AC6 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 1 3 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+1xPS/2/H 5.1 ALC662
J1900AE J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 1 4 R + 3H 1 R 1 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662
J1900AEL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek\RTL8111F 1 2 R+2 H 1 R 2 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662 7.1 ALC892
N3350AEL2 N3350 Apollo Lake 2 DDR3SO Intel HD 500 2 Realtek 1 2 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe+PCIe 1x LPT+GPIO 7.1 ALC887
N3050A1 N3050 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 1 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
N3150A1 N3150 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 1 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
Slim-7000AEL2 i5-7200u Kaby Lake-u 1 DDR4SO Integrated 2 Realtek\RTL8111F 1-4 2 4 H 4 R 1 DP+1 HDMI+1 eDP/H\LVDS PCIe 4x GPIO+LPT 5.1 ALC662
Slim-7000A2/6000A2 i5-7200u Kaby Lake-u Skylake-u 1 DDR4SO Integrated 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F 2-8 1 option 2 R+2 H 2 R 2 HDMI/R+1 eDP/H\LVDS 1 MiniPCIe 5.1 ALC662
Slim-7000e4 i7-7500u Kaby Lake-u Skylake-u 1 DDR4SO 7th Gen. HD 1 Realtek/F\RTL8111F 1-8/4 4 R 6 R 2 HDMI/F 4 MiniPCIe GPIO 5.1 ALC662
Slim-7000L4 i7-7660u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2-8 1 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
Slim-3865L4 3865u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2-8 1 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
i5-6267FL i5-6267u Skylake-u 2 DDR3SO Intel Iris 550 1 Realtek\RTL8111F 1-4 1 2 R+4 H 2 R+2 H 1 HDMI+1 VGA+1 LVDS 1xPS/2+LPT+GPIO 5.1 ALC662
i5-6200FL2 i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2-8 1 2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
i5-6200L2B i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2-8 1 2 H 2 R+2 H 2 HDMI 2 MiniPCIe 5.1 ALC662
i5-6200SL i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Realtek 2-8 1 2 R+2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 1 3 R 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
i2310 i7-6700HQ QM170 2 DDR4SO Nvidia GTX960M 1 Realtek 2 1 2 R 2 R+2 F 1 HDMI+1 DP+1 Type-C TPM Azalia Codec
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 2-8 1 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 2-8 1 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 1-4/6/8 2 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2-8 1 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
H610A Alder Lake H610 2 DDR4SO Intel® 12th Gen Xe Graphics UHD 770/730/710 1 LAN + WiFi/BT 1 4 R 1 HDMI + 1 VGA 1 7.1 ALC897

Support Models

Product specifications
Processor
• Intel® Celeron® N3350 2Core 2.4G
• Option: Pentium® N4200, Celeron® N3450
Chipset
• Intel® Apollo Lake SoC
Graphics
• Intel® HD500
• 1 HDMI 1.4 out for 2nd Display
• LVDS Flat Panel Support
Audio
• Realtek® ALC622 5.1 Sound
• 1 x 3.5mm In/Out Combo Jack
• HDMI 5.1 Digital Sound output
• 2 x 3W Stereo (Left/Right) Speakers
LAN
• Realtek® 8111 Gigabit (10/100/1000 Mb/s)
• 11n/g WiFi Built-in
• Optional 11ac+BT 4.0
Memory
• 4GB On-board DDR3-1600/1333MHz
• Optional 8GB
Storage
• 32G or 128G eMMC 5.1
• SATA bay for 2.5” SSD/HD
• TF Reader for MicroSD
I/O
• 2 x USB 3.0, 1 x USB 2.0
Video Output
• 21.5” LCD Panel
• 1920x1080 Resolution
• Optional capacitive Touch
OS Support
• Windows 10 and Linux
Application
• POS, Kiosk, Picture Frame, Home Entertainment, Home Control, Portable Computing, Trade Show Display, Office PC, Digital Signage, General Computing.
Chassis
• Light Weight Plastic
• Dimensions: 20.4"(W)x12.4(H)x1.2(D)
• Weight (Net): 4.96 LB
• Power: DC12V 2A 24W Adapter.
Certificate
• FCC/CE, UL for the Power Adapter
Environment
• Operating Temperature: -5 to +40 C°
• Non-operating temperature:-20 to +70C°
*
*
*
