 Think Big. Go Small. Eco-Smart Computing

J1900AC6

Bay Trail 4Core Celeron®, 10-year Longevity, 6 COM+HDMI+VGA, MiniPCIe+mSATA+SIM
Featured Highlights
Intel® Celeron® J1900 Processor
Intel® Bay Trail Platform (SOC)
Intel® HD Graphics 1920x1080, HDMI+VGA+LVDS
DDR3L SO-DIMM for up to 8GB Memory
SATA-6Gb/s, mSATA-6Gb/s
MiniPCIe
Gigabit LAN
USB 3.0, 6 USB 2.0
5.1 ALC662 Audio Sound
DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.

SKU: J1900AC6
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics

• Intel® 7th Generation HD Graphics
• Support 2 Graphics ports, 1 header
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA port
• 1 x LVDS header

Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 8GB
Network

• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 1 x 3G/4G-LTE Modem via MiniPCIe full size slot (pair up with SIM socket)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x MiniPCIe full size slot (for mSATA-6Gb/s)

Storage

• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s via MiniPCIe full size slot

Audio

• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x USB 3.0 port
• 3 x USB 2.0 ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In Power Connector

Internal I/O

• 2 x USB 2.0 headers
• 6 x Serial COM headers (COM6 can be RS485)
• 1 x LVDS header
• 1 x S/PDIF header
• 1 x PS/2 header

Other I/O

• 1 x USB 2.0 port (Front)

Function

• 1 x TPM header
• 1 x 4in/4out GPIO header

System BIOS
• Watchdog supported

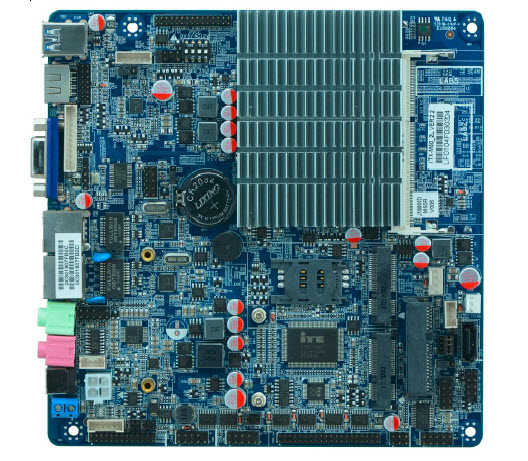

Systemboard
Small Form Factor

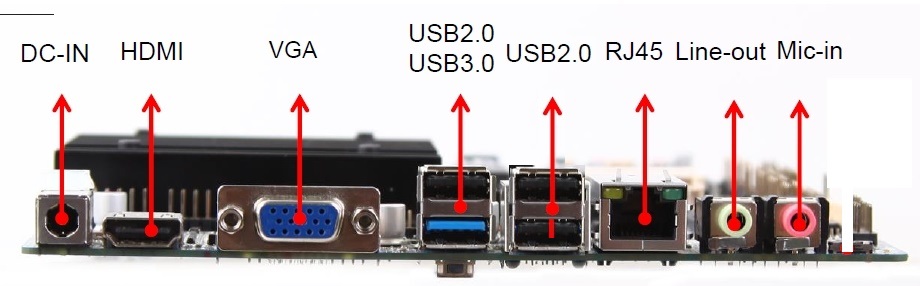

Back I/O
Chassis

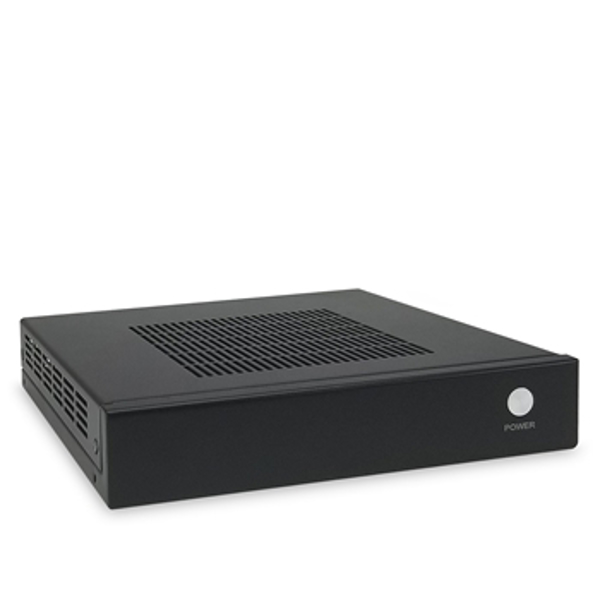

10A Series Fanless Aluminum Chassis
• Dimensions:7.5"(D) x 7.5"(W) x 1.4"(H)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 2.5 lb(Net) and 8 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Option: 138D 7"x7.2"x1.38H
• Option: 300A w/Slim DVD Bay, 300B Aluminum 2.1" H
• Option: AIO-J24 All-in-one PC
• Option: 1000 Aluminum Form Factor
• Option: 175C Case 1.75" H , 175F Fanless 1.75" H
• Option: 400B Aluminum 2.6"H, 400A w/Slim DVD Bay, 400R with RISER Slot, 400S Swap Bay 2x2.5", 450S Swap/DVD+uLP
• Option: 500B 3.5" H w/LP Slot , 500F Dust Filter, 500C LCD Control, 500S 2U LP/RISER, 500A DVD Bay +LP Slot, 500D with 5.25" Bay
• Option: 600B tall Slot, Hd bay
• Option: 1U-1000U Low Cost Mini Server with PCIe 16x Slot, 1U-1000S Low Cost Mini Server with PCIe 16x Slot ,1U-1000D 5.25"CD/swap ,1U-1000T 2-in-1U Twin

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
• Embedded-Longevity
Environment

• Operating Temperature: 0 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
