H610A

12th Gen Slim Socket-S, 2.5GbE LAN+Dual-Band WiFi, HDMI® 2.1+VGA+LVDS, M.2-2280 + M.2-2230
Featured Highlights
  Intel® Core™ i9/i7/i5/i3 Socket-S Processor LGA1700
  Intel® H610 Chipset
  Intel® Xe Graphics, HDMI® 2.1+VGA+LVDS
  2 DDR4 DIMM for up to 64GB
  SATA-6Gb/s, M.2 NVMe/SSD
  2.5GbE LAN, 802.11ac Dual-Band WiFi/BT
  4 USB 3.0, 2 USB 2.0
  7.1 ALC897 Audio Codec
  DC19V Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10
  Applications: AI Edge, Digital Signage, Entertainment PC, Audio/Video PC, Set Top Box, High-end Gaming, etc.


SKU: H610A
Product specifications
Processor

• 12th Generation Intel® Socket-S Series LGA1700 Alder Lake
• Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache
• Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache
• Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache
• Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache
• Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M

Chipset

• Intel® H610 Chipset

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC Dual Channel I/O
• Supports up to 64GB (typical 64GB with 2 x 32GB DIMMs)

Graphics

• Intel® 12th Gen Xe Graphics UHD 770/730/710 (based on CPU)
• 1 x HDMI® 2.1 port, max. resolution up to 4096x2160 at 60Hz
• 1 x VGA port
• 1 x LVDS header

Network

• 1 x Realtek® RTL8125B 2.5 Gigabit (10/100/1000/2500 Mb/s) LAN
• Intel® 802.11ac Dual-Band (2.4/5.0 GHz) WiFi with Bluetooth by M.2 Module
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe)

Audio

• Realtek® ALC897 Audio Codec (7.1)
• 3 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x HDMI® 2.1 port
• 1 x VGA port
• 1 x LAN port
• 3 x 3.5mm Stereo Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x USB 2.0 header
• 1 x LVDS header

System BIOS

• AMI® UEFI BIOS

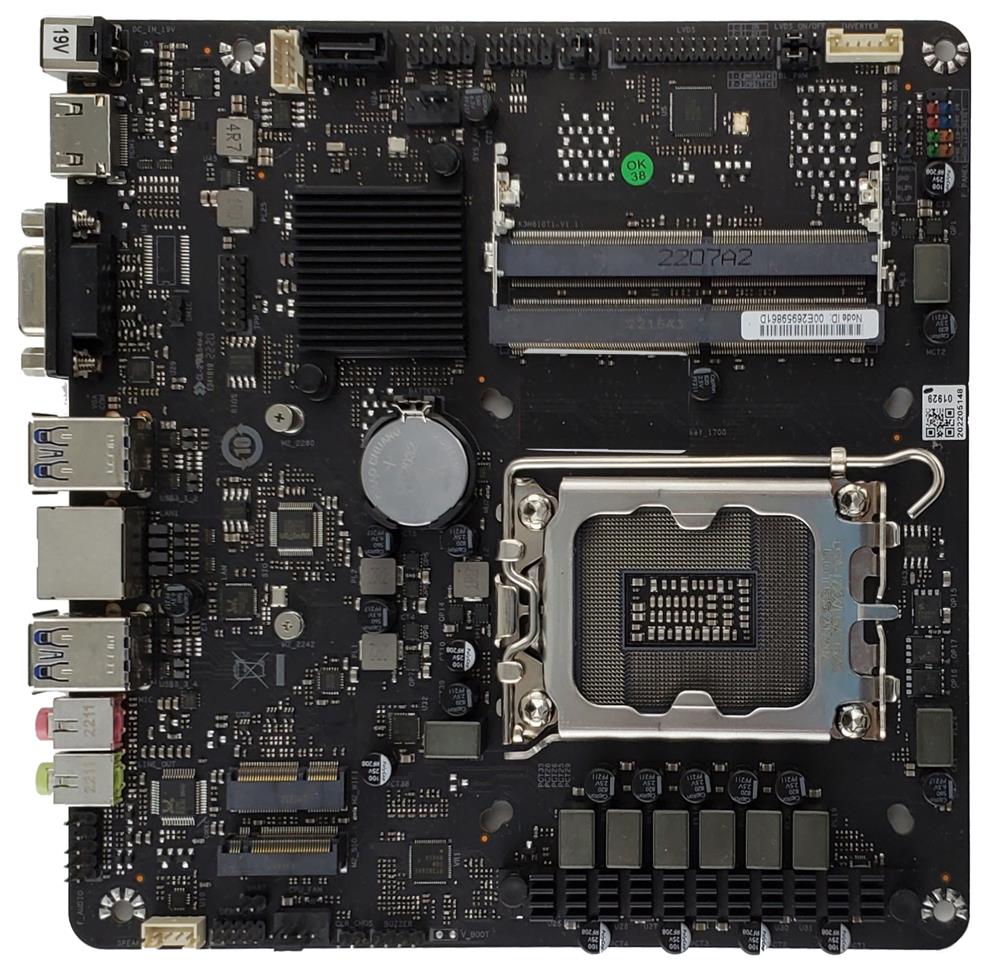

Systemboard

Small Form Factor
Back I/O

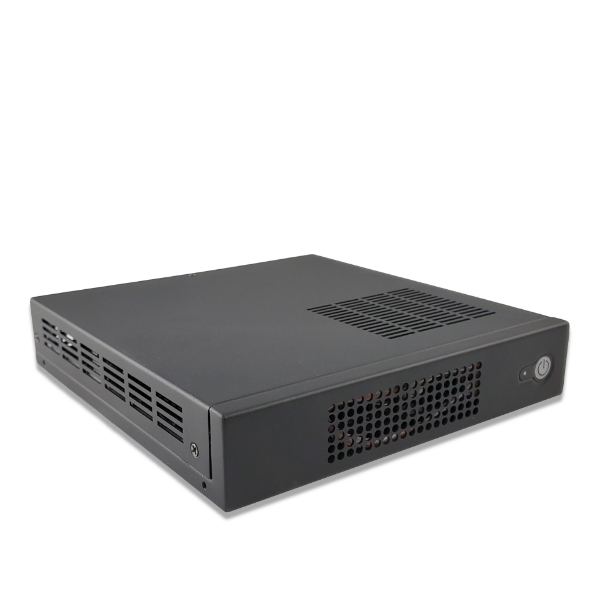

Chassis

140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC19V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10 64-bit,

Application

• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, Set Top Box, High-end Gaming, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
