Think Big. Go Small. Eco-Smart Computing

H310AEL2

9th Gen. Socket-S i9/i7/i5/i3, 2x4K Display DP+HDMI, 2LAN 2COM 8USB, PCIe 3.0 Slot+mSATA+M.2
Featured Highlights
  Intel® Core™ i9/i7/i5/i3 Processor LGA1151
    8/9th Gen. Coffee Lake Platform
  Intel® H310/Q370
  Intel® UHD 630 Graphics,4K Resolution, HDR 10Bit color, HDMI+DP+VGA/H
  2 DDR4 SO-DIMM for up to 64GB Memory
  PCIe 3.0 x4 Slot
  2 Intel® Gigabit LAN + M.2-WiFi
  4 USB 3.0, 6 USB 2.0
  2 SATA-6Gb/s, mSATA
  5.1 ALC662 Audio Sound
  Power Supply: DC12-19V Input
  OS Support: Windows 11/10, IoT, Linux
  Applications: Set Top Box, Network Appliance, Digital Signage Player, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.


Starting at $549.04

SKU: H310AEL2
Product specifications
Processor

• Intel® 9th/8th Generation Coffee Lake processor
• LGA1151 socket series with 35W, 65W to 95W TDP
• Intel® Core™ i9-9900K, 9900, 9900T 8C/16T series 16M Cache
• Intel® Core™ i7-9700, 9700T, 8700, 8700T series 6C/12T 12M Cache
• Intel® Core™ i5-9600, 9500, 9400T, 8400, 8400T series 6C/6T 9M Cache
• Intel® Core™ i3-9300, 9100, 9100T, 8100, 8100T series 4C/4T 6M Cache
• Intel® Pentium® Gold G5600 series 2C/4T 4M and Celeron® G4900 series 2C/2T 2M

Chipset

• Intel® H310 Express Chipset
• Option: Intel® Q370 Express vPro® Technology

Graphics

• Intel® UHD 630 Graphics, 4K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics port
• 1 x VGA header

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB (however 32GB is most practical)
Network

• 2 x Intel® I211 Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x4 slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s

Audio

• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 2 x USB 3.0 ports
• 4 x USB 2.0 ports
• 1 x HDMI® port
• 1 x DP
• 2 x LAN ports
• 1 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x USB 2.0 headers
• 2 x RS232/RS485 Serial COM headers
• 1 x VGA header
• 1 x S/PDIF header

Other I/O

• 2 x USB 3.0 ports (Front)

Function

• 1 x TPM header

System BIOS
• AMI® UEFI 64MBit BIOS
• Watchdog supported

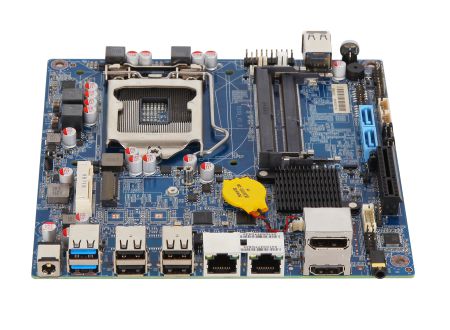

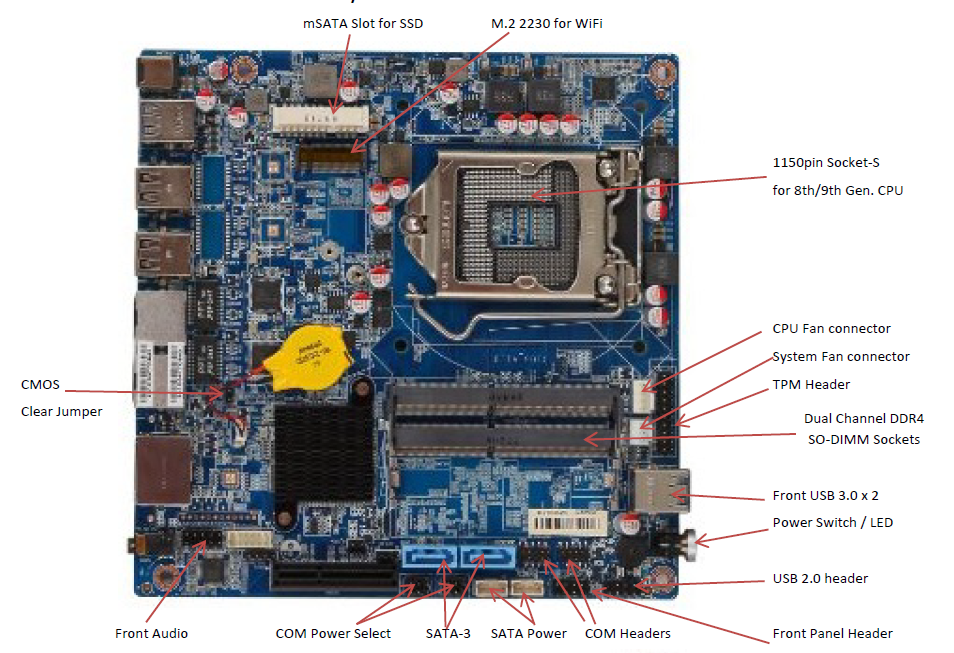

Systemboard
Small Form Factor

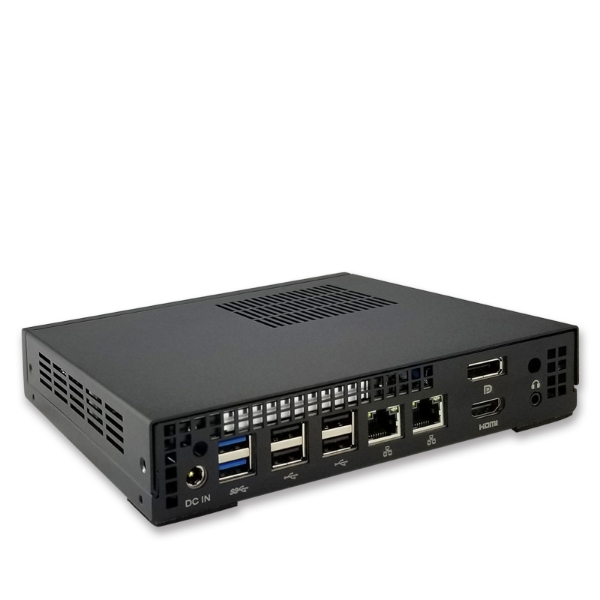

Back I/O
Chassis

138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb (Net) 10 lb (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA/wall mount brackets
• Option: 100F Fanless 1.4" Slim
• Option: 400R with RISER Slot 400S Swap Bay 2x2.5"
• Option: 1750C with slot
• Option: 1750F Fanless with slot
• Option: 236F3 Fanless

Power Supply

• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, IoT, Linux

Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
