Think Big. Go Small. Eco-Smart Computing

Q370L3E2

Coffee Lake vPro®, UHD Graphics 2DP+DVI+LVDS, 4SATA+3M.2+4COM, 3LAN+12USB+2PCIe
Featured Highlights
  Intel® Core™ i9/i7/i5/i3 Processor LGA1151
    8/9th Gen. Coffee Lake Platform
    Low-voltage energy efficiency Eco-smart computing
  Intel® Q370 Chipset, Intel® vPro® Technology,
  Intel® UHD 630 Graphics, 2 DP+DVI+LVDS/H
  2 DDR4 SO-DIMM for up to 64GB Memory
  4 SATA-6Gb/s, M.2 SSD/NVMe
  PCIe 3.0 x16+PCIe 3.0 x4
  3 Gigabit LAN+M.2-Wifi+M.2-4G
  4 USB 3.1, 2 USB 3.0, 6 USB 2.0
  ALC662 Audio Sound, RS485 COM
  DC12V 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
      Optional 90V-240V 220W or higher wattage AC Power Supply
  OS Support: Windows 11/10, IoT, Linux
  Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.


SKU: Q370L3E2
Product specifications
Processor

• Intel® 9th/8th Generation Coffee Lake processor
• LGA1151 socket series with 35W, 65W to 95W TDP
• Intel® Core™ i9-9900K, 9900, 9900T 8C/16T series 16M Cache
• Intel® Core™ i7-9700, 9700T, 8700, 8700T series 6C/12T 12M Cache
• Intel® Core™ i5-9600, 9500, 9400T, 8400, 8400T series 6C/6T 9M Cache
• Intel® Core™ i3-9300, 9100, 9100T, 8100, 8100T series 4C/4T 6M Cache
• Intel® Pentium® Gold G5600 series 2C/4T 4M and Celeron® G4900 series 2C/2T 2M

Chipset

• Intel® Q370 Express vPro® Technology

Graphics

• Intel® UHD 630 Graphics
• Support 3 Graphics ports, 1 header
• 2 x DP 4K 60Hz Graphics ports
• 1 x DVI port
• 1 x LVDS header

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® I219V Gigabit (10/100/1000 Mb/s) LAN
• 2 x Intel® I210AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• 1 x M.2 2230 (for WiFi+BT / 4G-LTE Moudle Pair with SIM Card)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x16 slot
• 1 x PCI Express 3.0 x4 slot
• 1 x M.2 2230 (for WiFi/BT Module or Other Module)
• 1 x M.2 2230 (for WiFi+BT / 4G-LTE Moudle Pair with SIM Card)
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe)
• *Only one M.2 2230 slot can be used at a time. Cannot be used simultaneously*

Storage

• 4 x SATA 6Gb/s
• 1 x M.2 2280/2242 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC888 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.1 ports
• 2 x USB 2.0 ports
• 1 x Serial COM port
• 2 x DP
• 1 x DVI port
• 3 x LAN ports
• 2 x 3.5mm Audio jacks

Internal I/O

• 2 x USB 3.0 headers
• 4 x USB 2.0 headers
• 3 x Serial COM headers (COM1/COM2 only support RS232, COM3/COM4 support BIOS to choose RS232/RS485/RS422 function)
• 1 x Parallel port header
• 1 x LVDS header

Function

• 1 x 4in/4out GPIO header

System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported

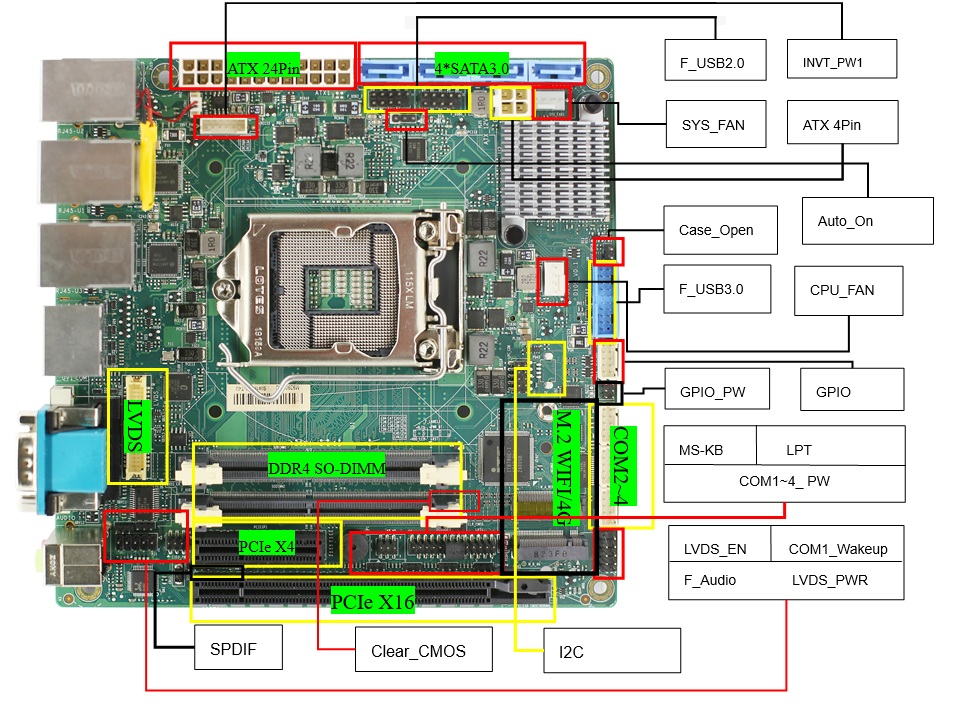

Systemboard
Small Form Factor

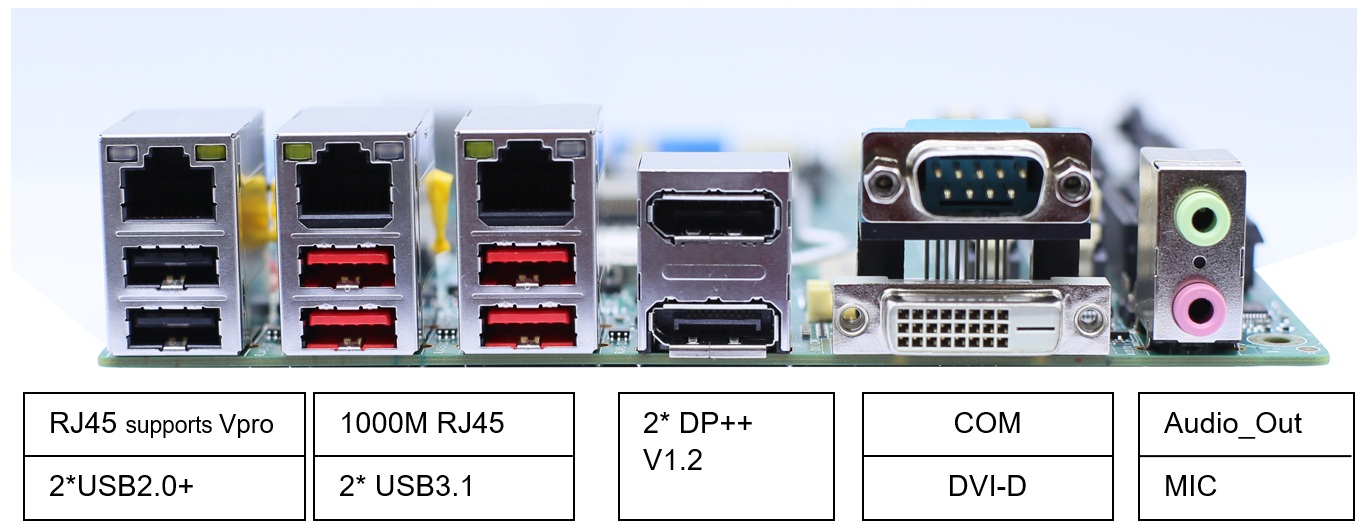

Back I/O
Chassis

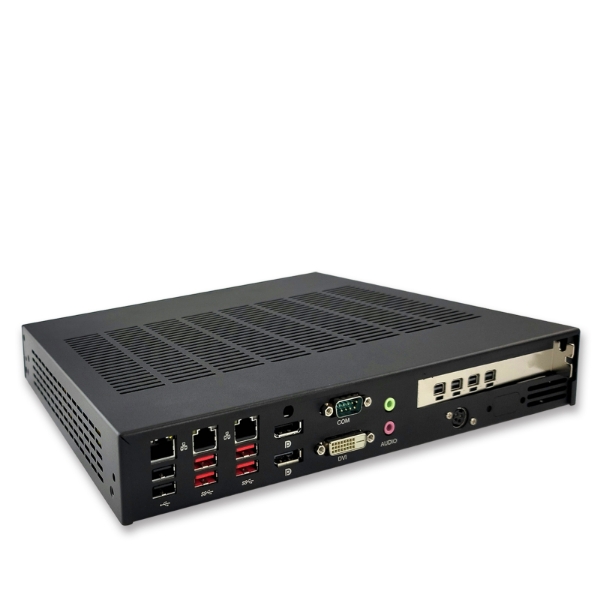

175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb (Net) 10 lb (gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
175C Case 1.75" H 175F Fanless 1.75" H
• Option: 236F3 Aluminum Form Factor
• Option: 300B Aluminum 2.1" H, 400B Aluminum 2.6"H, 500B 3.5" H w/LP slot, 1750C with slot

Power Supply

• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, IoT, Linux

Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment

• Operating Temperature: -20 to +60 C
• Non operating temperature: -20 to +75 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
