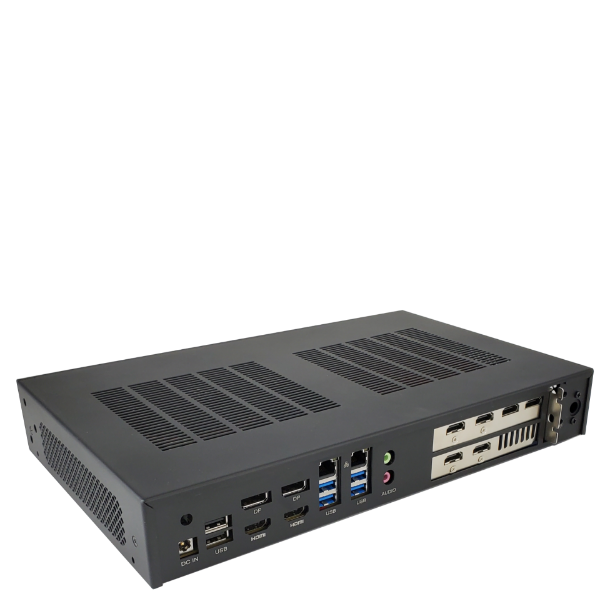

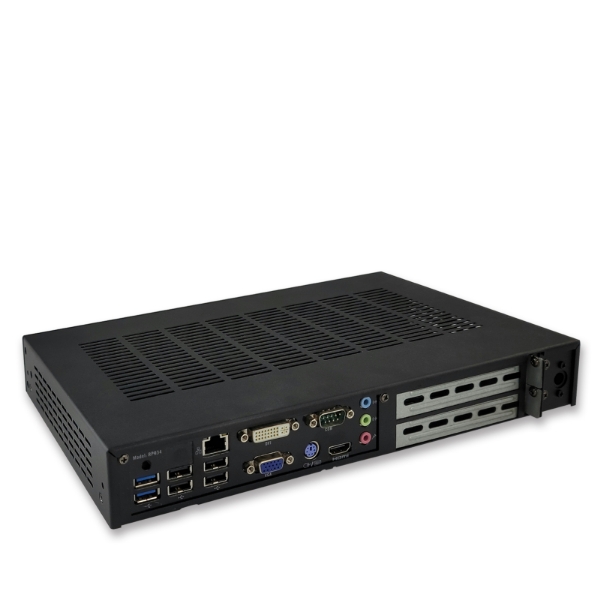

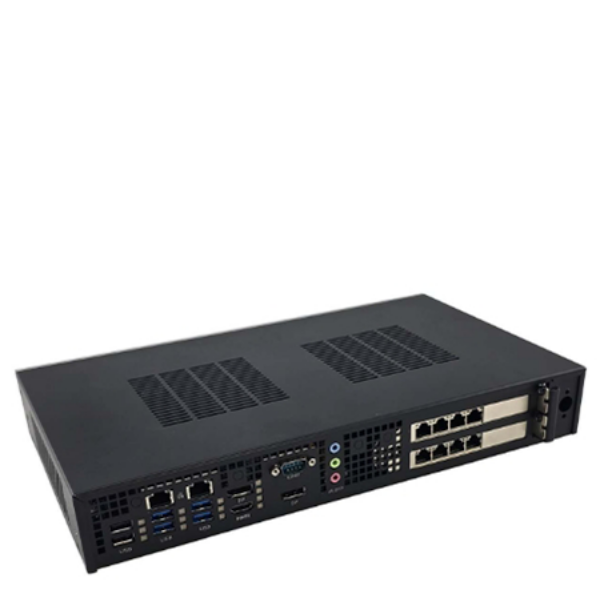

1750C/1750R with RISER

12.25"(W) x 8"(D) x 1.75"(H) Small Form Factor PC with full size slot

Featured Highlights
	Dimensions: 12.25"(W) x 8"-9.9"(D) x 1.75"(H), variable width size to support different models
	Xeon, Core i9/i7/i5/i3/Pentium/Celeron, AMD Family
	Socket-S, u-series, J/N-series, AMD-series
	Full-size RISER Slot
	Up to 2 x HD/SSD Drives
	DC12V up to 200W DC Power Adapter
	Small Platform, High-Performance, GPU Computing
	Color: Black (Custom colors available with special order)
	Applications: AV Appliance, Entertainment, Videowall, Digital Signage, Surveillance, Security, Medical Equipment, VoIP, Transportation, IoT.

SKU: 1750C/R

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
Q470L2G	11th/10th Socket 1200	Q470	2 DDR4SO	Intel UHD	1 Intel\i219V+1 Intel\i211	4 H	4 R+2 F	1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP)	1 MiniPCIe+1 PCIe 16x	GPIO+TPM	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H110L2	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H110L2C12	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2 R+2 H	4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
H110AEL2/i1000A12	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Intel\i219V+1 Intel\i211AT	4 H	4 R	1 DP+1 HDMI+1 VGAH	MiniPCIe+PCIe 4x	GPIO	7.1 ALC887
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Q170A	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Slim-H110A2	6/7th Socket 1151	H110	1 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek\RTL8111F	4 H	4 R	1 HDMI+1 VGA+1 LVDS	1 MiniPCIe+1 MiniPCIe-F		5.1 ALC662
H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
H8700L8-1U	Socket 1150 Haswell	H87	2 DDR3SO	Intel HD 5000	8 Intel/F	2 F+4 H	2 H	1 VGA	MiniPCIe+PCIe 8x
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
E3-1585L4	Xeon® E3-1585V5	C236 Express Chipset	4 DDR4	Iris® 6200 Pro Graphics	3 x i210+1 x i219LM LAN	1 H	2 R+1 H	1 HDMI+1 VGA	PCIe x16		7.1 ALC887
X570E	Socket AM4 Ryzen 3rd	AMD X570	2 DDR4	Radeon Vega	1 Intel\i211AT	2 H	4 R+2 H	1 DP+2 HDMI2.0	PCIe 16x		7.1 ALC1220
2550iD	D2550	NM10	2 DDR3SO	Intel HD 3600	1 Broadcom	4 R+2 H		1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
2600L2	N2600	NM10	1 DDR3SO	Intel HD 3600	2 Realtek	4 R+2 H		1 VGA	2 MiniPCIe+PCI	2xPS/2	5.1 ALC662
