Z690L2V4

12th Gen Socket-S, PCIe 5.0 x16 slot, 2 x NVMe 4.0 DP1.4 + HDMI 2.1, Dual LAN 2.5G+1G
Featured Highlights
  Intel® Core™ i9/i7/i5/i3 Socket-S Processor LGA1700
  12th Gen. Alder Lake Platform
  2 DDR4 DIMM for up to 64GB Memory
  4 SATA-6Gb/s -RAID, M.2 NVMe 4.0
  PCIe 5.0 x16
  Dual LAN (Dragon 2.5 Gigabit LAN + Intel® Gigabit), 11ax WiFi-6E+BT
  4 USB 3.2, 2 USB 2.0, Type-C USB 3.2 Gen 2x2 (20Gb/s)
  7.1 ALC897 Audio Sound
  DC12V 80W or higher wattage Power Adapter(UL/CE/FCC Certified)
      Optional 90V-240V 220W or higher wattage AC Power Supply
  OS Support: Windows 10/11
  Applications: AI Edge, Digital Signage, Network Security, Audio/Video PC, Set Top Box, High-end Gaming, etc.


SKU: Z690L2V4
Manufacturer part number: - 12th Gen. Alder Lake Edge AI, Digital Signage
Product specifications
Processor

• 12th Generation Intel® Socket-S Series LGA-1700 Alder Lake
• Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache
• Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache
• Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache
• Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache
• Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M

Chipset

• Intel® Z690 Chipset

Memory

• 2 x DDR5 U-DIMM
• 4800MHz unbuffered Dual Channel I/O
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Supports up to 128GB

Graphics

• Intel® UHD 770/730/710 Graphics (based on CPU)
• Supports 4 Graphic ports
• 2 x HDMI 2.0 with max. resolution up to 4096x2160 at 60Hz
• 2 x DP 1.4 with max. resolution up to 7680x4320 at 60Hz

Network

• 2 x Realtek® RTL8125B Gigabit 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth by Intel® AX211
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 5.0 x16 slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for PCIe module Gen4x4-64 Gb/s)
• 1 x M.2 2280 (for SATA3 6.0 Gb/s module or PCIe module Gen4x4-64 Gb/s)

Storage

• 4 x SATA 6Gb/s
• 1 x M.2 2280 (for PCIe module Gen4x4-64 Gb/s)
• 1 x M.2 2280 (for SATA3 6.0 Gb/s module or PCIe module Gen4x4-64 Gb/s)

Audio

• Realtek® ALC897 Audio Codec (7.1)
• 3 x 3.5mm Analog Stereo Audio jacks

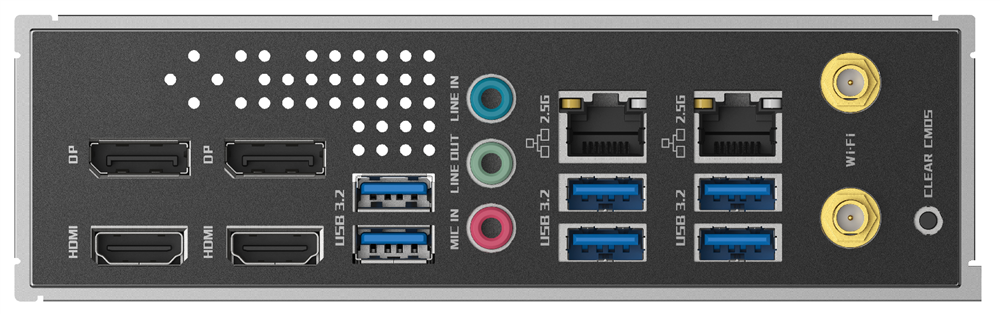

Back Panel I/O

• 6 x USB 3.2 Gen2 ports
• 2 x DP 1.4 ports
• 2 x HMDI 2.0 ports
• 2 x LAN ports
• 1 x Clear CMOS Button
• 3 x 3.5mm Analog Stereo Audio jacks

Internal I/O

• 2 x USB 3.0 headers
• 3 x USB 2.0 headers
• 1 x Type C USB 3.2 Gen2x2 header
• 1 x S/PDIF header
• 4 x PWN Fan headers

System BIOS

• UEFI BIOS

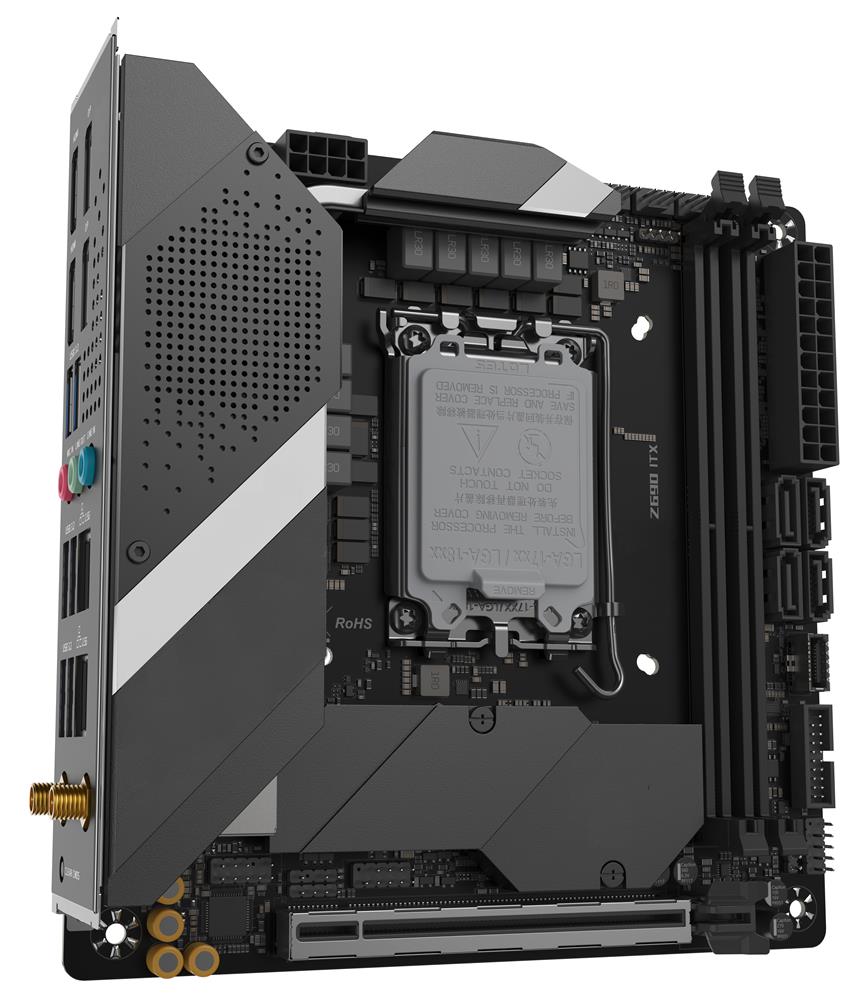

Systemboard

Small Form Factor
Back I/O

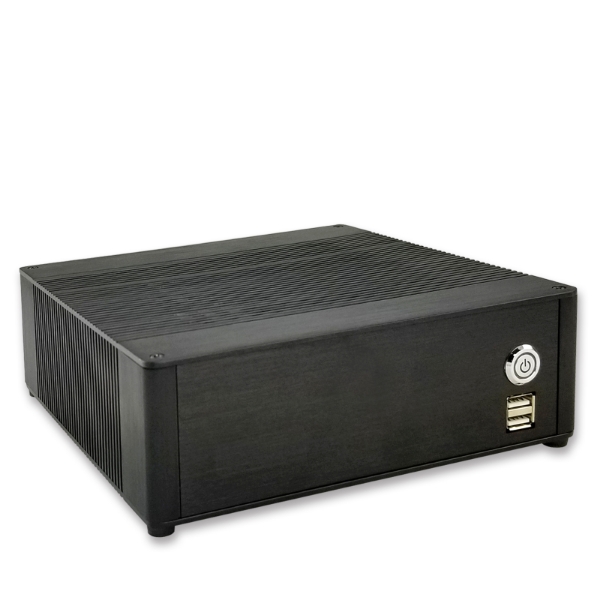

Chassis

400B Small Form Factor Aluminum Chassis
• Dimensions: 2.6"(H)x8.1"(W)x8.1"(D) inch Weight: 1.6 lb. Net 10 lb (with packaging)
• Drive Bay: 2.5"
• Color: Black as default color, option: Custom color, Custom logo available. MOQ required
• Supports VESA, wall mount or rackmount bracket
• Option: 175C Case 1.75" H, 300B Aluminum 2.1" H, 450S Swap/DVD+uLP, 500B 3.5" H w/LP slot, 500S 2U LP/RISER, 550PS slot+1U P/S, 600B tall Slot, Hd bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER
• Option: 236F3 Fanless Chassis

Power Supply

• Power: DC12V 80W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11 64-bit

Application

• Digital Signage, Network Security, Edge AI, Audio/Video PC, Set Top Box, High-end Gaming, etc.

Environment

• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
