i2314

12th Gen. Intel® H-Series i9/i7, NVIDIA® RTX3050 Graphics ,2 HDMI 3 M.2 slots, 4 USB 3.0 + 4 USB 2.0+ Type-C
Featured Highlights
  12th Gen. Intel® Core™ i9/i7 H-Series Processor
  Intel® Alder Lake-H Chipset
  Intel® UHD + On board NVIDIA® RTX3050, 2 HDMI + Type-C
  2 DDR4 SO-DIMM for up to 64GB Memory
  2 M.2 NVMe/SSD, 1 x 2.5" SATA 3.0 HDD
  Gigabit LAN, M.2-WiFi/BT
  4 USB 3.0, 4 USB 2.0, Type-C
  5.1 ALC662 Audio Sound
  DC19V Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 8/10/11, Linux
  Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

SKU: i2314
Product specifications
Processor

• Intel® Core™ i9-12900H 3.80/5.00GHz 14Core 20Threads 24M 35/45W
• Intel® Core™ i7-12700H 3.50/4.70GHz 14Core 20Threads 24M 35/45W

Chipset

• HM670 Chipset

Graphics

• NVIDIA® RTX3050 Graphics Processor with 4GB or 8GB Graphics Memory
• Intel® 12th Gen Iris® Xe Graphics with Deep Learning and VPU technologies
• Multi-display for up to Triple monitors
• 2 x HDMI® 2.0 ports, supports 4K 60Hz
• 1 x Type-C (HDMI® 2.1 or DP 1.4 signal for 8K video)
• 1 eDP header for Panel application

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac/n/g WiFi with Bluetooth 4.0
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 2 x M.2 2280 (for PCIe 4.0 NVMe/SSD)

Storage

• 1 x M.2 2280 (for PCIe 4.0 SSD)
• 1 x 2.5" SATA 3.0 HDD

Audio

• Realtek® ALC662 6-channel (5.1)
• 1 x 3.5mm Analog Stereo Audio jacks

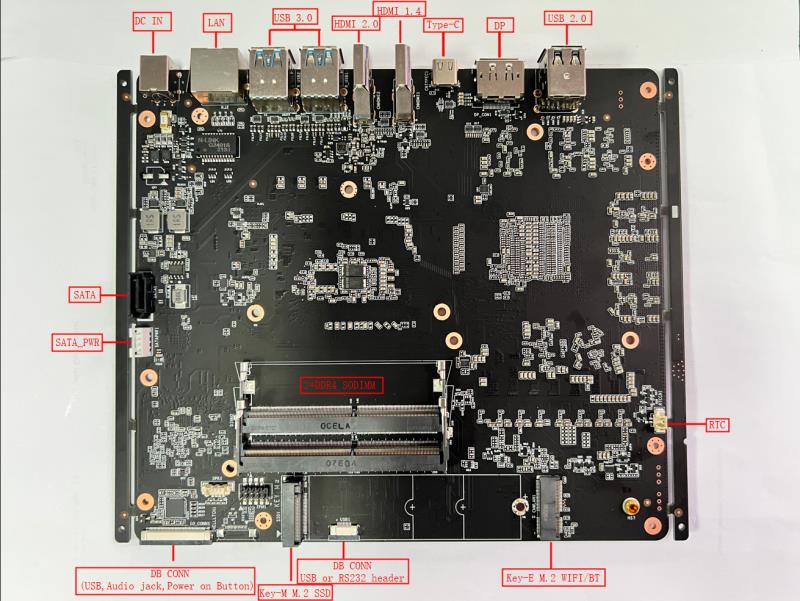

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x Type-C port
• 2 x HDMI® 2.0 ports
• 1 x LAN port
• 2 x 3.5mm Audio jack
• 1 x DC Power Connector

Other I/O

• 1 x 3.5mm Audio jack (Front)
• 2 x USB 2.0 ports (Front)
• Option: Additional 2 x USB 2.0 + RS-232 ports (Front)

System BIOS

• AMI® UEFI 128MBit BIOS
• Watchdog supported

Systemboard

Small Form Factor

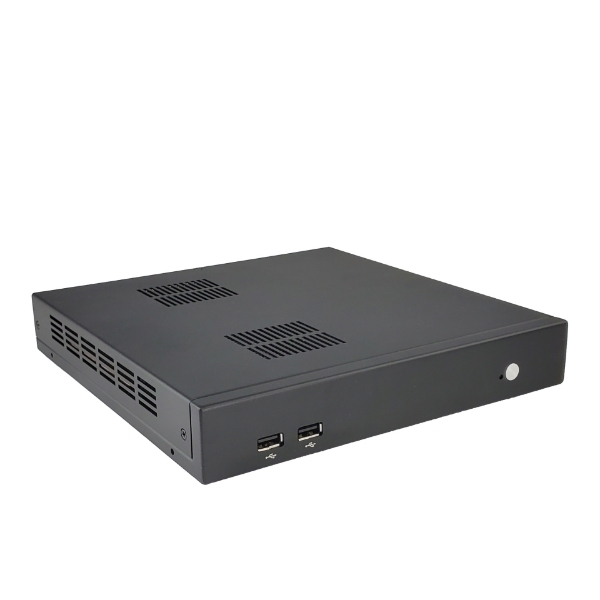

Chassis

• Dimensions: 8.5"(W) x 8.4"(D) x 1.4"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU and GPU Fans with Heatsinks
• Color: Grey as default color, option: Black, Silver, Gold. Other custom color available

Power Supply

• Power: DC19V Power Adapter 7.4mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 8/10/11, Linux

Application

• GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
