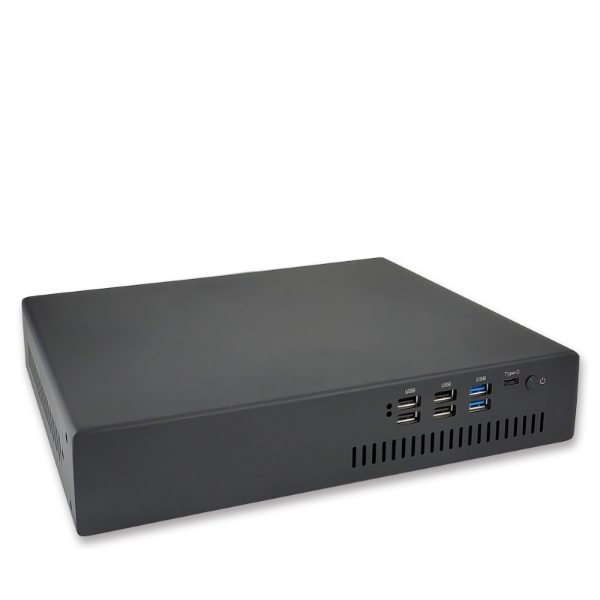

G3070-H12-i7

12/13th Gen. Intel® H-Series i7, Nvidia® RTX4060-8G/3070M-8G/3060M-12G Graphics, 2 M.2 slots+WiFi/BT, 6 USB 3.0+2 USB 2.0+Type-C
Featured Highlights
  12th/13th Gen. Intel® Core™ i7 H-Series Processor
  Intel® Alder Lake-H Chipset
  NVIDIA® RTX3070M/3060M(2 HDMI + 2 DP)/RTX 4060(3DP+1HDMI) + Onboard Intel® Iris® Xe , Type-C
  2 DDR5 SO-DIMM for up to 128GB Memory
  2 M.2 NVMe/SSD, supports 1 x 2.5" HDD/SSD
  Gigabit LAN, M.2-WiFi/BT
  6 USB 3.0, 2 USB 2.0, Type-C
  7.1 ALC892 Audio Sound
  DC19V/15.79A Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11, Linux, etc.
  Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.
SKU: G3070-H12-i7 i2315
Product specifications
Processor

• Intel® Core™ i7-13620H 3.60/4.90GHz,10Core 16Threads 24M 35/45W
• Intel® Core™ i7-12650H 3.50/4.70GHz 10Core 16Threads 24M 35/45W
• Intel® Core™ i7-12700H 3.50/4.70GHz 14Core 20Threads 24M 35/45W

Chipset

• Intel® Alder Lake-H series Chipset

Graphics

• NVIDIA® GeForce RTX4060(3 DP1.4+1 HDMI2.1)/3070M/3060M(2 DP1.4 +2 HDMI2.0) Graphics Processor with 8GB/8GB/12GB Graphics Memory
• Multi-display for up to Quad 4K monitors
• 2 x HDMI® 2.0 ports, supports 4K 60Hz,
• 2 x DP 1.4 ports, supports 4K 60Hz
• Intel® 12th Gen Iris® Xe Graphics with Deep Learning and VPU technologies
• 1 x Type-C port (HDMI® 2.1 or DP 1.4 signal for 8K video)

Memory

• 2 x DDR5 SO-DIMM
• 4800MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 128GB

Network

• 2 x Realtek® RTL8111DL Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac/n/g WiFi with Bluetooth 4.0/4.2
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCIe 4.0 x16 slot (for Nvidia® RTX4060/3070M/3060M GPU)
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD)

Storage

• 2 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD)
• 1 x 2.5" 7-9mm HDD/SSD

Audio

• Realtek® ALC892 (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x HDMI® 2.0 ports
• 2 x DP 1.4 ports
• 2 x LAN port
• 2 x 3.5mm Audio jack
• 1 x DC Power Connector

Other I/O

• 4 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 1 x Type-C port (Front)

System BIOS

• AMI® BIOS
• Watchdog supported

Chassis

• Dimensions: 12.6"(W) x 9.4"(D) x 2.2"(H), Weight: 5.5 lb. (Net) 10 lb. (gross with packaging)
• Cooling: Slim CPU and GPU Fans with Heatsinks
• Color: Grey as default color, option: Black, Silver, Gold. Other custom color available

Power Supply

• Power: DC19V 15.79A 300W Power Adapter 2.5mm (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11, Linux, and etc.

Application

• GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

Environment

• Operating Temperature: 0 to +70 C
• Non operating temperature: -20 to +80 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
