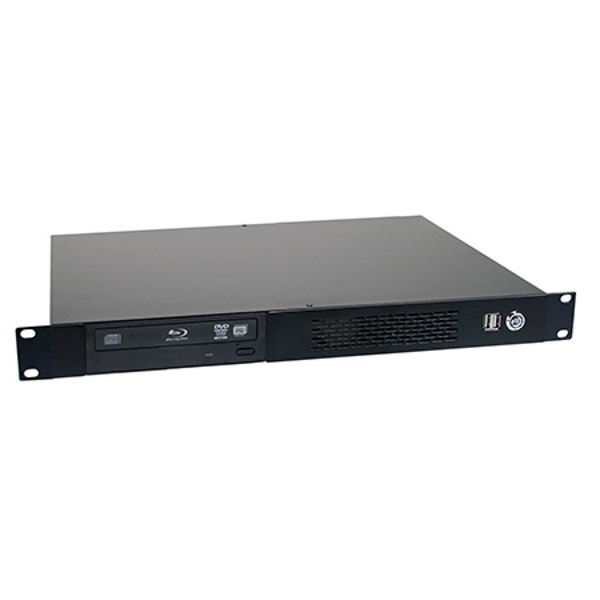

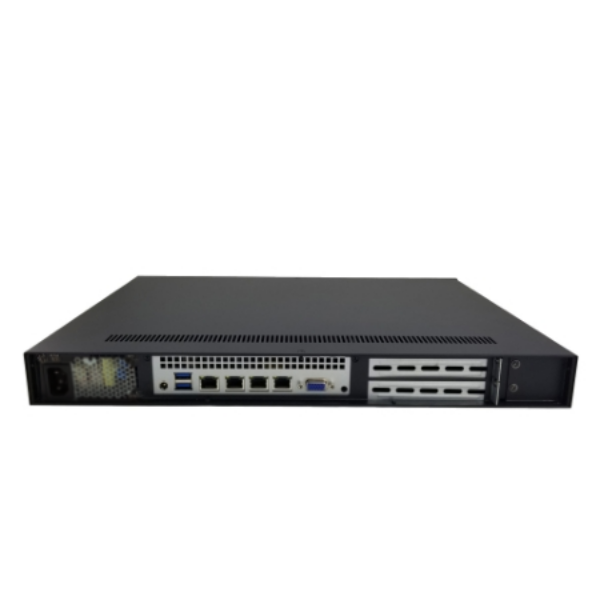

1U-1000D

5.25"CD/swap
Featured Highlights
Dimensions:
17.2"(W)  x 12.9"(D) x 1.75"(H)
One 2.5/3.5/5" HD/Solid State Drive Bay
AC 150-400W Power input
Steel+Aluminum, Weight: 13 Lbs
Color: Black (Custom colors available with special order)
Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone
SKU: 1U-1000D
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
C3338L4 Atom-C (BGA-1310) Denverton C3000 2 DDR4 128G/1Ch Aspeed AST2400 4x1Gbit Intel LAN 2 R 1 H IPMI 2.0 (AST2400) 1x4 3.0 TPM option
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
H110L2 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H8100L2/H8100L3 Socket 1150 Haswell H81 2 DDR3 Intel HD 5000 2 Realtek 4 R+1 H 2 R 1 HDMI+1 DVI+1 VGA 1 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
B8500L4/H8100L4 Socket 1150 Haswell B85 4 DDR3 Intel HD 5000 4 Intel\i350 4 H 2 R 1 HDMI+1 DP+1 VGA 1 MiniPCIe+PCIe 8x TPM 5.1 ALC662
H8700L8-1U Socket 1150 Haswell H87 2 DDR3SO Intel HD 5000 8 Intel/F 2 F+4 H 2 H 1 VGA MiniPCIe+PCIe 8x
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
J4125 - J5040AEL2 J4105 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek+1 Intel 1 R+4 H 2 R 1 HDMI+1 DP+1 eDP/H+1 LVDS/H PCIe x2, 2 M.2m, MiniPCIe full size GPIO 5.1 ALC662
N3050A1 N3050 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
N3150A1 N3150 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
J1900AEL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek\RTL8111F 2 R+2 H 1 R 2 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662 7.1 ALC892
J1900AE J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 4 R + 3H 1 R 1 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662
J1900AL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+GPIO+1xPS/2/H 5.1 ALC662
J1900AC6 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 3 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+1xPS/2/H 5.1 ALC662
i2310 i7-6700HQ QM170 2 DDR4SO Nvidia GTX960M 1 Realtek 2 R 2 R+2 F 1 HDMI+1 DP+1 Type-C TPM Azalia Codec
i2311 6/7/8/9th Socket 1151 H310C 1 DDR4SO Nvidia GT1030 1 Realtek\RTL8111H 2 H 4 R 1 HDMI+1 LVDS/H 5.1 ALC662
