Processor
• Intel ® Core™ Ultra Processors (Series 2) (LGA1851) • Intel ® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Intel ® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W) • Supports Intel ® Hybrid Technology • Supports Intel ® Turbo Boost Max 3.0 Technology • Supports Intel ® Thermal Velocity Boost (TVB) • Supports Intel ® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration

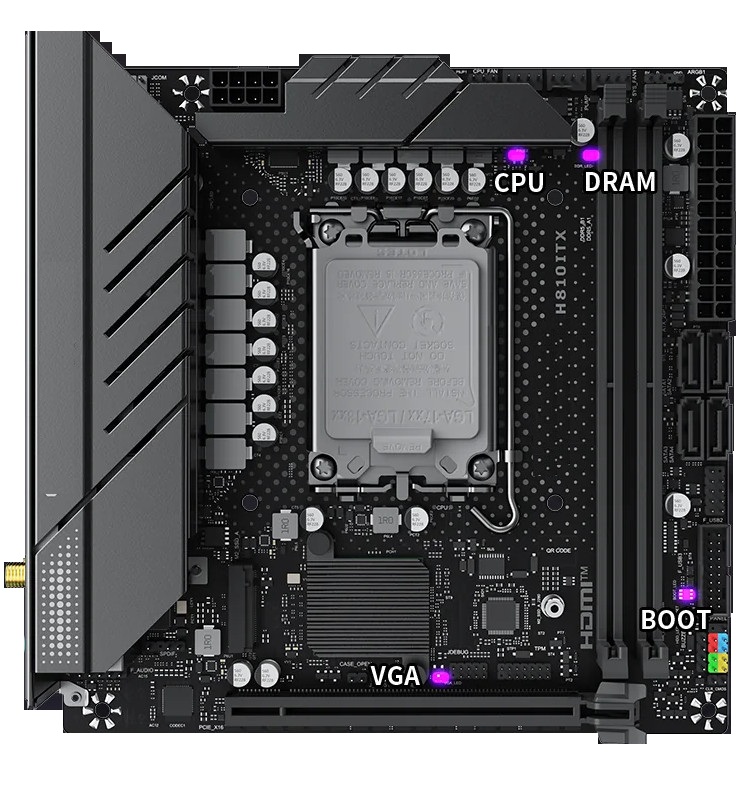

Chipset
• Intel® H810 Chipset
|
Memory
• 2 x DDR5 U-DIMM • 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MHz unbuffered non-ECC Dual Channel I/O • Supports up to 96GB
Graphics
• Intel® Xe LPG Graphics Architecture • 1 x HDMI 2.0 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 2 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** Supports two 4K displays or one 8K display
|
Network
• 1 x Realtek® RTL8125B 1 GbE (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for CNVi veritcal WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 5.0 x16 slot • 1 x M.2 2230 (for CNVi veritcal WiFi+BT Module) • 1 x M.2 2280/2242 (for PCIe 3.0 x4 NVMe)
|
Storage
• 4 x SATA 6Gb/s • 1 x M.2 2280/2242 (for PCIe 3.0 x4 NVMe)
Audio
• Realtek® ALC897 Audio Codec (7.1) • 3 x 3.5mm Analog Stereo Audio jacks
|

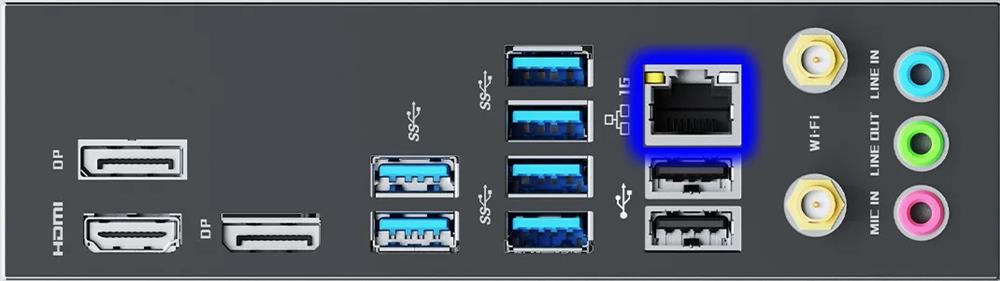

Back Panel I/O
• 4 x USB 10G Type-A • 2 x USB 5G Type-A • 2 x USB 2.0 ports • 1 x HDMI® 2.0 ports • 2 x DisplayPort 1.4 • 1 x LAN port • 3 x 3.5mm Stereo Audio jacks
Internal I/O
• 1× USB 5G 19-pin header (supports 2× USB 5G ports) • 1× USB 2.0 9-pin header (supports 2× USB 2.0 ports) • 1× Front-panel COM port header • 1× TPM header
|

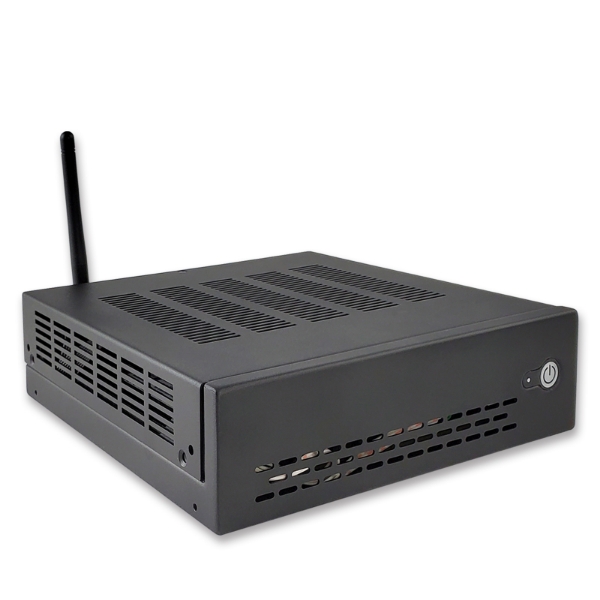

Chassis
• 400B Small Form Factor Aluminum Chassis • Dimensions: 2.6"(H)x8.1"(W)x8.1"(D) inch Weight: 1.6 lb. Net 10 lb (with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 175C Case 1.75" H, 300B Aluminum 2.1" H, 450S Swap/DVD+uLP, 500B 3.5" H w/LP slot, 500S 2U LP/RISER, 550PS Slot+1U P/S, 600B tall slot,Hd bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER • Option: 236F3 Fanless Chassis
|
Power Supply
• Power: DC12V 80W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10/11 64-bit, Linux
|
Applications
• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, High-end Gaming, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
