 Think Big. Go Small. Eco-Smart Computing

H610AL2

1.4” Slim 12th Gen. Socket-S Alder Lake, 3 Display 2 HDMI+DP, 3 M.2+2 LAN, 6 USB+2 COM
Featured Highlights
  Intel® 12th Gen. Socket-S LGA1700 Core™ i9/i7/i5/i3/Pentium®/Celeron® Series Processor
  Intel® H610 Express Chipset
  Intel® 12th Gen, UHD Graphics, 4K/5k/8K Resolution, 2 HDMI+DP/VGA
  2 DDR4 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2-NVMe/SATA
  2 Gigabit LAN, M.2-WiFi, Optional M.2-5G/4G-LTE
  4 USB 3.0, 2 USB 2.0, 1/2 COM
  7.1 ALC897 Audio Sound
  DC12V/19V 60/90W (UL/CE/FCC Certified)
  OS Support: Windows 11, IoT, Linux
  Applications: POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc.


SKU: H610AL2
Manufacturer part number: -Best Digital Signage POS/Kiosk PC
Product specifications
Processor

• Intel® 12th Generation Comet Lake Processor
• LGA1700 Socket-S series with 35W, 65W TDP
• Intel® Core™ i9-12900, 12900T 16C/24T 30M Cache
• Intel® Core™ i7-12700, 12700T 12C/20T 25M Cache
• Intel® Core™ i5-12600, 12500, 12400T 6C/12T 18M
• Intel® Core™ i3-12100, 12100T 4C/8T 12M Cache
• Intel® Pentium® Gold G7400, G7400T 2C/4T 6M
• Intel® Celeron® G6900, G6900T 2C/2T 4M

Chipset

• Intel® H610 Express Chipset

Graphics

• Intel® 12th UHD 4K/5K/8K Graphics
• Support 3 Concurrent Displays
• 1 x DP 1.4, supporting a maximum resolution of 8K 60Hz (can be replaced with VGA port)
• 2 x HDMI 2.0, supporting a maximum resolution of 4K 60Hz (2nd HDMI can be configured as DP 1.2)
• Support HDCP

Memory

• 2 x DDR4 SO-DIMM, up to 64GB
• 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O)

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® I225 or I226 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: 1 x M.2 3052/3042 (for 5G/4G-LTE Module Pair with SIM slot)

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Module Pair with SIM slot)

Storage

• 1 x SATA 6Gb/s (for 2.5" SATA SSD/HDD)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x DP/VGA port
• 2 x HDMI port
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector
• Option: Additional 2 x USB 2.0 ports with 1 LAN version

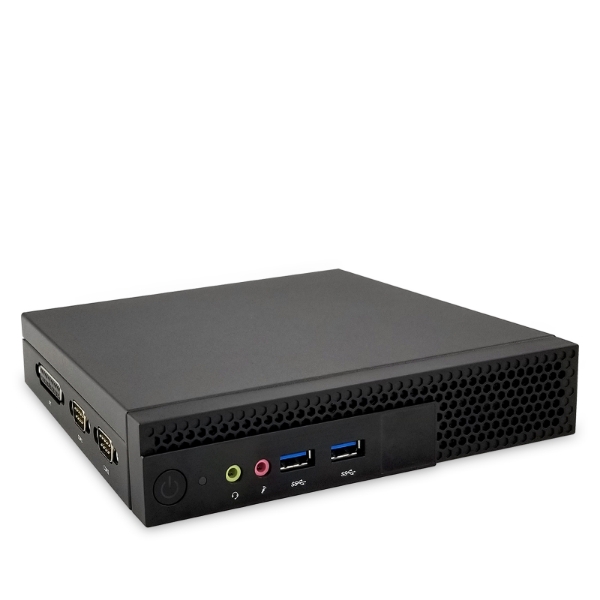

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x 3.5mm Audio jacks (Front)
• 1 x DB9 RS232 Serial COM port (Side)
• Option: 2nd RS-485/232 Serial COM port (Side)
• Option: Type-C USB 3.2 port (Side)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported

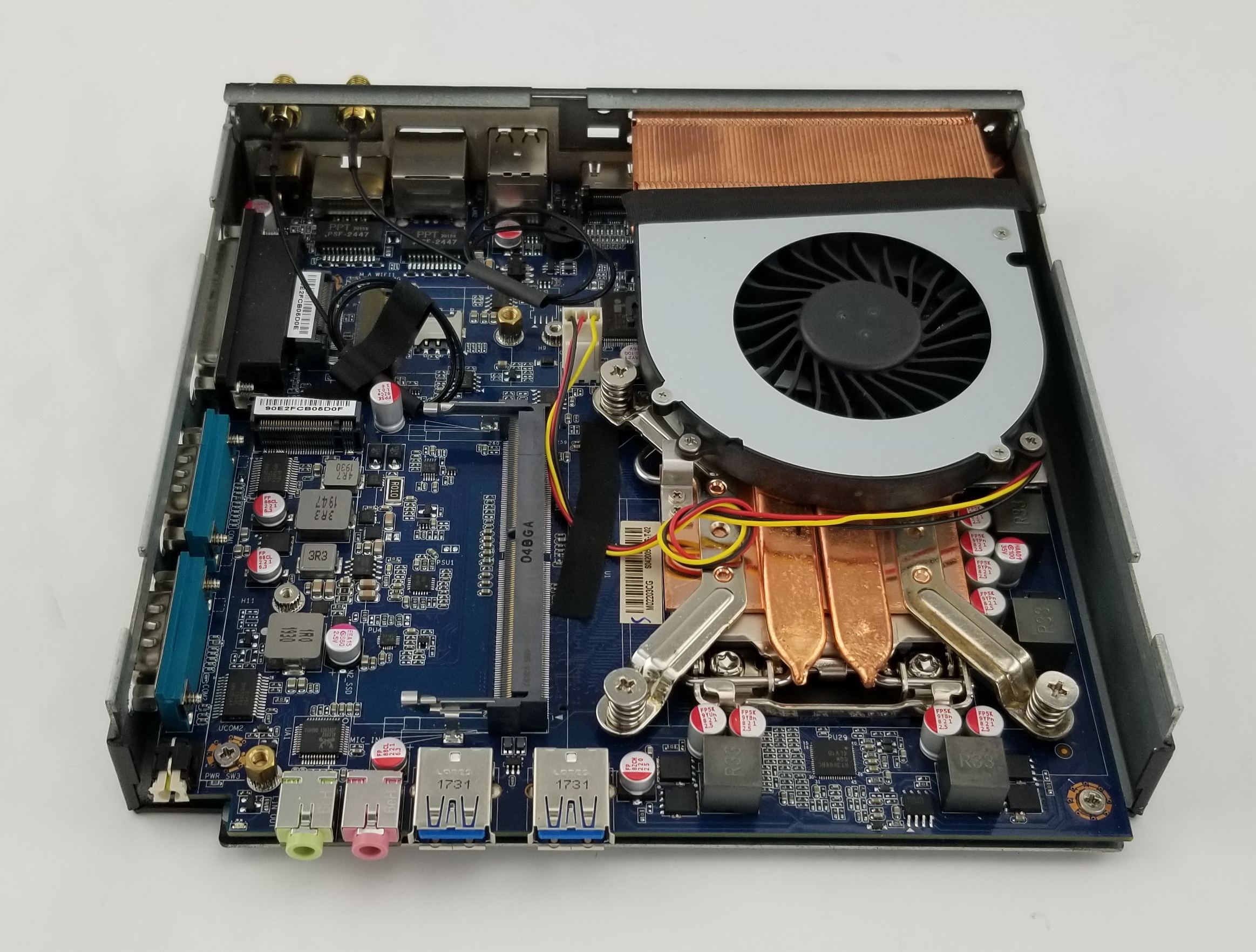

Systemboard
Small Form Factor

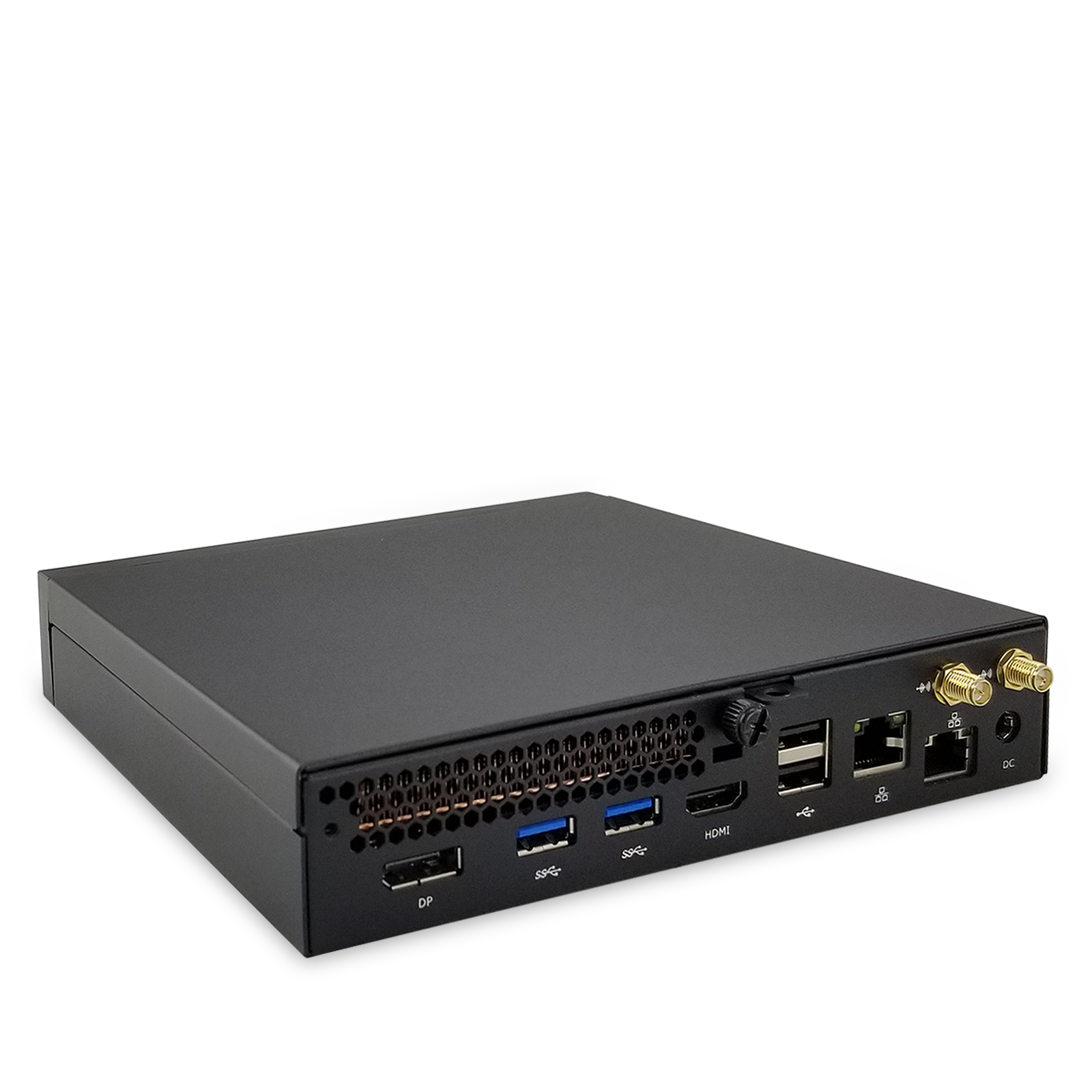

Back I/O
Chassis

140E Mini Chassis (Sheet Metal)
• Dimensions: 7"(W) x 7"(D) x 1.4"(H) / Weight: 2.9 lb (Net) 6.5 lb (Gross).
• VESA, wall mount bracket supported
• Option: 236F3 Fanless, 140D 7"(W) x 7.2"(D) x 1.4"(H), 600T Twin PC

Power Supply

• Power: DC19V or DC12V 60W/90W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11, IoT, Linux

Application

• SoHo PC, Thin Client, POS/Kiosk, Digital Signage, A/V Player, AI Edge, Set Top Box, etc.
• Embedded-Longevity

Environment

• Operating Temperature: -5 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
