H610V3

12th Gen Socket-S PCIe 4.0 x16, Multi-Displays 2 HDMI® 2.1+DP 1.4, LAN+5 USB, 4 SATA+NVMe 3.0
Featured Highlights
  Intel® Core™ i9/i7/i5 Socket-S Processor LGA1700
  Intel® H610 Chipset
  2 DDR4 U-DIMM for up to 64GB
  4 SATA-6Gb/s, M.2 NVMe/SSD
  PCIe 4.0 x16 slot
  2.5GbE LAN, M.2 WiFi/BT
  2 USB 3.2 Gen1, 3 USB 2.0
  7.1 Audio Codec
  DC12V 80W or higher wattage Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/Windows 10, Linux
  Applications: AI Edge, Digital Signage, Entertainment PC, Audio/Video PC, Set Top Box, High-end Gaming, etc.

SKU: H610V3
Product specifications
Processor

• 12th Generation Intel® Socket-S Series LGA1700 Alder Lake
• Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache
• Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache
• Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache

Chipset

• Intel® H610 Chipset

Memory

• 2 x DDR4 U-DIMM
• 3200/3000/2933MHz unbuffered non-ECC Dual Channel I/O
• Supports up to 64GB

Graphics

• Intel® 12th Gen Xe Graphics UHD 770/730 (based on CPU)
• Supports Multi-Displays
• 2 x HDMI® 2.1 ports, Max. resolution of 4096x2160 at 60Hz
• 1 x DP 1.4 port, Max. resolution of 8192x4320 at 60Hz

Network

• 1 x Realtek® RTL8125B 2.5GbE (10/100/1000/2500 Mb/s) LAN
• 1 x M.2 2230 (for CNVi veritcal WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 4.0 x16 slot
• 1 x M.2 2230 (for CNVi veritcal WiFi+BT Module)
• 1 x M.2 2280/2242 (for PCIe 3.0 x4 NVMe)

Storage

• 4 x SATA 6Gb/s
• 1 x M.2 2280/2242 (for PCIe 3.0 x4 NVMe)

Audio

• Realtek® ALC897 Audio Codec (7.1)
• 3 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.2 Gen1 ports
• 3 x USB 2.0 ports
• 2 x HDMI® 2.1 ports
• 1 x DisplayPort 1.4
• 1 x LAN port
• 3 x 3.5mm Stereo Audio jacks

Internal I/O

• 1 x USB 3.2 Gen1 header
• 1 x USB 2.0 headers
• 1 x RS-232 Serial COM header

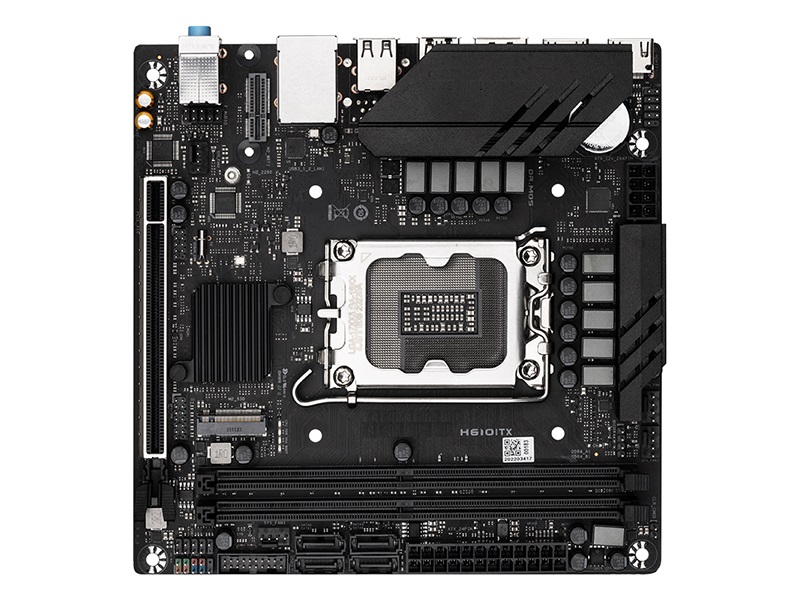

Systemboard

Small Form Factor

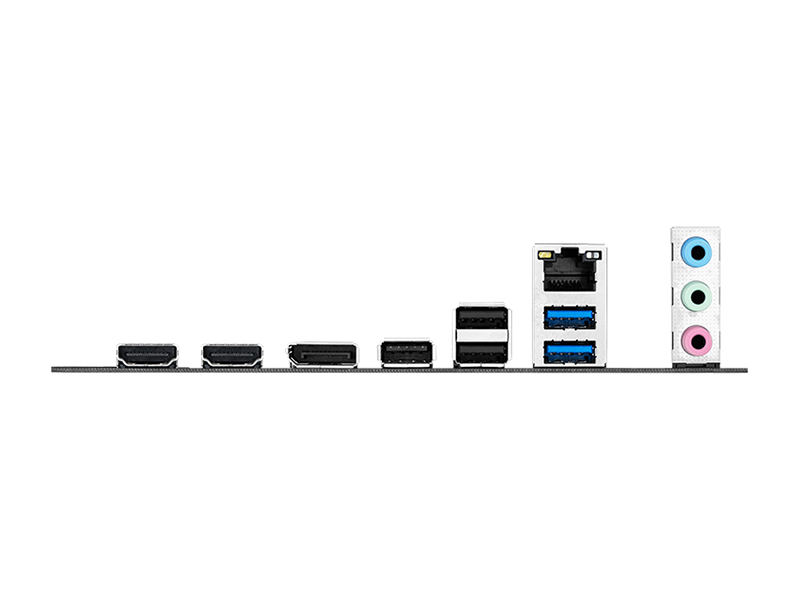

Back I/O

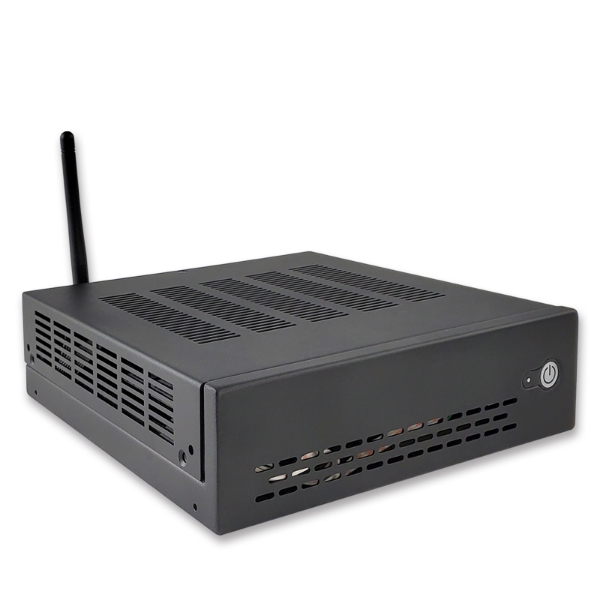

Chassis

400B Small Form Factor Aluminum Chassis
• Dimensions: 2.6"(H)x8.1"(W)x8.1"(D) inch Weight: 1.6 lb. Net 10 lb (with packaging)
• Drive Bay: 2.5"
• Color: Black as default color, option: Custom color, Custom logo available. MOQ required
• Supports VESA, wall mount or rackmount bracket
• Option: 175C Case 1.75" H, 300B Aluminum 2.1" H, 450S Swap/DVD+uLP, 500B 3.5" H w/LP slot, 500S 2U LP/RISER, 550PS Slot+1U P/S, 600B tall slot,Hd bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER
• Option: 236F3 Fanless Chassis

Power Supply

• Power: DC12V 80W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11 64-bit, Linux

Application

• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, Set Top Box, High-end Gaming, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
