Think Big. Go Small. Eco-Smart Computing

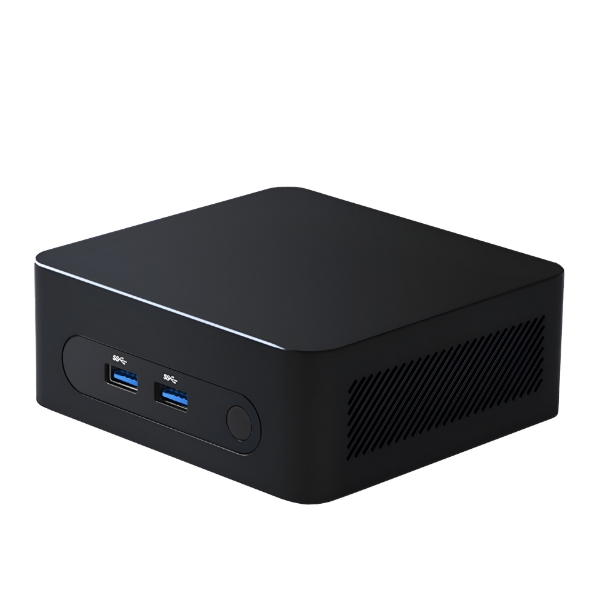

Nano-N7000V2

12th Gen Alder Lake-N UHD Graphics, 2 HDMI 2.0, LAN+ 4USB, M.2 SSD + M.2 SATA
Featured Highlights
  Intel® N-Series Processor
  Intel® Alder Lake-N Platform (SOC)
  Intel® UHD Graphics, HDMI 2.0
  1 DDR4-SO, up to 32GB Memory
  M.2 2280 NVMe SSD + M.2 2242 SATA
  2.5Gigabit LAN, AC/7265 dual-band WiFi
  4 USB 3.2
  HD Audio
  DC12V 4A Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11 Pro/10, Linux
  Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.




SKU: Nano-N7000V2
Product specifications
Processor

• Intel® N95 1.70/3.40GHz 4Core 4Threads 6M 15W
• Option:
• Intel® N97 3.40GHz 4Cores 6M 12W
• Intel® N50 3.40GHz 2Cores 6M 6W
• Intel® N100 3.40GHz 4Cores 4Threads 6M 6W
• Intel® N200 3.70GHz 4Cores 4Threads 6M 6W
• Intel® i3-N300 3.80GHz 8Cores 8Threads 6M 7W
• Intel® i3-N305 3.80GHz 8Cores 8Threads 6M 9W
• Intel® Atom® x7213E 3.20GHz 2Cores 6M 10W
• Intel® Atom® x7211E 3.20 GHz 2Cores 6M 6W
• Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W

Chipset

• Intel® Alder Lake-N Platform (SOC)

Graphics

• Intel® UHD Graphics
• 2 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz

Memory

• 1 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB

Network

• 1 x Intel® I225V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• Intel® AC/7265 dual-band WiFi with 2.4G/5G BT 4.2
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2280 (for PCIe NVMe SSD)
• 1 x M.2 2242 (for SATA-6Gb/s)

Storage

• 1 x M.2 2280 (for PCIe NVMe SSD)
• 1 x M.2 2242 (for SATA-6Gb/s)

Audio

• HD Audio
• 1 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x LAN ports
• 2 x HDMI® 2.0 port
• 2 x USB 3.2 ports
• 1 x DC-In Power Connecter

Other I/O

• 2 x USB 3.2 ports (Front)

System BIOS

• AMI® BIOS

Chassis

• Nano Enclosure
• Dimensions: 4.4"(W) x 4.2"(D) x 1.7"(H), weight: 1 lbs., Gross: 5 lb.
• Color: Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 4A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11Pro/10, Linux

Application

• Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
