 Think Big. Go Small. Eco-Smart Computing

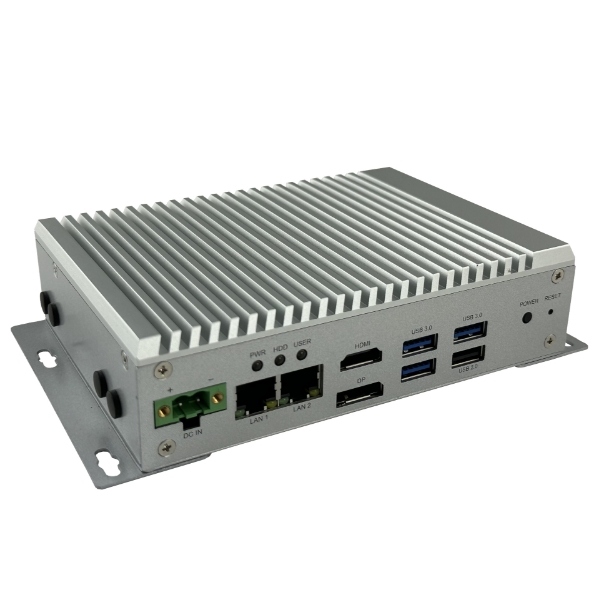

Nano-N6400L2C4

Elkhart Lake Embedded, 15-year Longevity, HDMI + DP 2 Display, 4 COM + 2 LAN + Wide Temperature Stability
Featured Highlights
  Intel® Celeron®/Pentium® Processor
  Intel® Elkhart Lake Platform (SOC)
  Intel® 10th Generation UHD Graphics, DP 1.2+HDMI 2.0
  DDR4 SO-DIMM Memory up to 32GB
  M.2-SSD
  2 2.5GbE LAN, M.2-4G/5G
  3 USB 3.0, USB 2.0, 4 COM
  HD Audio
  DC12V-30V 90W or higher wattage Power Adapter (UL/CE/FCC Certified)
    3.5 Inch Single Board Computers
  OS Support: Windows 10, 11, IoT, Linux
  Applications: Digital Signage, Edge AI, Set Top Box, Audio/Video PC, Network Security, Medical/Healthcare


SKU: Nano-N6400L2C4
Product specifications
Processor

• Intel® Celeron® N6211 1.20/3.00GHz 2Core 2Threads 1.5M 6.5W
• Intel® Celeron® J6413 1.80/3.00GHz 4Core 4Threads 1.5M 10W
• Intel® Pentium® N6415 1.20/3.00GHz 4Core 4Threads 1.5M 6.5W
• Intel® Pentium® J6426 2.00/3.00GHz 4Core 4Threads 1.5M 10W
• Intel® Celeron® J6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W

Chipset
• Intel® Elkhart Lake Platform (SOC)
Graphics

• Intel® 10th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x DP 1.2, supports 4K 60Hz resolution
• 1 x HDMI® 2.0, supports 4K 60Hz resolution

Memory

• 1 x DDR4 SO-DIMM
• 3200/2933/2666MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 32GB

Network

• 2 x Intel® I225V/LM 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• 1 x M.2 3052/3042 (for 4G-LTE/5G Wireless Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 3052/3042 (for 4G-LTE/5G Wireless Module)
• 1 x M.2 2280/2242 (for SATA-6Gb/s SSD)

Storage

• 1 x M.2 2280/2242 (for SATA-6Gb/s SSD)

Audio

• HD Audio
• 1 x 3.5mm Analog Stereo Audio Combo jack

Back Panel I/O

• 3 x USB 3.0 ports
• 1 x USB 2.0 ports
• 1 x DP 1.2 port
• 1 x HDMI® 2.0 port
• 2 x LAN ports
• 1 x DC-In Power Connector

Other I/O

• 4 x RS485/422/232 Serial COM ports (Front)
• 1 x 3.5mm Audio jack (Front)

Function

• Supports TPM 2.0

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Chassis

• Nano Fanless Enclosure
• Dimensions: 5.9"(W) x 4.2"(D) x 1.5"(H), Weight: 3 lb
• Optional Black chassis (J64-4) with extra 2 USB ports 6.8"(W) x 4.2"(D) x 2.2" (H)
• Color: Black or Silver as default color, custom colors available with special order

Power Supply

• Power: DC12V-30V 90W or higher wattage Power Adapter Phoenix 2 Pole plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, 11, IoT, Linux

Application

• Digital Signage, Edge AI, Set Top Box, Audio/Video PC, Network Security, Medical/Healthcare, High-Speed Railway

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
