 Think Big. Go Small. Eco-Smart Computing

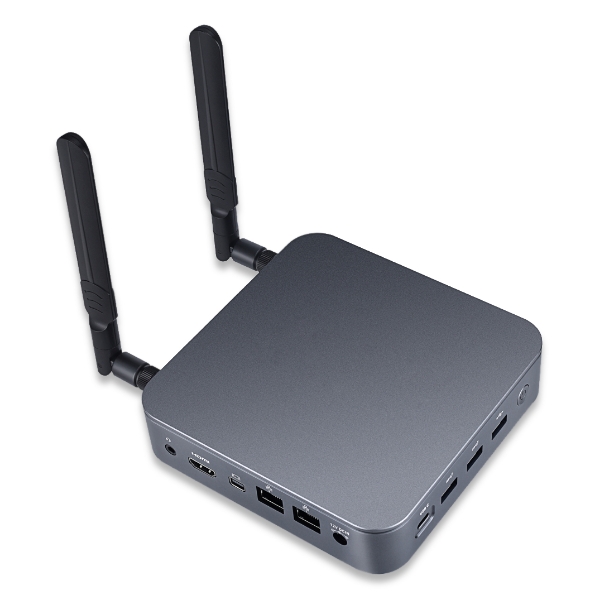

Nano-N6000L2

11th Gen. Jasper Lake, 11th Gen. GPU HDMI+MiniDP+Type-C, Dual LAN+Dual-Band WiFi-6/BT 5.2, 3 USB
Featured Highlights
  Intel® Pentium®/Celeron® Processor
  Intel® Jasper Lake Platform (SOC)
  Intel® 11th Generation UHD Graphics, Mini DP+HDMI 2.0+Type-C
  8GB DDR4, up to 16GB Memory
 256GB/512GB SSD, M.2 SSD/NVMe
  Dual Gigabit LAN+Dual-Band WiFi-6 (2.4GHz/5.0GHz), Bluetooth 5.2
  2 USB 3.2, USB 2.0, Type-C
  Realtek® ALC662 6-channel (5.1)
  DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10 Pro, IoT, Linux
  Applications: Digital Signage, Edge AI, Audio/Video PC, Set Top Box, Home/Office MiniPC, Entertainment PC, etc.




SKU: Nano-N6000L2
Product specifications
Processor

• Intel® Pentium® Silver N6005 2.00/3.30GHz 4Core 4Threads 4M 10W
• Intel® Celeron® N5105 2.00/2.90GHz 4Core 4Threads 4M 10W
• Intel® Celeron® N6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W

Chipset

• Intel® Jasper Lake Platform (SOC)

Graphics

• Intel® 11th Generation UHD Graphics
• Support 3 Graphics ports
• 1 x  Mini DP supporting a maximum resolution of 4K @60Hz Graphics port
• 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz
• 1 x USB-C supporting a maximum resolution of 4K @60Hz

Memory

• 2 x DDR4 SO-DIMM 8GB
• 2933/2666MHz unbuffered non-ECC
• Supports up to 16GB

Network

• 2 x 2.5 Gigabit (10/100/1000/2500 Mb/s) LAN
• 802.11ax Dual-Band WiFi-6 (2.4GHz/5.0GHz), Bluetooth 5.2
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2280 (for PCIe Gen3 NVMe)

Storage

• 256GB/512GB SSD (upgradeable to 2TB)
• 1 x M.2 2280 (for PCIe Gen3 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 1 x 3.5mm Analog Stereo Audio jack

Back Panel I/O

• 2 x LAN ports
• 1 x MiniDP port
• 1 x HDMI® 2.0 port
• 1 x 3.5mm Audio Jack
• 1 x DC-in Power Connector

Other I/O

• 2 x USB 3.2 ports (Side)
• 1 x USB 2.0 port (Side)
• 1 x USB-C port (Side)

System BIOS

• AMI® BIOS

Chassis

MX5.5 Enclosure
• Dimensions: 5.5"(W) x 5.5"(D) x 1.25"(H), weight: 1 lbs., Gross: 3.5 lb.
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug or Type-C (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10 Pro, Window 10 IoT, Linux

Application

• Digital Signage, Edge AI, Audio/Video PC, Set Top Box, Home/Office MiniPC, Entertainment PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
