 Think Big. Go Small. Eco-Smart Computing

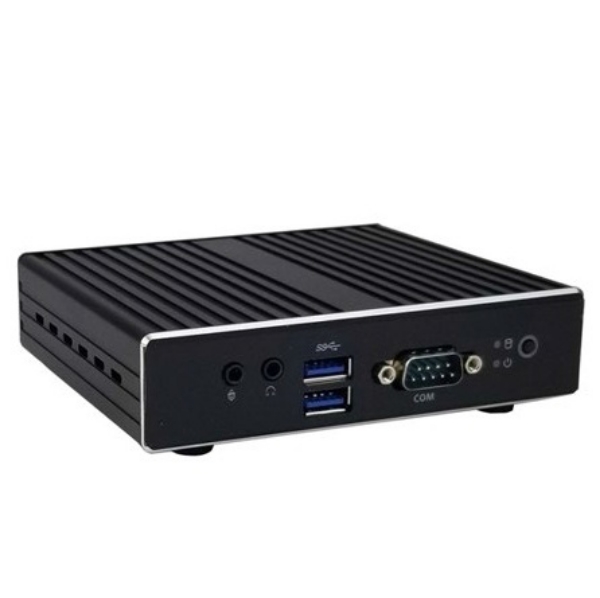

Nano-N6400D

Elkhart Lake Embedded, 15-year Longevity, HDMI + DP 2 Display, COM + MiniPCIe 4G-LTE SIM
Featured Highlights
Intel® Celeron®/Pentium® Processor
Intel® Elkhart Lake Platform (SOC)
Intel® 10th Generation UHD Graphics, DP+HDMI 2.0
4GB/8GB/16GB DDR4 Memory
mSATA-6Gb/s, 64/128GB eMMC
MiniPCIe for mSATA or 4G-LTE modem
Gigabit LAN, M.2-WiFi
2 USB 3.0, 2 USB 2.0
7.1 ALC897 Audio Sound
DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 10/11, IoT, Linux
Applications: Edge AI, Set Top Box, High-end Gaming, Thin Client, Medical/Healthcare, Systems for ACT Lighting, Bitcoin Mining Systems, GPU for AI Computing, etc.

SKU: Nano-N6400D
Product specifications
Processor

• Intel® Celeron® N6211 1.20/3.00GHz 2Core 2Threads 1.5M 6.5W
• Intel® Celeron® J6413 1.80/3.00GHz 4Core 4Threads 1.5M 10W
• Intel® Pentium® N6415 1.20/3.00GHz 4Core 4Threads 1.5M 6.5W
• Intel® Pentium® J6426 2.00/3.00GHz 4Core 4Threads 1.5M 10W

Chipset
• Intel® Elkhart Lake Platform (SOC)
Graphics

• Intel® 10th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x DP 1.2, 4K 60Hz Graphics port
• 1 x HDMI 2.0, supports 4K 60Hz resolution

Memory

• 4GB/8GB/16GB DDR4 (on board)

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x MiniPCIe full size slot (for mSATA or 4G-LTE modem)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot (for mSATA or 4G-LTE modem)
• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 1 x mSATA 6Gb/s
• 64GB/128GB eMMC Flash Internal Storage

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x DP
• 1 x HDMI port
• 1 x LAN port
• 1 x DC-In Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 1 x Serial COM port (Front)
• 2 x 3.5mm Audio jacks (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Chassis

NUC-N3 Fanless Enclosure
• Dimensions: 4.96"(W) x 4.33(D) x 1.33"(H) (Depth dimension is changeable), weight: 3 lbs
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux

Application
• Digital Signage, Edge AI, Audio/Video PC, Set Top Box, etc.
Environment
• Operating Temperature: -10 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
