 Think Big. Go Small. Eco-Smart Computing

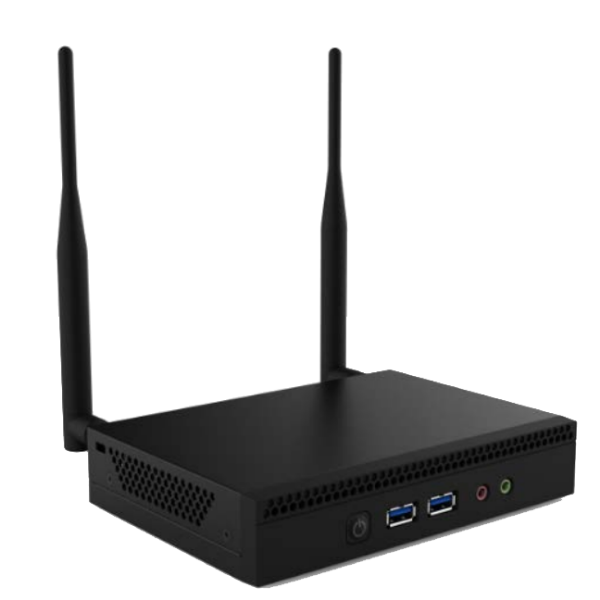

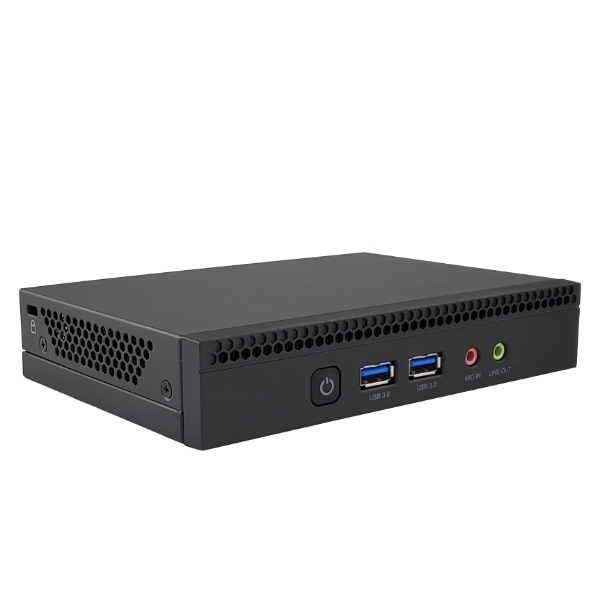

Nano-N6000Z

11th Gen. Jasper Lake, 11th Gen. UHD Graphics, HDMI + DP + VGA 3 Display, 6 USB
Featured Highlights
  Intel® Celeron® Processor
  Intel® Jasper Lake Platform (SOC)
  Intel® 11th Generation UHD Graphics, HDMI 2.0 + DP 1.4 + VGA
  DDR4-SO, up to 16GB Memory
  M.2 SATA/NVMe
  Gigabit LAN,   802.11ax Wi-Fi 6 (2.4GHz/5.0GHz), Bluetooth 4.2
  4 USB 3.0, 2 USB 2.0
  HD Audio
  DC12V Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10, Linux
  Applications: Digital Signage, Edge AI (Edge Computing), Audio/Video PC, Set Top Box, Home/Office MiniPC, etc.




SKU: Nano-N6000Z
Product specifications
Processor

• Intel® Celeron® N5105 2.00/2.90GHz 4Core 4Threads 4M 10W
• Intel® Celeron® N5095 2.00/2.90GHz 4Core 4Threads 4M 15W
• Intel® Celeron® N4505 2.00/2.90GHz 2Core 2Threads 4M 10W

Chipset

• Intel® Jasper Lake Platform (SOC)

Graphics

• Intel® 11th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x  DP 1.4 supporting a maximum resolution of 4K @60Hz Graphics port
• 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz
• 1 x VGA port

Memory

• 1 x DDR4 SO-DIMM
• 2666MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB

Network

• 1 x Realtek® RTL8111H (Optional Intel® 1210/I211) Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi/BT or Other Module)
• Supports 802.11 ax WiFi-6 (2.4GHz/5.0GHz), Bluetooth 4.2
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi/BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)

Audio

• HD Audio
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x LAN ports
• 2 x Wi-Fi/BT ANT
• 1 x HDMI® 2.0 port
• 1 x DP 1.4 port
• 2 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x DC-In Power Connecter

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x 3.5mm Audio jacks (Front)

System BIOS

• AMI® BIOS
• Watchdog support

Chassis

Nano-Z Chassis
• Dimensions: 6.6"(W) x 4.7"(D) x 1.3"(H), Weight: 1 lb, Gross: 3.5 lb
• Color: Black as default color, custom colors available with special order

Power Supply

• Power: DC12V 2.5/5.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, Linux

Application

• Digital Signage, Edge AI, Audio/Video PC, Set Top Box, Home/Office MiniPC, Entertainment PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
