 Think Big. Go Small. Eco-Smart Computing

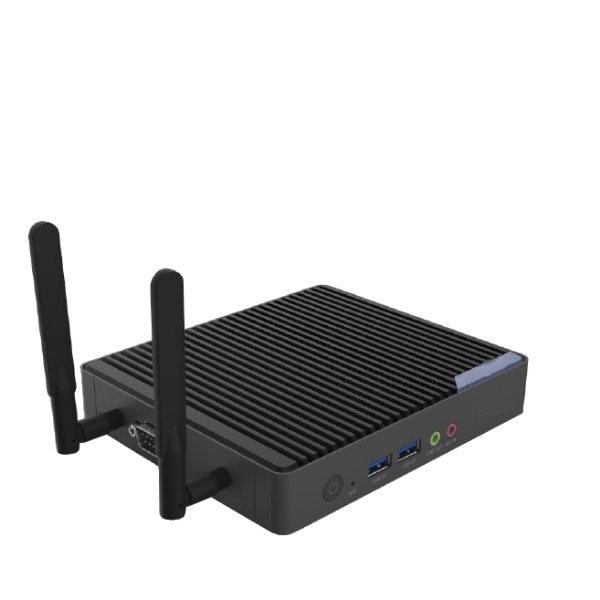

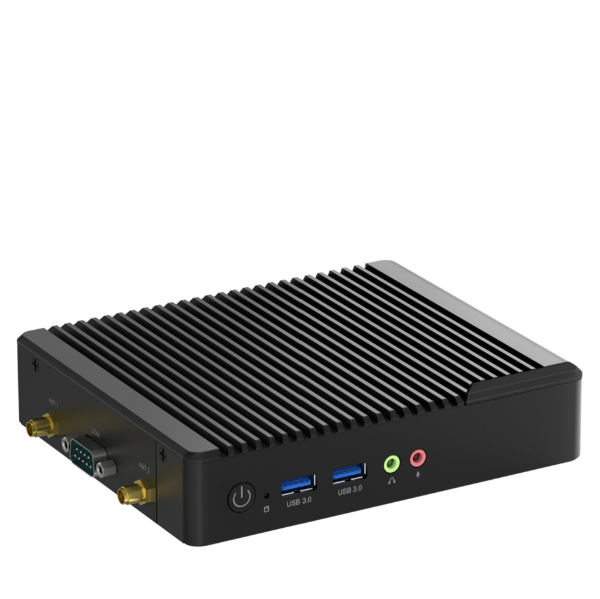

Nano-N6400C

Fanless Elkhart Lake Embedded IPC, 8 USB+COM, up to 64G RAM, supports 11ax Wi-Fi 6 and 5G/4G-LTE
Featured Highlights
  Intel® Celeron®/Pentium® Processor
  Intel® Elkhart Lake Platform (SOC)
  Intel® 10th Generation UHD Graphics, DP 1.2+HDMI 2.0
  2 LPDDR4X, for up to 8GB Memory
  M.2-SSD/NVMe, 32GB/64GB/128GB eMMC
  Gigabit LAN, M.2-WiFi/BT, M.2-5G/4G
  4 USB 3.0, 2/4 USB 2.0, 1/2 COM
  Realtek® ALC897 8-channel (7.1)
  DC12V 36W/60W Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10, 11, IoT, Linux
  Applications: Embedded-Longevity, Edge AI, Set Top Box, Thin Client, Medical/Healthcare, POS/Kiosk, Digital Signage, Entertainment PC, etc.


SKU: Nano-N6400C
Manufacturer part number: 10th Generation Elkhart Lake, Embedded-Longevity Fanless system
Product specifications
Processor

• Intel® Celeron® J6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W
• Intel® Celeron® J6413 1.80/3.00GHz 4Core 4Threads 1.5M 10W
• Intel® Celeron® N6210 1.20/2.60GHz 2Core 2Threads 1.5M 6.5W
• Intel® Celeron® N6211 1.20/3.00GHz 2Core 2Threads 1.5M 6.5W
• Intel® Pentium® J6426 2.00/3.00GHz 4Core 4Threads 1.5M 10W
• Intel® Pentium® N6415 1.20/3.00GHz 4Core 4Threads 1.5M 6.5W

Chipset

• Intel® Elkhart Lake Platform (SOC)

Graphics

• Intel® 10th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x DP 1.2, supports 4K 60Hz resolution
• 1 x HDMI 2.0, supports 4K 60Hz resolution

Memory

• 64GB LPDDR4
• 3200MHz unbuffered non-ECC
• 2 x SO-DIMM Sockets, support Dual Channel I/O

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)
• On-board 32G/64G/128G eMMC 5.0

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x USB 3.0 ports
• 5 x USB 2.0 ports
• 1 x DP 1.2
• 1 x HDMI 2.0 port
• 1 x LAN port
• 1 x DC-In Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 1 x Serial COM port (Side)
• 2 x 3.5mm Analog Stereo Audio jacks (Front)

Function

• Optional TPM 2.0 Chip

System BIOS

• AMI® BIOS
• Watchdog supported

Chassis

• Dimensions: 5.86"(W) x 5.03"(D) x 1.02"(H), Weight: 3 lbs
• Color: Black as default color, custom colors available with special order

Power Supply

• Power: DC12V 3A 36W  Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, 11, IoT, Linux

Application

• Embedded-Longevity, POS/Kiosk, Digital Signage, IoT, Edge AI, Entertainment PC, Set Top Box, Healthcare, etc.

Environment

• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE Certified

*
*
*
