 Think Big. Go Small. Eco-Smart Computing

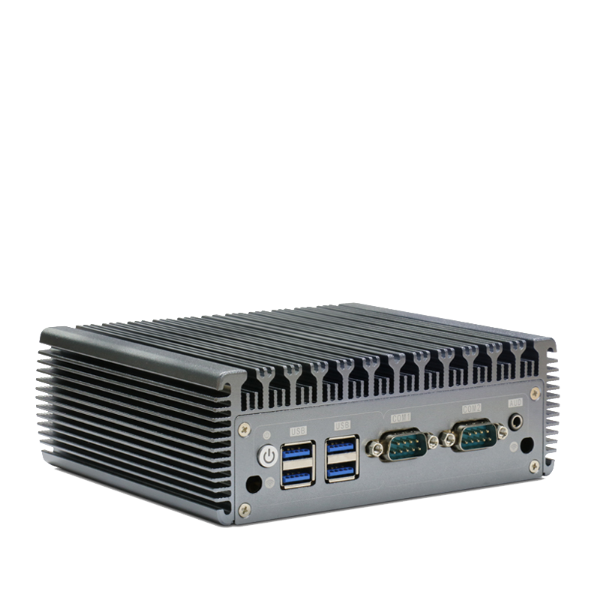

Nano-N6000L2C2

11th Gen Jasper Lake 11th Gen UHD Graphics, HDMI 2.0+VGA, 2 LAN 2COM 6USB, M.2 SSD + 2.5" SATA
Featured Highlights
  Intel® Celeron® Processor
  Intel® Jasper Lake Platform (SOC)
  Intel® 11th Gen UHD Graphics, HDMI 2.0
  1 DDR4-SO, up to 16GB Memory
  M.2 2280 for SATA and NVMe + 2.5" SATA HDD
  Mini PCI-E (for WiFi/BT) with SIM
  Dual Gigabit LAN
  4 USB 3.0, 2 USB 2.0
  HD Audio
  DC12V 5A Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10, Linux
  Applications: Digital Signage, Edge AI, Network Security, Set Top Box, Entertainment PC, etc.




SKU: Nano-N6000L2C2
Product specifications
Processor

• Intel® Celeron® N5105 2.00/2.90GHz 4Core 4Threads 4M 10W

Chipset

• Intel® Jasper Lake Platform (SOC)

Graphics

• Intel® 11th Gen UHD Graphics 600
• 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz
• 1 x VGA

Memory

• 1 x DDR4 SO-DIMM
• 2666MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB

Network

• 2 x Gigabit (10/100/1000 Mb/s) LAN
• 1 x MINI PCI-E with SIM (for WiFi/BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MINI PCI-E with SIM (for WiFi/BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
• 1 x 2.5" SATA HDD

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
• 1 x 2.5" SATA HDD

Audio

• HD Audio
• 1 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x LAN ports
• 1 x HDMI® 2.0 port
• 1 x VGA port
• 2 x USB 2.0 ports
• 1 x DC-In Power Connecter

Other I/O

• 4 x USB 3.0 ports (Front)
• 2 x COM port (Front)
• 1 x 3.5mm Audio jacks (Front)

System BIOS

• AMI® BIOS

Chassis

• Aluminum Enclosure
• Dimensions: Nano-F17: 6.1"(W) x 4.9"(D) x 2.2"(H), Nano-F5: 5.5" x 4.9" x 1.6"(H)
• weight: 3 lbs., Gross: 5 lb.
• Color: Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, Linux

Application

• Digital Signage, Edge AI, Network Security, Set Top Box, Entertainment PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
