 Think Big. Go Small. Eco-Smart Computing

Nano-N5095L2C

11th Gen. Jasper Lake, 11th Gen. Graphics, HDMI + Mini DP 2 Display, Dual LAN + COM + 6 USB
Featured Highlights
  Intel® Celeron/Pentium® Processor
  Intel® Jasper Lake Platform (SOC)
  Intel® 11th Generation UHD Graphics, DP 1.2+HDMI 1.4
  2 DDR4-SO, up to 16GB Memory
  M.2 2280 for SATA and NVMe
  802.11ax Wi-Fi 6 (2.4GHz/5.0GHz), Bluetooth 4.2
  Dual Gigabit LAN
  2 USB 3.0, 4 USB 2.0, Type-C (3.2)
  HD Audio
  DC12V 2A 24W or higher wattage Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10/11 Home/Pro, IOT
  Applications: Digital Signage, Edge AI, Audio/Video PC, Set Top Box, Home/Office MiniPC, Entertainment PC, etc.




SKU: Nano-N5095L2C
Product specifications
Processor

• Intel® Celeron® N5095 2.00/2.90GHz 4Core 4Threads 4M 10/15W
• Intel® Celeron® N4500 1.10/2.80GHz 2Core 2Threads 4M 6W
• Intel® Pentium® Silver N6005 2.00/3.30GHz 4Core 4Threads 4M 10W

Chipset

• Intel® Jasper Lake Platform (SOC)

Graphics

• Intel® 11th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x  Mini DP 1.2 supporting a maximum resolution of 4K @60Hz Graphics port
• 1 x HDMI® 1.4, supporting a maximum resolution of 4K @60Hz

Memory

• 2 x DDR4 SO-DIMM
• 2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB

Network

• 2 x Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi/BT or Other Module)
• Supports 802.11 ax WiFi-6 (2.4GHz/5.0GHz), Bluetooth 4.2
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi/BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
• 1 x TF card slot, supports up to 512GB

Audio

• HD Audio
• 2 x 3.5mm Analog Stereo Audio jacks

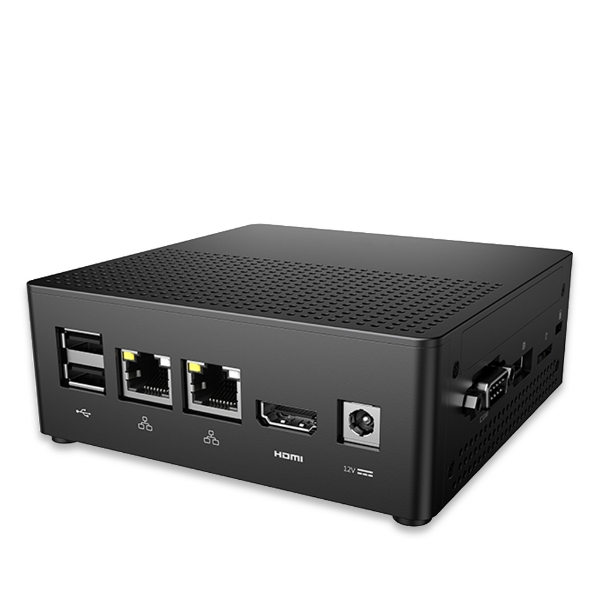

Back Panel I/O

• 2 x LAN ports
• 1 x HDMI® 1.4 port
• 2 x USB 2.0 ports
• 1 x DC-In Power Connecter

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 1 x Type-C USB 3.2 port (Front)
• 2 x 3.5mm Audio jacks (Front)
• 1 x RS232 COM port (Side)
• 1 x DP 1.2 port (Side)
• 1 x TF card slot (Side)

System BIOS

• AMI® BIOS

Chassis

• Aluminum Enclosure
• Dimensions: 4.56"(W) x 4.56"(D) x 1.77"(H), weight: 1 lbs., Gross: 3.5 lb.
• Color: Black as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 2A 24W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, IoT,

Application

• Digital Signage, Edge AI, Audio/Video PC, Set Top Box, Home/Office MiniPC, Entertainment PC, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
