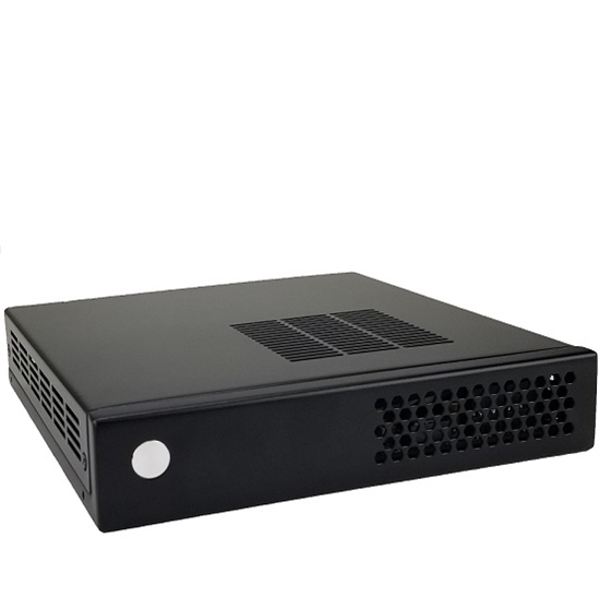

138D

Slim Fanless High Performance Core i series PC

Featured Highlights
•	Dimensions: 7"(W) x 7.2"(D) x 1.38"(H)
•	Intel® Core™ i7/i5/i3/Pentium/Celeron
•	mSATA/M.2 + 2.5" HD/SSD Bay
•	Multi-LAN, Multi-COM, Multi-Display, Multi-I/O
•	DC12-19V Fanless Power Adapter
•	Color: Black (Custom colors available with special order)
•	Applications: Industrial Appliance, Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP/Phone, Video Capture, etc.

SKU: 138D

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
Slim-7000e4	i7-7500u	Kaby Lake-u Skylake-u	1 DDR4SO	7th Gen. HD	1 Realtek/F\RTL8111F	4 R	6 R	2 HDMI/F	4 MiniPCIe	GPIO	5.1 ALC662
Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
Slim-3865L4	3865u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
i5-6200FL2	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
i5-6200L2B	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2 H	2 R+2 H	2 HDMI	2 MiniPCIe		5.1 ALC662
i5-6200SL	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	1 Realtek	2 R+2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
N3350AEL2	N3350	Apollo Lake	2 DDR3SO	Intel HD 500	2 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe+PCIe 1x	LPT+GPIO	7.1 ALC887
N4200AEL2	N4200	Apollo Lake	2 DDR3SO	Intel HD 505	2 Intel\i211AT	5 R	4 R	1 HDMI+2 DP+1 LVDS	MiniPCIe+PCIe 1x	GPIO+TPM	5.1 ALC662
N3050A1	N3050	Braswell-u	2 DDR3SO	8th Gen. HD	1 Realtek	3 R+3 H	1 R	1 HDMI+1 VGA+1 LVDS/H	2 MiniPCIe	GPIO+LPT	7.1 ALC892
N3150A1	N3150	Braswell-u	2 DDR3SO	8th Gen. HD	1 Realtek	3 R+3 H	1 R	1 HDMI+1 VGA+1 LVDS/H	2 MiniPCIe	GPIO+LPT	7.1 ALC892
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	1 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+GPIO+1xPS/2/H	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
10A-N2600Q	N2600	NM10	2 DDR3SO	Intel HD 3600	1 Realtek	3 R+2 H		1 HDMI+1 VGA+1 LVDS	PCIe 1x		5.1 ALC662
N2600-300R	N2600	NM10	2 DDR3SO	Intel HD 3600	1 Realtek\RTL8111E	3 R+1 F+2 H		1 HDMI+1 VGA	2 MiniPCIe+PCIe 1x	1xPS/2	5.1 ALC662
