Think Big. Go Small. Eco-Smart Computing

C3338L4

Deverton C3000, 4LAN+IPMI, 8 SATA+COM, PCIe x4 slot
Featured Highlights
Intel® Atom® C3338 Processor
Intel® Denverton Platform (SOC)
Aspeed® AST2400 Graphics, VGA
2 DDR4 DIMM for up to 128GB Memory
PCIe x4
4 Gigabit LAN + IPMI LAN
USB 3.0, 2 USB 2.0
8 SATA-6Gb/s, 2 M.2 SSD/NVMe
Power Supply: DC 12V 5A/ATX input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

SKU: C3338L4
Product specifications
Processor
• Intel® Atom® C3338 1.50/2.20GHz 2Core 2Threads 4M 9W
Chipset
• Intel® Denverton Platform (SOC)
Graphics

• Aspeed® AST2400 Graphics
• Support 1 Graphics port
• 1 x VGA port

Memory
• 2 x DDR4 DIMM
• 2666/2400/2133MHz unbuffered ECC (Single Channel I/O)
• Supports up to 128GB
Network

• 4 x Intel® Gigabit (10/100/1000 Mb/s) LAN
• 1 x IPMI LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x4 slot
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 8 x SATA 6Gb/s
• 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio
• Optional via USB Audio module

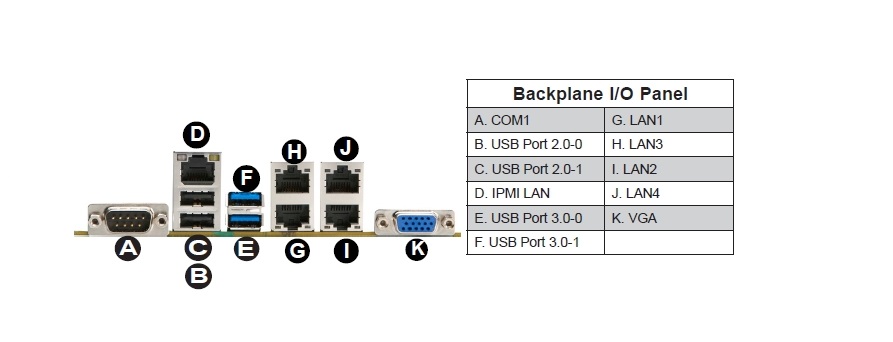

Back Panel I/O

• 2 x USB 2.0 ports
• 4 x LAN ports
• 1 x IPMI port
• 1 x VGA port
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 1 x USB 3.0 header
• 1 x Serial COM header

Function

• 1 x TPM header

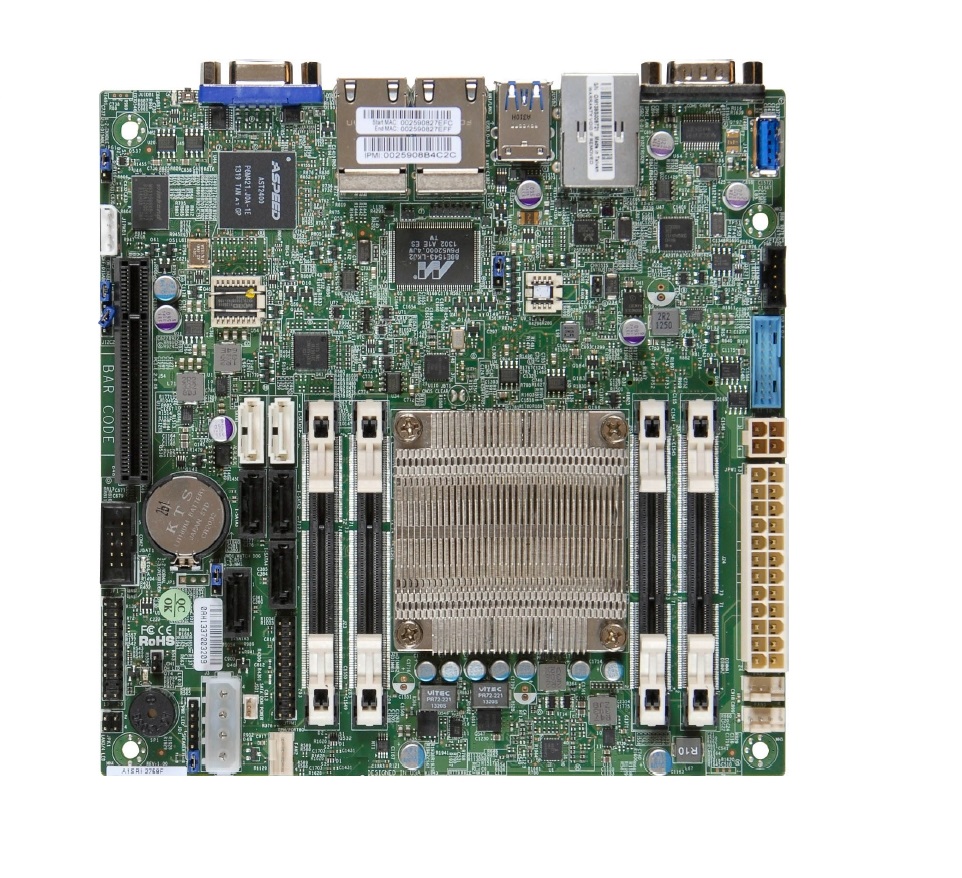

Systemboard
Small Form Factor
Back I/O

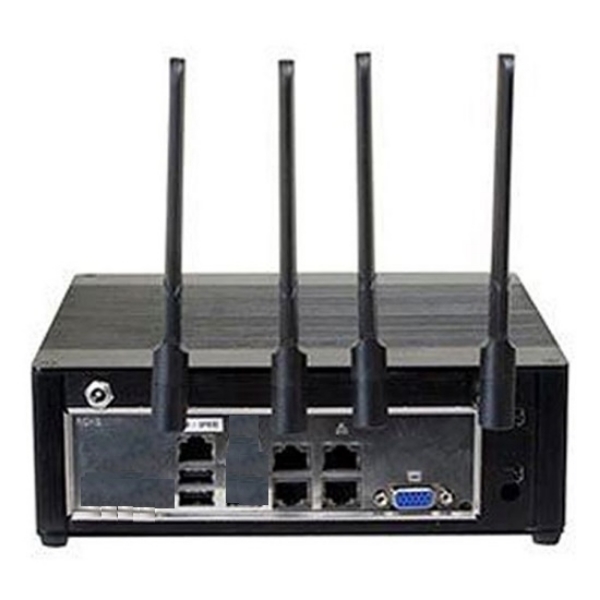

Chassis

175C Chassis (1.75" (1U height) x 8.1"W x 8"D)
300B Series Aluminum Mini Chassis
• Dimensions: 300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb (Net) and 6 lb (Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER slot 400S Swap Bay 2x2.5"
• Option: 500B 3.5" H w/LP slot 500A DVD Bay +LP slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Option: 1750C with slot

Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
