H310CA6

6/7/8/9th Gen. Socket-S, UHD Graphics HDMI+VGA, 8 USB+6 COM, 2 SATA+2 M.2
Featured Highlights
Intel® 6th/7th/8th/9th Gen. LGA1151 Core™ Series Processor
Intel® H310C Express Chipset
Intel® UHD Graphics, HDMI+VGA+LVDS/H
DDR4 SO-DIMM for up to 32GB Memory
2 SATA-6Gb/s, M.2 SSD/NVMe
Gigabit LAN, M.2-WiFi
4 USB 3.0, 4 USB 2.0
5.1 ALC662 Audio Sound
DC12V or DC19V 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 11/10/8, IoT
Applications: Set Top Box, Surveillance, etc.

SKU: Slim-H310C6
Product specifications
Processor

• Support 6/7/8/9th Gen Intel® Core™ i9, i7, i5, i3, Pentium®, Celeron® Processor LGA1151 Socket-S (Support up to 65W)

Chipset
• Intel® H310C Express Chipset
Graphics

• Intel® UHD 630 4K Graphics (based on CPU)
• Support 2 Graphics ports, 1 header
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA port
• 1 x LVDS header

Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 32GB
Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)

Storage

• 2 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In Power Connector

Internal I/O

• 4 x USB 2.0 headers
• 6 x Serial COM headers
• 1 x LVDS header

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported

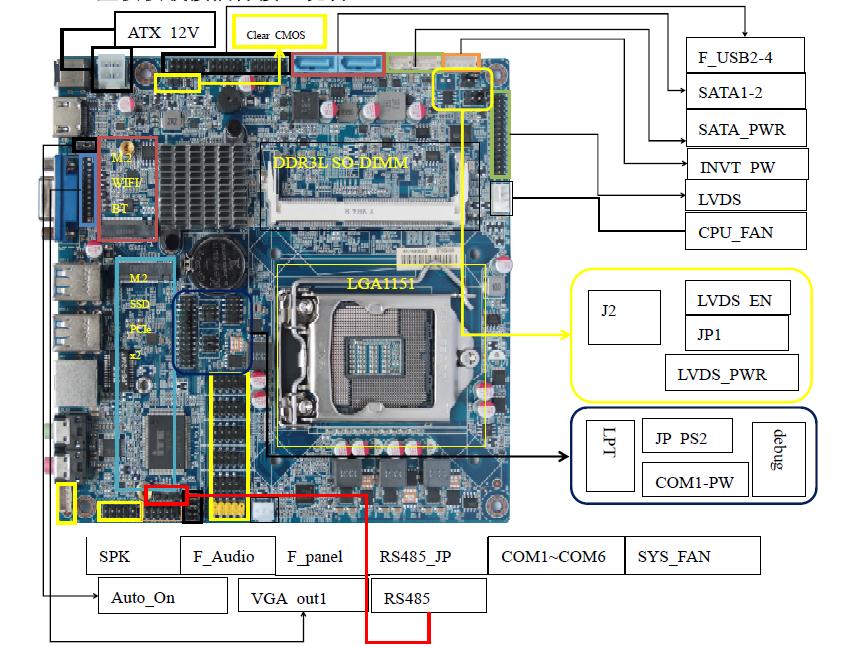

Systemboard
Small Form Factor

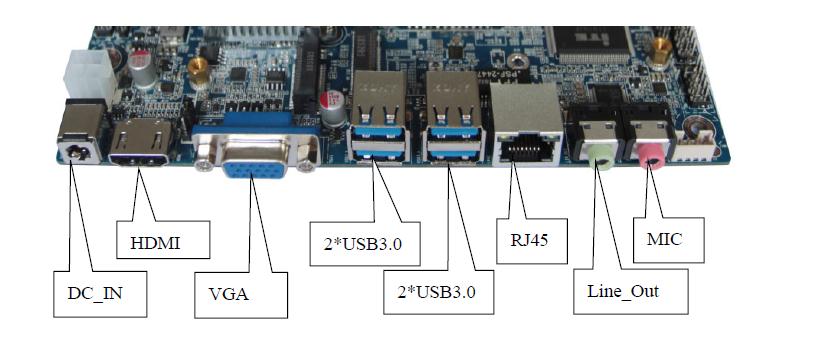

Back I/O

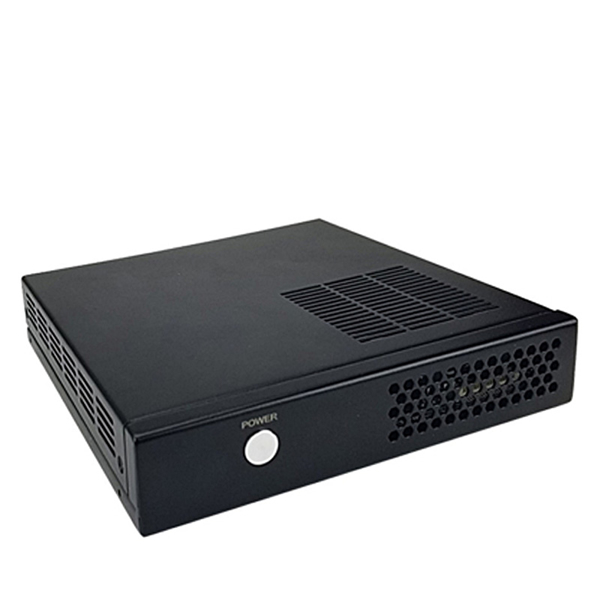

Chassis

140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount 23.8" LCD Display, 1920x1080 Resolution
• Dimensions: 1.4"(H) x 7"(W) x 7.2"(D), Weight: 3 lb (Net) 8 lb (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 140D without front USB ports is 7.2" depth 140D2 with 2 front USB port is 7.5" depth
• Option: 300A w/Slim DVD Bay, 300B Aluminum 2.1" H
• Option: AIO-J24 All-in-one PC
• Option: i1000 Aluminum Form Factor
• Option: 175C Case 1.75" H, 175F Fanless 1.75" H, 1750C with slot, 1750F Fanless with slot
• Option: 400B Aluminum 2.6"H, 400A w/Slim DVD Bay, 400R with RISER slot, 400S Swap Bay 2x2.5", 450S Swap/DVD+uLP
• Option: 500B 3.5" H w/LP slot, 500F Dust Filter, 500C LCD Control, 550PS slot+1U P/S
• Option: 600B tall Slot,Hd bay
• Option: 600T Twin PC
• Option: 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-Slot
• Option: 5000PS uATX 2 RISER
• Option: 236F3 Fanless Chassis

Power Supply

• Power: DC12V or DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10/8, IoT

Application
• Set Top Box, Surveillance, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
