Think Big. Go Small. Eco-Smart Computing

B150V3

6th/7th Gen, 2DP+HDMI Triple Display, 6COM+PCIe x16, 2LAN+4G-SIM
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium® Processor LGA1151
  6th Generation Skylake Platform
  Low-voltage energy efficiency Eco-smart computing
Intel® B150 Chipset, Small Business Advantage,
Intel® HD 530 Graphics, 4K Resolution, 2 DP+HDMI
2 DDR4 DIMM for up to 32GB Memory
3 SATA-6Gb/s, mSATA
PCIe 3.0 x16
2 Gigabit LAN + MiniPCIe-4G
4 USB 3.0, 5 USB 2.0
5.1 ALC662 Audio Sound
DC12V 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
  Optional 90V-240V 220W or higher wattage AC Power Supply
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

SKU: B150V3
Product specifications
Processor

• Intel® 6th Gen. Skylake/7th Gen. Kaby Lake processor
• LGA1151 socket series with 35W to 65W TDP
• Intel® Core™ i7-6700T/7700T (35W), i7-6700/7700 (65W)
• Intel® Core™ i5-6400T/7400T (35W), i5-6500T/7500T (35W), i5-6600/7600 (65W)
• Intel® Core™ i3-6100T/7100T (35W), i3-6100/7100 (47W)
• Intel® Dual Core Pentium® G4400T/G4600T (35W), G4500T/G4560T (35W), G4500/G4600 (47W/51W)
• Intel® Celeron® G3900T/3930T (35W), G3900/G3930 (51W)

Chipset

• Intel® B150 Express Chipset
• Supports Intel® Small Business Advantage
• 18 High Performance Lanes (8 x PCIe 3.0)

Graphics

• Intel® HD 530 Graphics, 4K Resolution
• Option: Intel® HD 630 Graphics, 4K Resolutions
• Support 3 Graphics ports
• 2 x DP 4K 60Hz Graphics port
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2

Memory

• 2 x DDR4 DIMM
• 2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 2 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot for WiFi+BT/4G-LTE Pair with SIM
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x16 slot
• 1 x MiniPCIe full size slot for WiFi+BT/4G-LTE Pair with SIM

Storage
• 3 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x Serial COM port
• 2 x DP
• 1 x HDMI® port
• 2 x LAN ports
• 2 x 3.5mm Audio jacks

Internal I/O

• 4 x USB 2.0 headers
• 5 x Serial COM headers

System BIOS
• AMI® UEFI / Legacy BIOS
• Watchdog supported

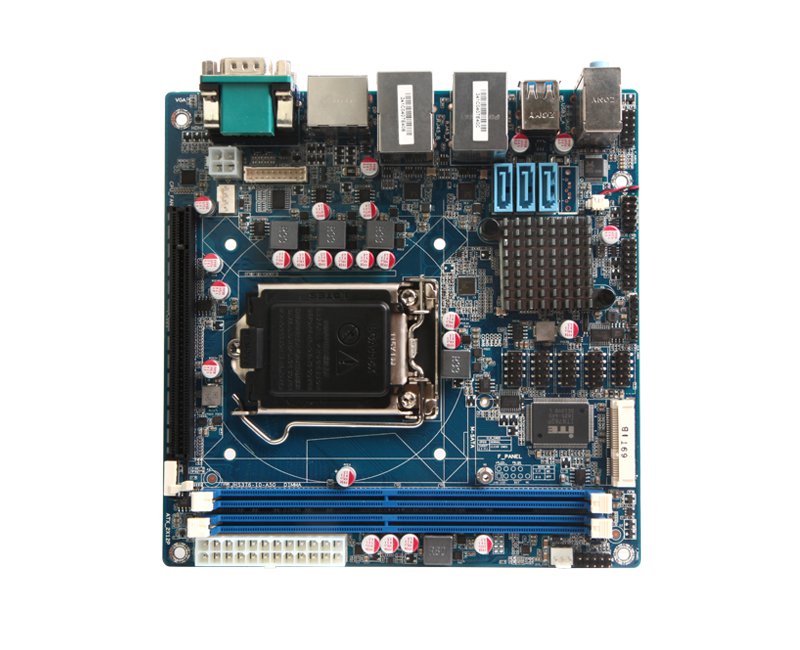

Systemboard
Small Form Factor

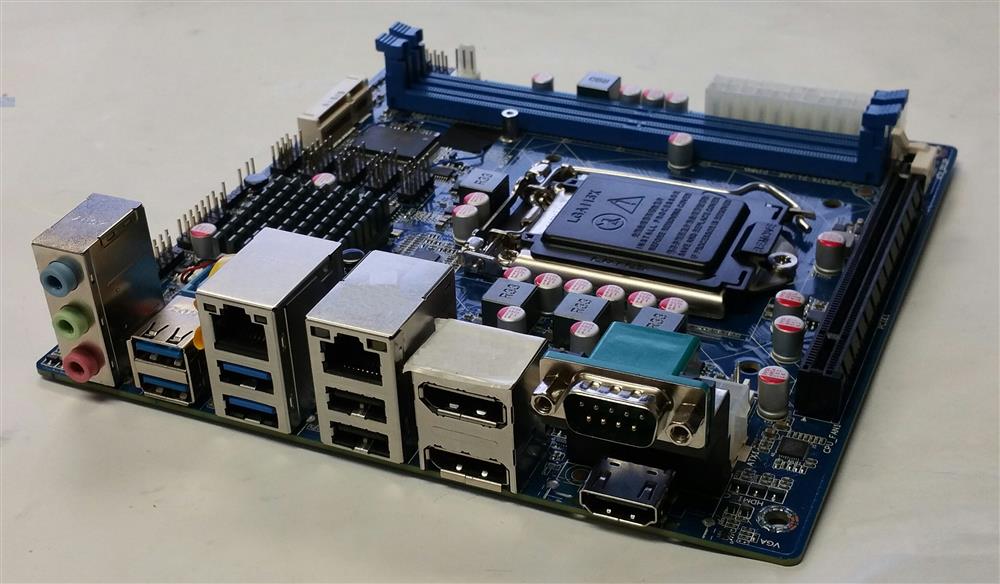

Back I/O
Chassis

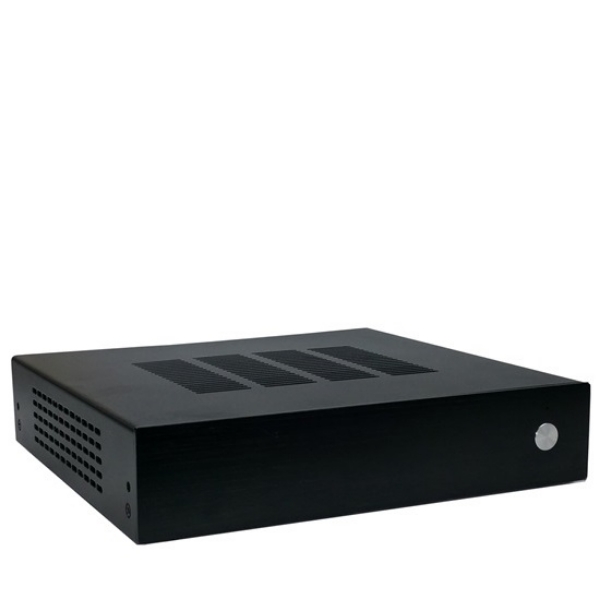

175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 8.1"(W) x 8"(D) x 1.75"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 175F Fanless 1.75" H
• Option: 300B Aluminum 2.1"(H), 400B Aluminum 2.6"(H), 400S Swap/DVD+uLP, 500B 3.5"(H) w/LP slot, 500S 2U LP/RISER, 550PS Slot+1U P/S, 600B tall slot,Hd bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x Slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER
• Option: 236F3 Fanless

Power Supply

• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, etc.
Environment

• Operating Temperature: 0 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
