 Think Big. Go Small. Eco-Smart Computing

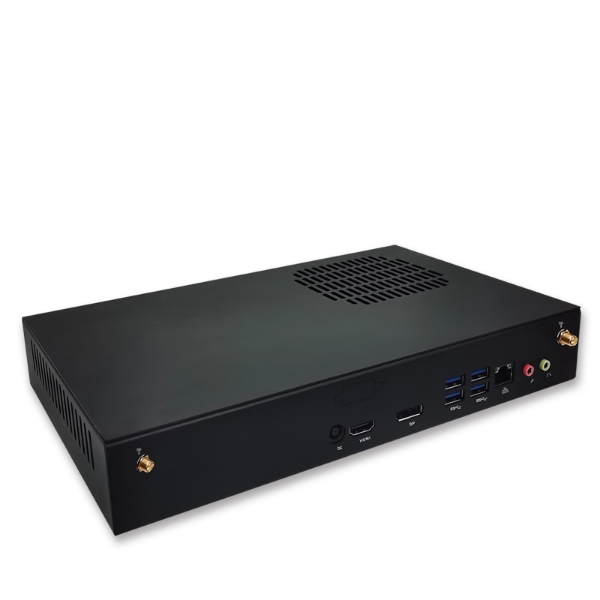

H510MXM

Intel® 11th Gen Socket-S Rocket Lake, MXM Graphics Module, 2 LAN + 8 USB
Featured Highlights
  Supports Intel® 11th/10th Gen. Processor
  Intel® H510 Chipset
  Intel® UHD 750 Graphics w/ MXM GPU, HDMI 2.0+DP 1.2
  2 DDR4 SO-DIMM for up to 16GB Memory
  M.2 SSD/NVMe
  2 Gigabit LAN + M.2-WiFi
  4 USB 3.2 + 4 USB 2.0,
  5.1 ALC662 Audio Sound
  DC19V 60W Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10/11, Linux
  Applications: GPU Computing, Digital Signage, Kiosk/POS, AI Edge, Set Top Box, Intelligent Retail

SKU: H510MXM
Product specifications
Processor

• 11th Generation Intel® Socket-S Series LGA-1200 Rocket Lake 35/65W
• Intel® Core™ i9-11900, i9-11900T 8C/16T 16M Cache
• Intel® Core™ i7-11700, i7-11700T 8C/16T 16M Cache
• Intel® Core™ i5-11600, i5-11500, i5-11400, i5-11400T 6C/12T 12M Cache
• 10th Generation Intel® Socket-S Series LGA-1200 Comet Lake 35/65W
• Intel® Core™ i9-10900, i9-10900T 10C/20T 20M Cache
• Intel® Core™ i7-10700, i7-10700T 8C/16T 16M Cache
• Intel® Core™ i5-10600, i5-10500, i5-10400T 6C/12T 12M Cache
• Intel® Core™ i3-10100, i3-10100T 4C/8T 6M Cache
• Intel® Pentium® Gold G6605, G6405, G6405T 2C/4T 4M, Celeron® G5905, G5905T 2C/2T 4M

Chipset

• Intel® H510 Chipset

Graphics

• Intel® UHD 750/630 Graphics (based on CPU)
• MXM Graphics Card slot (Nvidia GeForce RTX2000M series and AMD Mobile GPU Series)
• Supports Dual Displays
• 1 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 60Hz
• 1 x DP 1.2 port, supporting a maximum resolution of 4096x2160 60Hz

Memory

• 2 x DDR4 SO-DIMM
• 2933/2666/2400Hz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6GB/s or PCIe x4 SSD)
• MXM Graphic Card slot (Nvidia GeForce RTX2000M series and AMD Mobile GPU Series)

Storage

• 1 x M.2 2280 (for SATA-6GB/s or PCIe x4 SSD)

Network

• 1 x Intel® I219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x Realtek RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 1 x HDMI 2.0 port
• 1 x DP 1.2 port
• 2 x USB 3.2 ports
• 2 x LAN ports
• 1 x COM port (Optional)
• 1 x DC-In 2.5mm Power Connector

Front Panel

• 4 x USB 2.0 ports

System BIOS

• AMI® EFI 64Mbit
• Watchdog Supported

Chassis

• Chassis: 11"(W) x 7"(D) x 1.7"(H)

Power Supply

• Power: DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, Linux

Application

• GPU Computing, Digital Signage, Kiosk/POS, AI Edge, Set Top Box, Intelligent Retail, etc.

Environment

• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +60 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
