Think Big. Go Small. Eco-Smart Computing

Q370E2

2 PCIe Slots, 2DP+DVI 3 Display, 3LAN+4COM, 3xM.2+SIM IPC
Featured Highlights
Intel® Core™ i9/i7/i5/i3 processor 1151pin
  8/9th Gen. Coffee Lake vPro
Intel® Q370 Chipset, Intel® vPro Technology,
Intel® UHD 630 Graphics, 2 DP+DVI+ LVDS
2 x DDR4 SO-DIMM for up to 64GB Memory
4 x SATA-6Gb/s, M.2 SSD/NVMe
1 PCIe 16x+1 PCIe 4x Slots
3 x Gigabit LAN + M.2-WiFi+M.2-4G
6 USB 3.0, 6 USB 2.0, RS485 COM
5.1 ALC662 Audio Sound
DC12V 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
  Optional 90V-240V 220W or higher wattage AC Power Supply
OS Support: Windows 8, Windows 10, IoT, Linux
Applications: Network Security, POS/Kiosk, Edge AI, Set Top Box, etc.

SKU: Q370E2
Product specifications
Processor
• Intel® 9th/8th Generation Coffee Lake processor
• LGA1151 socket series with 35W, 65W to 95W TDP
• Intel® Core™ i9-9900K, 9900, 9900T 8C/16T series 16M Cache
• Intel® Core™ i7-9700, 9700T, 8700, 8700T series 6C/12T 12M Cache
• Intel® Core™ i5-9600, 9500, 9400T, 8400, 8400T series 6C/6T 9M Cache
• Intel® Core™ i3-9300, 9100, 9100T, 8100, 8100T series 4C/4T 6M Cache
• Intel® Pentium® Gold G5600 series 2C/4T 4M and Celeron® G4900 series 2C/2T 2M
Chipset
• Intel® Q370 Express vPro Technology
Graphics

• Intel® UHD 630 Graphics
• Support 3 Graphics ports, 1 Header
• 2 x DP 4K 60Hz Graphics Port(Convertible to HDMI® )
• 1 DVI Port(Convertible to HDMI® or VGA))
• 1 x LVDS Header(Convertible to VGA)

Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 2 x Intel® i219 Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® i210AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 for WiFi+BT or Other Module
• 1 x M.2-2242 for 4G-LTE Moudle Pair with SIM Card
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 16x slot
• 1 x PCI Express 3.0 4x slot
• 1 x M.2 2230 for WiFi+BT or Other Module
• 1 x M.2-2242 for 4G-LTE Moudle Pair with SIM Card
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 4 x SATA 6Gb/s
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jack
Back Panel I/O

• 4 x USB 3.1 Ports
• 2 x USB 2.0 Ports
• 1 x Serial COM port
• 2 x DP ports
• 1 x DVI port
• 1x COM ports
• 3 x LAN ports
• 2 x 3.5mm jack

Internal I/O

• 2 x USB 3.1 Headers
• 4 x USB 2.0 Headers
• 3 x Serial COM Headers
• 1 x LVDS header
• 1 x LPT header

Function
• 1 x 4in/4out GPIO Header
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported

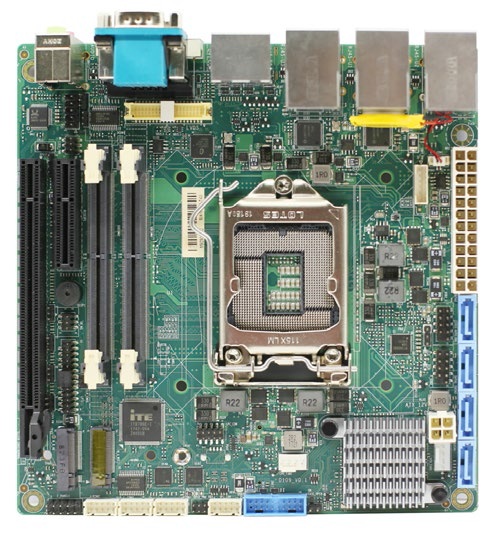

Systemboard
Small Form Factor

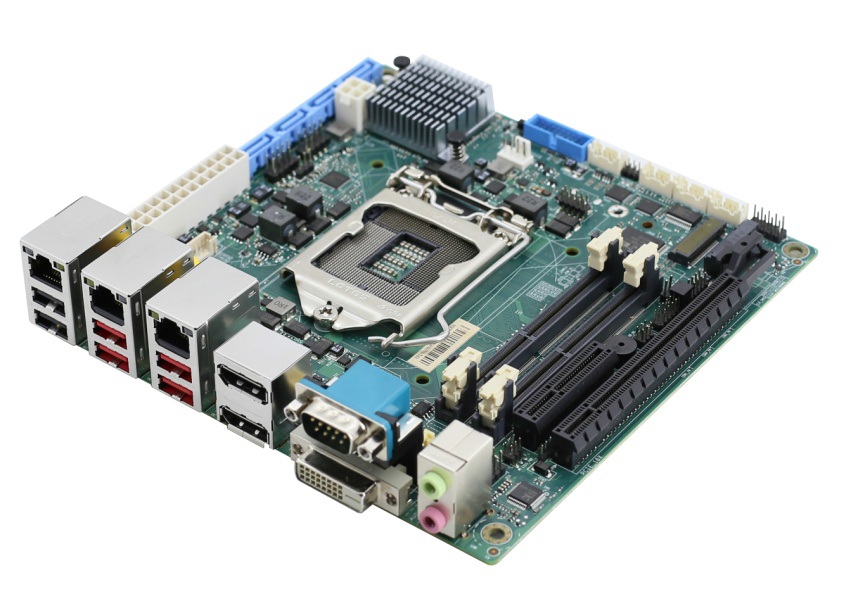

Back I/O
Chassis
175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
175C Case 1.75" H 175F Fanless 1.75" H
• Option: 500B 3.5" H w/LP Slot ,1750C with slot
Power Supply
• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) •
• Optional 90V-240V 220W or higher wattage AC Power Supply •
• Power Cord: Standard US Power Cord included, European Power Cord available as option •
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 8, Windows 10, IoT, Linux
Application
• Network Security, POS/Kiosk, Edge AI, Set Top Box, etc.
Environment
• Operating Temperature: -20-60C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
