Think Big. Go Small. Eco-Smart Computing

Nano-N4100D

Fanless Gemini Lake, UHD600 4K Graphics HDMI 2.0+DP, 6 USB+COM, mSATA+2 M.2+SIM
Featured Highlights
Intel® Celeron®/Pentium® Processor
Intel® Gemini Lake Platform (SOC)
Intel® UHD 600 Graphics, HDMI 2.0+DP 1.2
mSATA-6Gb/s, 32GB/64GB/128GB eMMC
Gigabit LAN, M.2 WiFi+M.2 4G-LTE
2 USB 3.0, 4 USB 2.0
5.1 ALC662 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter (UL/CE/FCC Certified)
  Optional DC12V 2.5mm AC Adapter
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, IPTV, Traffic Controller, etc.


SKU: N4000D/N4100D
Manufacturer part number: - Fanless Deep Learning OpenVino Mini PC
Product specifications
Processor

• Intel® Celeron® N4000 1.10/2.60GHz 2Core 2Threads 4M 6W
• Intel® Celeron® N4100 1.10/2.40GHz 4Core 4Threads 4M 6W
• Intel® Celeron® J4005 2.00/2.70GHz 2Core 2Threads 4M 10W
• Intel® Pentium® Silver J5040 2.0/3.2GHz 4Core 4Threads 4M 10W
• Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W
• Intel® Pentium® J5005 1.50/2.80GHz 4Core 4Threads 4M 10W
• Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W
• Intel® Celeron® J4025 2.00/2.90GHz 2Core 2Threads 4M 10W
• Intel® Pentium® Silver N5030 1.10/3.10GHz 4Core 4Threads 4M 6W
• Intel® Celeron® N4120 1.10/2.60GHz 4Core 4Threads 4M 6W
• Intel® Celeron® N4020 1.10/2.80GHz 2Core 2Threads 4M 6W

Chipset
• Intel® Gemini Lake Platform (SOC)
Graphics

• Intel® UHD 600 Graphics
• Support 2 Graphics ports
• 1 x HDMI 2.0, 4K 60Hz Graphics port
• 1 x DP 1.2, 4K 60Hz Graphics port

Memory

• 4GB DDR4 (built-in, non-changeable)
• 1 x DDR4 SO-DIMM
• 2400MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 8GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 socket (Taken by WiFi+BT Module)
• 1 x M.2 2242/2230 (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x MiniPCIe full size slot (for mSATA-6Gb/s)
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242/2230 (for WiFi+BT/4G-LTE Module with SIM pair)

Storage

• 1 x MiniPCIe full size slot (for mSATA-6Gb/s)
• 32GB/64GB/128GB eMMC Flash Internal Storage

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x HDMI 2.0 port
• 1 x DP 1.2 port
• 1 x LAN port
• 1 x 3.5mm Audio Out jack
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• Optional 1 x Serial COM header for front or back COM port

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x USB 2.0 ports (Front)
• 1 x 3.5mm Audio In jack (Front)
• 1 x SIM slot (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported

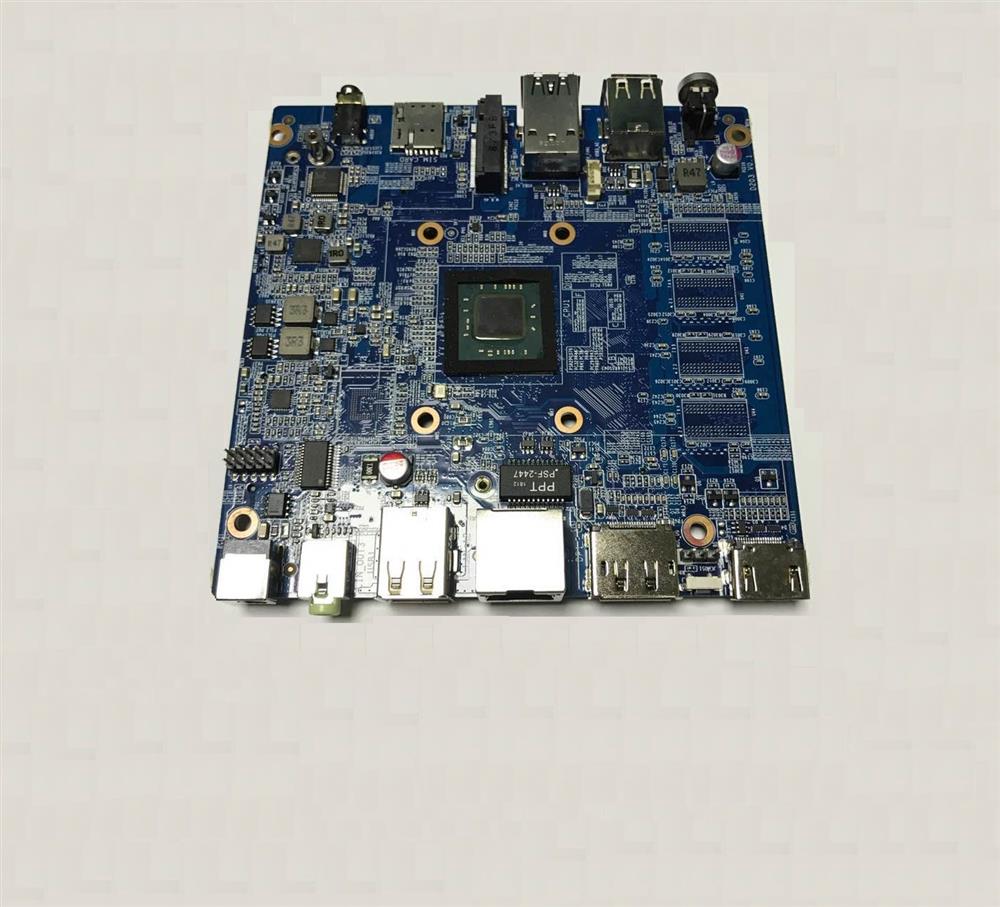

Systemboard
Small Form Factor
Back I/O

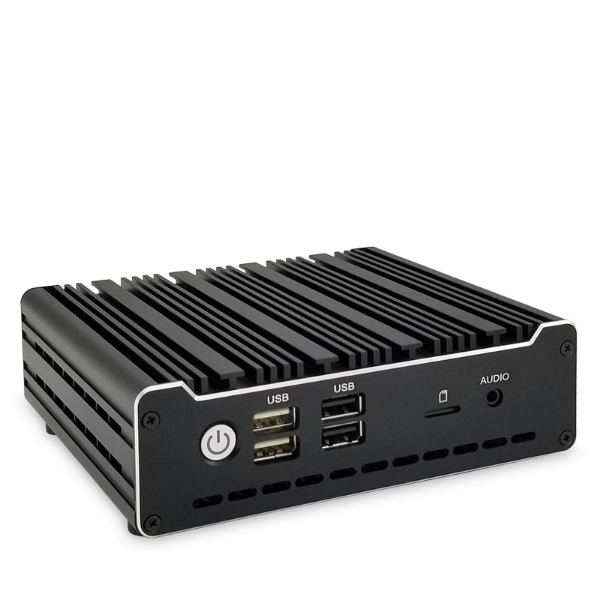

Chassis

Nano-F3 Fanless Enclosure
• Dimensions: 5.50"(W) x 4.96"(D) x 1.54"(H) (depth dimension changeable), weight: 6lbs
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: Nano-F8 5.43"(W) x 4.96"(D) x 1.65"(H)

Power Supply

• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, IPTV, Traffic Controller, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
