 Think Big. Go Small. Eco-Smart Computing

Nano-J6412U8V3

Elkhart Lake J-Series Embedded, Intel® UHD 10th Gen Graphics DP+ 2 HDMI, LAN, M.2+mSATA+SATA
Featured Highlights
Intel® Celeron® Processor
Intel® Elkhart Lake Platform (SOC)
Intel® UHD 10th Gen. Graphics, 2 HDMI + DP
1 DDR4 SO-DIMM for up to 32GB Memory
2 x MiniPCIe, 1 x M.2, 1 x SATA-6Gb/s (support 2.5 HDD)
1 Realtek® Gigabit LAN
2 USB 3.0, 2 USB 2.0
HD Audio Sound
Power Supply: DC12V Input
OS Support: Windows 11, Window 10, Linux
Applications: Embedded-Longevity, Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System,Audio Player, IPTV, etc.


SKU: J6412LU8V3
Product specifications
Processor

• Intel® Celeron® J6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W

Chipset

• Intel® Elkhart Lake Platform (SOC)

Graphics

• Intel® UHD 10th Gen. Graphics
• 2 x HDMI® 1.4, supporting a maximum resolution of 4096x2160 at 24Hz
• 1 x DP 1.2 4k at 60Hz

Memory

• 1 x DDR4 SO-DIMM
• 2400MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 32GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe slot (for WiFi+BT)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x MiniPCIe slot (for WiFi+BT)
• 1 x MiniPCIe slot (for mSATA SSD)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
• 1 x M.2 2230 WiFi+BT Socket
• 1 x SATA 3.0 6Gb/s (2.5 HDD or SSD)

Audio

• 2 x 3.5mm Analog Stereo Audio jacks

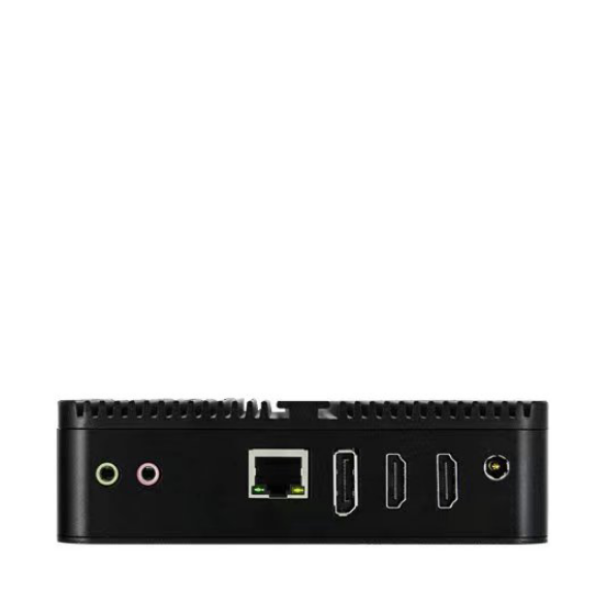

Back Panel I/O

• 2 x HDMI® 1.4 port
• 1 x DP 1.2
• 2 x LAN ports
• 2 x 3.5mm Analog Stereo Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 1 x SATA data port

Other I/O

• 2 x USB 3.0 (Front)
• 6 x USB 2.0 (Front)

System BIOS

• AMI® UEFI BIOS
• 64Mbit flash

Chassis

• Nano Small Form Factor with aluminum alloy housing
• Dimensions: 5.4"(W) x 4.7"(D) x 1.7"(H), Weight: 3 lb(Net) 10 lb(gross with packaging)
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, Windows 11, Linux

Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: -10 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
