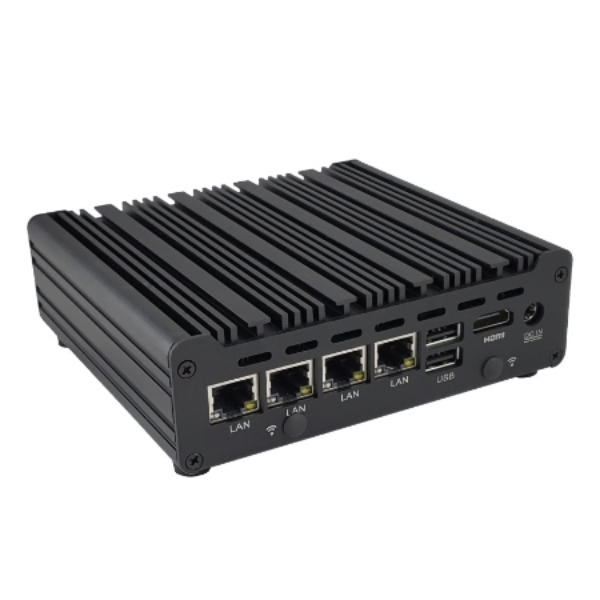

Nano-J6412L4

10th Gen Elkhart Lake, 4 x 2.5Gbit LAN M.2 for WiFi, MiniPCIe for 4G-LTE+sim socket, M.2 SSD 2 RS232/485

Featured Highlights
	Intel® Elkhart Lake Processor
	Intel® Celeron/Pentium (SoC)
	Intel® UHD Graphics, HDMI 2.0
	1 x DDR4 / DDR5-SO Memory
	M.2 2280 NVMe/SATA SSD
	4 x 2.5Gigabit LAN, MiniPCIe 4G + SIM
	2 x USB 3.0 + 4 x USB 2.0 + 2 x RS232/485 COM
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux, Windows 10/11 Pro/IoT
	Applications: High Speed Router, Firewall, VPN, Network Security, etc

SKU: Nano-J6412L4

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W • Intel® Celeron® N6211 1.20/3.00GHz 2Core 2Threads 1.5M 6.5W • Intel® Celeron® J6413 1.80/3.00GHz 4Core 4Threads 1.5M 10W • Intel® Pentium® N6415 1.20/3.00GHz 4Core 4Threads 1.5M 6.5W • Intel® Pentium® J6426 2.00/3.00GHz 4Core 4Threads 1.5M 10W Chipset • Intel® Elkhart Lake platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.0, up to 4K @60Hz Memory • 1 x DDR4 SO-DIMM (Optional DDR5) • 4800/3200 MHz unbuffered non-ECC (Single channel I/O) • Supports up to 32GB
Network • 4 x Intel® i225V/i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: 6 x LAN available by Nano-N305L6 Expansion Slot • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • 1 x M.2 2280 (for PCIe NVMe/SATA SSD) • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 1 x M.2 2280/2242 (for PCIe NVMe/SATA SSD) • 1 x SATA 6Gb/s • Supports dual storage drives Back Panel I/O • 4 x LAN ports • 1 x HDMI® 2.0 port • 2 x USB 2.0 ports • 1 x DC-In Power Connecter
Other I/O • 2 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 2 x RS232/RS485 COM port (Front) • 2 x USB 2.0 Headers System BIOS • AMI® BIOS • TPM 2.0
Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 3A~5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT Applications • High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -30 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Celeron® J6412 2.00/2.60GHz 4Core 4Threads 1.5M 10W • Intel® Celeron® N6211 1.20/3.00GHz 2Core 2Threads 1.5M 6.5W • Intel® Celeron® J6413 1.80/3.00GHz 4Core 4Threads 1.5M 10W • Intel® Pentium® N6415 1.20/3.00GHz 4Core 4Threads 1.5M 6.5W • Intel® Pentium® J6426 2.00/3.00GHz 4Core 4Threads 1.5M 10W Chipset • Intel® Elkhart Lake platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.0, up to 4K @60Hz Memory • 1 x DDR4 SO-DIMM (Optional DDR5) • 4800/3200 MHz unbuffered non-ECC (Single channel I/O) • Supports up to 32GB
Network • 4 x Intel® i225V/i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • Wake on LAN, PXE boot (Diskless) supported • Option: 6 x LAN available by Nano-N305L6 Expansion Slot • 1 x MiniPCIe Full Size slot (for 4G Modem pair with SIM) • 1 x M.2 2280 (for PCIe NVMe/SATA SSD) • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 1 x M.2 2280/2242 (for PCIe NVMe/SATA SSD) • 1 x SATA 6Gb/s • Supports dual storage drives Back Panel I/O • 4 x LAN ports • 1 x HDMI® 2.0 port • 2 x USB 2.0 ports • 1 x DC-In Power Connecter
Other I/O • 2 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 2 x RS232/RS485 COM port (Front) • 2 x USB 2.0 Headers System BIOS • AMI® BIOS • TPM 2.0
Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 3A~5A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT Applications • High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -30 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
