 Think Big. Go Small. Eco-Smart Computing

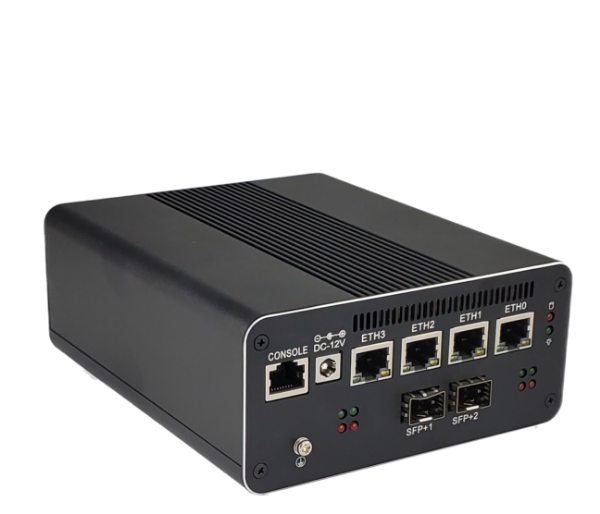

Nano-U10L4-SFP+

Comet Lake-u Core i5/i7 Mini PC, Intel® UHD Graphics, Dual 4K HDMI+DP, 4 or 8 x 2.5G LAN w/ 10G SFP+ Option
Featured Highlights
10th Gen. Intel® Core™ i5-10210u Processor
Intel® Comet Lake-u Platform (SOC)
Intel® 10th Gen. UHD Graphics, HDMI+DP Dual Display
2 DDR4 SO-DIMM for up to 64GB 2-Channel Memory
M.2 SSD/NVMe
4 x 2.5G LAN + (Optional 2 x 10G SFP+) / 8 x 2.5G LAN
4 USB 3.0, COM
Realtek® ALC662 5.1 Audio
Power Supply: DC12-24V Wide Ranger Power-In put, supports Car appliance
OS Support: Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
Applications: High Speed Router, Firewall, VPN, Network Security, etc


SKU: Nano-U10L4-SFP+
Product specifications
Processor

• 10th Generation Comet Lake u-series Mobile processor
• Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Optional Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W
• Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 15W

• Option:
• 12th Gen: i7-1260P, i7-1265u,  i5-1240P, i5-1235u, i3-1220P, i3-1215u, 8505u
• 13th Gen: i7-1355u, i5.1335u, i3-1315u, U300E

Chipset

• Intel® Comet Lake-u Platform (SOC)

Graphics

• Intel®10th Gen. UHD 4K Graphics
• Supports 2 Displays
• 1 x DP, 8K 60Hz Graphics port
• 1 x HDMI® 2.0, 4K 60Hz Graphics port

Memory

•  2 x DDR4 SO-DIMM
•  2933/2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
•  Supports up to 64GB

Network

• 4 x Intel® I266-V 2.5G (10/100/1000/2500 Mb/s) LAN
• Option: 2 x Intel 82599ES 10G (10/100/1000/10000 Mb/s) SFP+ (in addition to the 4 x 2.5G LAN)
• Option: 8 x Intel® I266-V 2.5G (10/100/1000/2500 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2280 (for SATA-6Gb/s PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 1 x 3.5mm Combo+ Audio jack (Supports S/PDIF)

Back Panel I/O

• 4-8 x LAN ports
• 1 x RJ45 Serial Console Port
• 1 x DC-In 2.5mm Power Connector (DC12-24V)

Other I/O

• 4 x USB 3.0 ports (Front)
• 1 x DP 1.4 port
• 1 x 3.5mm Combo+ Audio jack (Side)

System BIOS

• AMI® UEFI / Legacy BIOS

Chassis

• Nano Chassis
• Dimensions: 6.1"(W) x 4.5"(D) x 2.36"(H), Weight: 3 lb. (Net) 8 lb. (gross with packaging)
• Color: Black as default color, option: Other custom color available with MOQ required for Project customers
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 3A or DC19V 4.74A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT

Application

• High Speed Router, Firewall, VPN, Network Security, etc

Environment

• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance

*
*
*
