N4200AEL2

Intel® Pentium® N4200, HD 505 Graphics HDMI+2 DP, 2 LAN+SIM+2 SATA, 6 COM+PCIe x1
Featured Highlights
Intel® Celeron®/Pentium®/Atom®-E Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD 505 Graphics, 4K Resolution, HDMI+2 DP+LVDS
2 DDR3L SO-DIMM for up to 16GB Memory
PCI Express 3.0 x1, MiniPCIe
2 Intel® Gigabit LAN, M.2 WiFi+SIM
4 USB 3.0, 5 USB 2.0
2 SATA-6Gb/s, mSATA-6Gb/s
5.1 ALC662 Audio Sound
Power Supply: DC12-24V/ATX Input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

SKU: N4200AEL2
Product specifications
Processor
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics

• Intel® HD 505 Graphics, 4K Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 2 x DP, 4K 60Hz Graphics ports
• 1 x LVDS header

Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
Network

• 2 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• 1 x SIM socket (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x1 slot
• 1 x MiniPCIe full size slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
• Optional eMMC Flash Internal Storage

Audio

• Realtek® ALC662 6-channel (5.1)
• Support for S/PDIF Out
• 2 x 3.5mm Analog Stereo Audio jacks

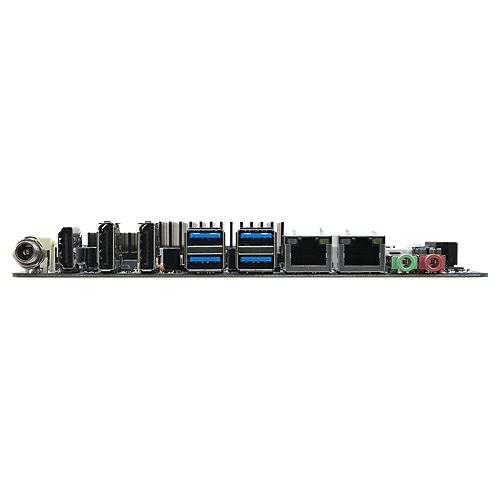

Back Panel I/O

• 4 x USB 3.0 ports
• 5 x USB 2.0 ports
• 6 x Serial COM ports (RS-485, 5 RS-232)
• 1 x HDMI® port
• 2 x DP
• 2 x LAN ports
• 1 x S/PDIF port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Function

• 1 x 4in/4out GPIO header
• 1 x TPM header

System BIOS
• Watchdog supported

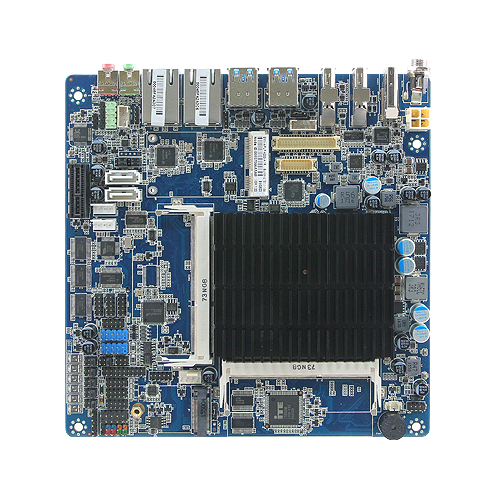

Systemboard
Small Form Factor
Back I/O

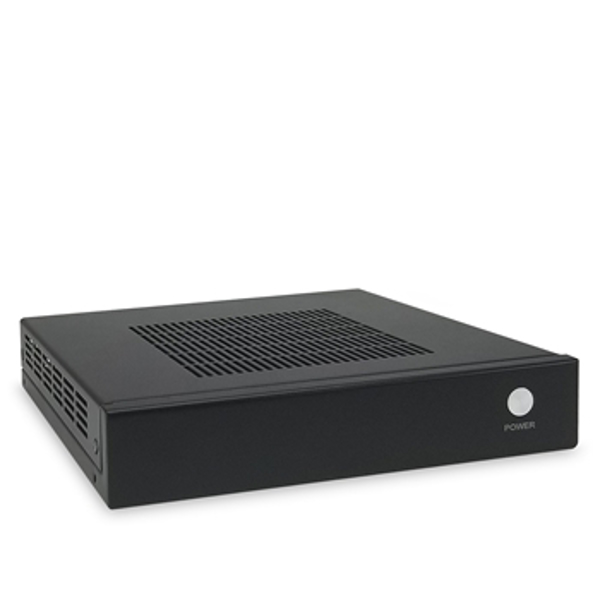

Chassis

300R Series Fanless Aluminum Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Optional: Slim 10a Series 1.4" Slim
• Optional: 138D 7"x7"x1.38H

Power Supply

• Power: DC12V or DC19-24V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
