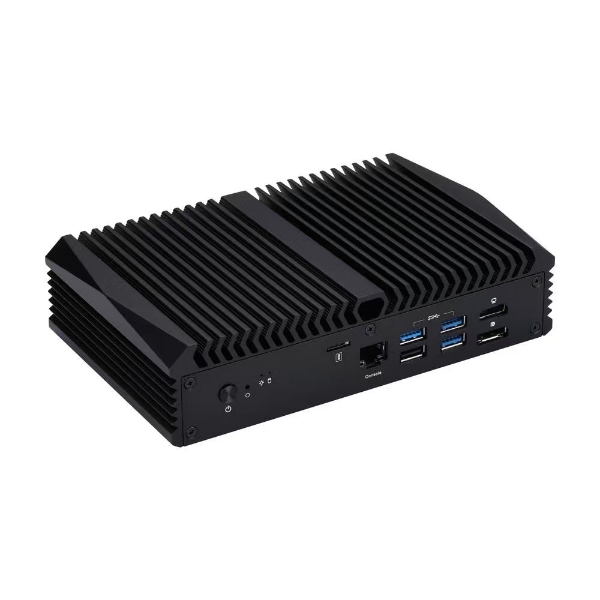

N7000L4T2

Alder Lake-N / Twin Lake-N, Intel UHD Graphics, 4 x 2.5GbE + 2 x 10GbE LAN, DDR5 up to 48GB, 5 x USB + Type-C, HDMI + DP + RJ45 Console Port, M.2 NVMe + optional 4G/5G.

Featured Highlights
	Intel® Alder Lake-N / Twin Lake-N Processor
	Intel® Alder Lake-N / Twin Lake Platform (SOC)
	Intel® UHD Graphics, HDMI + DP + Type-C DisplayPort
	1 x DDR5 SO-DIMM, supports up to 48GB Memory
	1 x M.2 2280 NVMe SSD, PCIe 3.0 x1
	2 x 10GbE + 4 x 2.5GbE LAN
	5 x USB + Type-C, RJ45 RS-232 Serial Console Port
	M.2 B-Key for optional 4G/5G modem + Nano SIM slot
	DC12V / 5A Power Adapter, 2.5mm DC-in
	OS Support: Linux, Windows
	Applications: Network Security, High-Speed Router, Firewall, VPN, SD-WAN, Edge Gateway

SKU: N7000L4T2

Specifications
Request for Info

Product specifications

Processor • Intel® Alder Lake-N Processor • Intel® Twin Lake-N Processor Chipset • Intel® Alder Lake-N / Twin Lake-N platform (SOC)
Graphics • Intel® UHD Graphics • 1 x HDMI • 1 x DP • 1 x Type-C with DisplayPort support Memory • 1 x DDR5 SO-DIMM socket • Supports up to 48GB
Network • 2 x Marvell AQC113 10GbE RJ45 LAN (10GbE/5GbE/2.5GbE/1GbE) • 4 x Intel® I226-V 2.5GbE RJ45 LAN • Total 6 LAN ports Expansion Slot • 1 x M.2 B-Key 3042/3052 for optional 4G/5G modem • 1 x M.2 for optional Wi-Fi via converter card • 1 x Nano SIM slot
Storage • 1 x M.2 2280 M-Key for NVMe SSD • 1 x PCIe 3.0 Audio • HD Audio
Back Panel I/O • 2 x 10GbE RJ45 LAN • 4 x 2.5GbE RJ45 LAN • 1 x USB 2.0 port • 1 x Type-C port (USB 3.0 + DisplayPort) • 1 x DC-In Other I/O • 3 x USB 3.0 ports • 1 x USB 2.0 port • 1 x RJ45 RS-232 Serial Console Port • 1 x Nano SIM slot • 1 x HDMI • 1 x DisplayPort
Function • Watchdog support • Auto-start jumper • CMOS clear jumper Chassis • Fanless aluminum alloy enclosure • Dimensions: 196 x 122 x 47 mm • Weight: 1.23 kg • Supports VESA mount brackets
Power Supply • DC12V / 5A Power Adapter • 5.5mm / 2.5mm DC-In connector OS Support • UEFI Windows, UEFI Linux
Applications • Network Security, High-Speed Router, Firewall, VPN, SD-WAN, Edge Gateway Environment • Operating Temperature: 0°C to 50°C • Non-Operating Temperature: -20°C to 80°C • Relative Humidity: 10% to 90%

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Alder Lake-N Processor • Intel® Twin Lake-N Processor Chipset • Intel® Alder Lake-N / Twin Lake-N platform (SOC)
Graphics • Intel® UHD Graphics • 1 x HDMI • 1 x DP • 1 x Type-C with DisplayPort support Memory • 1 x DDR5 SO-DIMM socket • Supports up to 48GB
Network • 2 x Marvell AQC113 10GbE RJ45 LAN (10GbE/5GbE/2.5GbE/1GbE) • 4 x Intel® I226-V 2.5GbE RJ45 LAN • Total 6 LAN ports Expansion Slot • 1 x M.2 B-Key 3042/3052 for optional 4G/5G modem • 1 x M.2 for optional Wi-Fi via converter card • 1 x Nano SIM slot
Storage • 1 x M.2 2280 M-Key for NVMe SSD • 1 x PCIe 3.0 Audio • HD Audio
Back Panel I/O • 2 x 10GbE RJ45 LAN • 4 x 2.5GbE RJ45 LAN • 1 x USB 2.0 port • 1 x Type-C port (USB 3.0 + DisplayPort) • 1 x DC-In Other I/O • 3 x USB 3.0 ports • 1 x USB 2.0 port • 1 x RJ45 RS-232 Serial Console Port • 1 x Nano SIM slot • 1 x HDMI • 1 x DisplayPort
Function • Watchdog support • Auto-start jumper • CMOS clear jumper Chassis • Fanless aluminum alloy enclosure • Dimensions: 196 x 122 x 47 mm • Weight: 1.23 kg • Supports VESA mount brackets
Power Supply • DC12V / 5A Power Adapter • 5.5mm / 2.5mm DC-In connector OS Support • UEFI Windows, UEFI Linux
Applications • Network Security, High-Speed Router, Firewall, VPN, SD-WAN, Edge Gateway Environment • Operating Temperature: 0°C to 50°C • Non-Operating Temperature: -20°C to 80°C • Relative Humidity: 10% to 90%
