H310CA

6th-9th Gen Socket-S, 2LAN+2COM 3 M.2, DP+HDMI, Small Form Factor
Featured Highlights
Intel® 6th/7th/8th/9th Gen. Socket LGA1151 Core™ Series Processor
Intel® H310C Express Chipset
Intel® UHD 630 Graphics, DP+HDMI
2 DDR4 SO-DIMM for up to 64GB Memory
M.2 SSD/NVMe
Gigabit LAN, M.2 WiFi+M.2 4G
4 USB 3.0, 4 USB 2.0
5.1 ALC662 Audio Sound
DC19V 4.7A 90W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Windows 11/10/8/7, IoT, Linux
Applications: Set Top Box, etc.

SKU: H310CA
Product specifications
Processor

• Support 6/7/8/9th Gen Intel® Core™ i9, i7, i5, i3, Pentium® ,Celeron® Processor LGA1151 Socket-S (Support up to 65W)

Chipset
• Intel® H310C Express Chipset
Graphics

• Intel® UHD 630 4K Graphics (based on CPU)
• Support 2 Graphics ports
• 1 x DP 4K 60Hz Graphics port
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2

Memory

• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for 4G-LTE Module Pair with SIM Card)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for 4G-LTE Module Pair with SIM Card)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 2 x USB 3.0 ports
• 4 x USB 2.0 ports
• 1 x DP
• 1 x HDMI® port
• 1 x LAN port
• 1 x DC-In Power Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 2 x 3.5mm Audio jacks (Front)
• 1 x Parallel port (Side)
• 1 x Serial COM ports

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Systemboard
Small Form Factor
Back I/O
Chassis

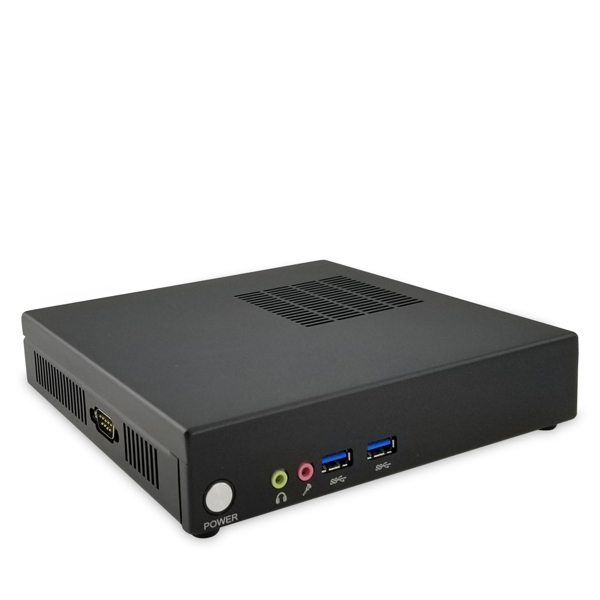

140E Mini Chassis (Sheet Metal)
• Dimensions: 7"(W) x 7"(D) x 1.4"(H) / Weight: 2.9 lb (Net) 6.5 lb (Gross).
• VESA, wall mount bracket supported
• Option: 140D 7"(W) x 7.2"(D) x 1.4"(H), 1000 Aluminum Form Factor
• Option: 600T Twin PC, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x Slot, 1U-1000S Low Cost Mini Server with PCIe 16x Slot, 1U-1000T 2-in-1U Twin
• Option: 236F3 Fanless

Power Supply
• Power: DC19V 4.7A 90W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Option: DC12V 80W - 200W Power Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 11/10/8/7, IoT, Linux

Application
• Set Top Box, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
