 ARM-based Product

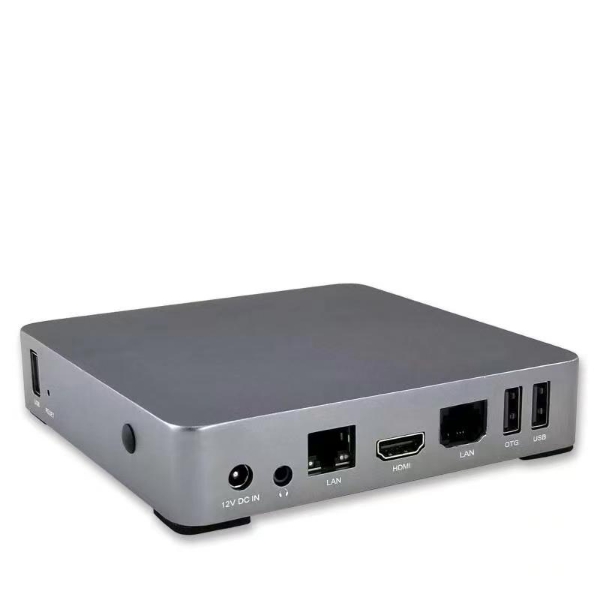

X9L2

4Core ARM® Cortex®-A17, HDMI 2.0 4K IPTV PC, Linux/Android 9.0/7.1/5.1, MiniPCIe Slot for 4G-LTE+SIM
Featured Highlights
ARM® Cortex®-A17 Processor
RK3288 Chipset (Embedded Longevity)
Quad-Core Mali™ T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1, HDMI 2.0
2GB/4GB DDR3 Memory
16GB-64G eMMC Storage
MiniPCIe
2 Gigabit LAN, 11ac WiFi+BT
3 USB 2.0
Everest ES8323S Audio chip
DC12V 2A 24W or higher wattage Power Adapter (UL/CE/FCC Certified)
OS Support: Android 4.4, 5.1, 7.1, 9.0, Linux
Applications: Set Top Box, Digital Signage, Network Security, IPTV PC, etc.


SKU: X9L2
Product specifications
Processor

• ARM® Cortex®-A17 4Core up to 2.00GHz

Chipset

• RK3288
• RK3288W

Graphics

• Quad-Core Mali™ T764 3D GPU Support OpenGL ES1.1/2.0/3.0, OpenVG1.1
• Support 1 Graphics port
• 1 x HDMI® 2.0, 4K 30Hz Graphics port

Memory

• 2GB DDR3 (Option: 4GB) (built-in, non-changeable)

Network

• 2 x RJ45 Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM socket (for 3G/4G-LTE option)
• 802.11n/g 2.4GHz WiFi
• Optional 802.11ac/n/g Dual-Band Wi-Fi (2.4GHz / 5.0GHz)
• Bluetooth 4.0

Expansion Slot

• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)

Storage

• 16GB-64GB eMMC Flash Internal Storage
• 1 x TF (MicroSD) reader, supports 128G+ MicroSD/TF Card

Audio

• Everest ES8323S Audio chip
• Optional Optical Port for S/PDIF Out
• 1 x 3.5mm Analog Stereo Audio jack
• Optinal Amplifier for Analog Audio out

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x HDMI® 2.0 port
• 2 x LAN port
• 1 x Optional S/PDIF port
• 1 x 3.5mm Audio jack
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x TF reader, supports 128G+ MicroSD Card (Side)
• 1 x USB 2.0 OTG port (Side)

System BIOS
• Watchdog supported
Systemboard
Small Form Factor
Back I/O
Chassis

Nano-LX series Fanless Enclosure
• Dimensions: 5.11"(W) x 5.00"(D) x 1.02"(H), Weight: 7 lb.
• Color: Black

Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support

• Android 4.4, 5.1, 7.1, (only with RK3288 CPU), Linux
• Android 7.1, 9.0 (only with RK3288W), Linux

Application

• Set Top Box, Digital Signage, Network Sercurity, IPTV, Traffic Controller, etc.
• Embedded-Longevity

Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
