Think Big. Go Small. Eco-Smart Computing

Sorry - this product is no longer available

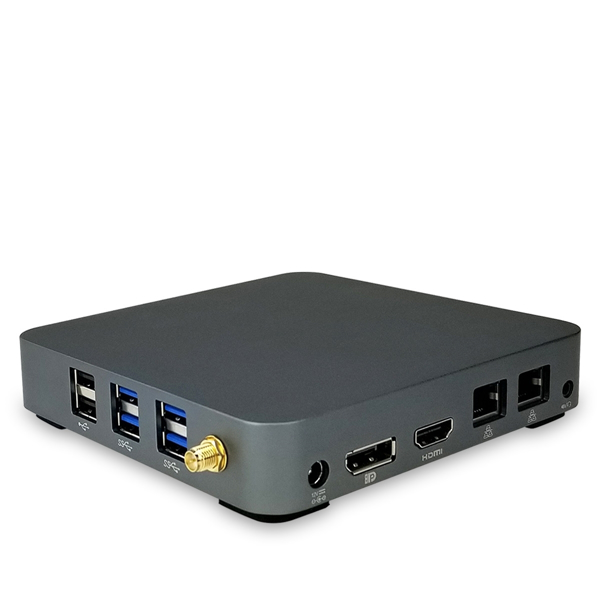

Nano-N3350L2

Fanless Embedded, Apollo Lake Celeron®, 2LAN+2COM HDMI+DP, eMMC+M.2 SSD + TF
Featured Highlights
Intel® Celeron®/Pentium® Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD500 4K Graphics, HDMI+DP+LVDS
2GB/4GB/8GB DDR3L Memory
2 Gigabit LAN, 11ac WiFi+BT
6 USB 3.0 / USB 2.0 ports
M.2 NVMe/SATA SSD, eMMC Storage
5.1 ALC269 Audio Sound
Power Supply: DC12V Input
OS Support: Windows 10, IoT, Linux, Android
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Traffic Controller, IoT/Edge System, etc.

SKU: Nano-N3350L2
Product specifications
Processor
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics

• Intel® HD 500 Graphics, 4K Resolution
• Option: Intel® HD 505 Graphics, 4K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP, 4K 60Hz Graphics port
• 1 x LVDS header

Memory

• 2GB/4GB/8GB DDR3L (built-in, non-changeable)
• 1600/1333MHz unbuffered non-ECC

Network
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0
Expansion Slot

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
• 32GB/64GB/128GB eMMC Flash Internal Storage
• Optional 1 x TF (MicroSD) reader

Audio

• Realtek® ALC269 3-channel (2.1)
• 1 x 3.5mm Stereo Audio Combo jack

Back Panel I/O

• 1 x HDMI® port
• 1 x DP
• 2 x LAN ports
• 1 x 3.5mm Audio Combo jack
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 4 x USB 3.0 ports (Side)
• 2 x USB 2.0 ports (Side)
• 2 x Serial COM ports (Side)
• Optional 1 x TF (MicroSD) reader

Internal I/O

• 1 x LVDS header
• 1 x 4in/4out GPIO header

System BIOS
• AMI® UEFI 64MBit BIOS
• Watchdog supported
Chassis

Nano-Size Fanless Aluminum Chassis
• Dimensions: 1"(H) x 5"(W) x 5.43"(D), Weight: 1.35 lb (Plastic version), 1.65 lb (Aluminum version), 5 lb(gross with packaging)
• Color: Silver Grey as default color, custom colors available with special order
• Supports VESA, wall mount bracket

Power Supply

• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows 10, IoT, Linux, Android
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Traffic Controller, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
